Cfly Faith2 PRO 4K Drone 3-Axis Gimbal 360° Rotating Radar Obstacle Avoidance 6KM FPV GPS 5G Wifi Quadcopter

1. Aircraft
Model Number: Cfly Faith2 PRO 3-Axis Gimbal 4K Drone

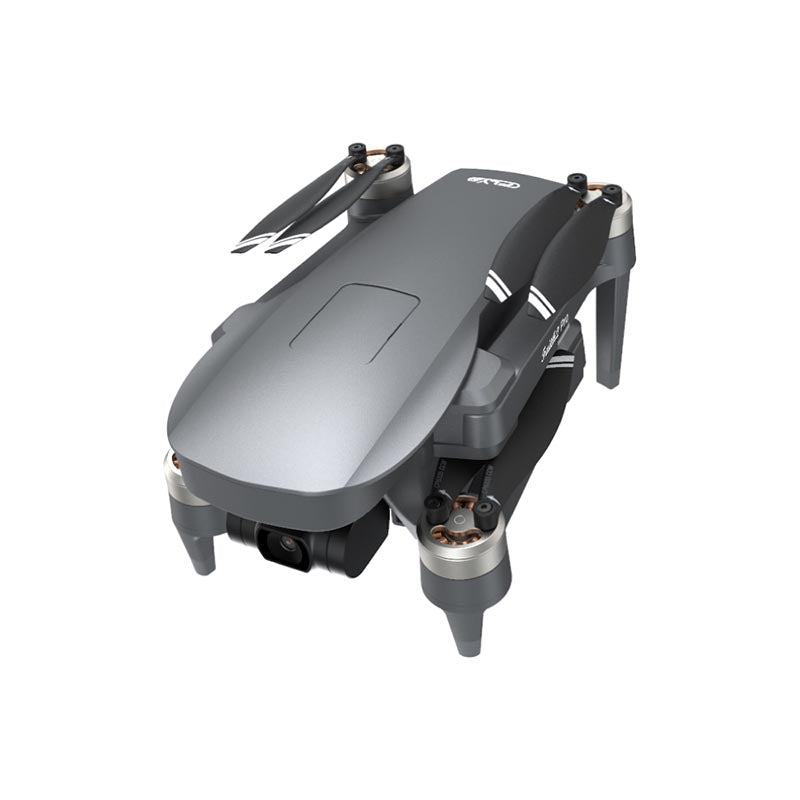

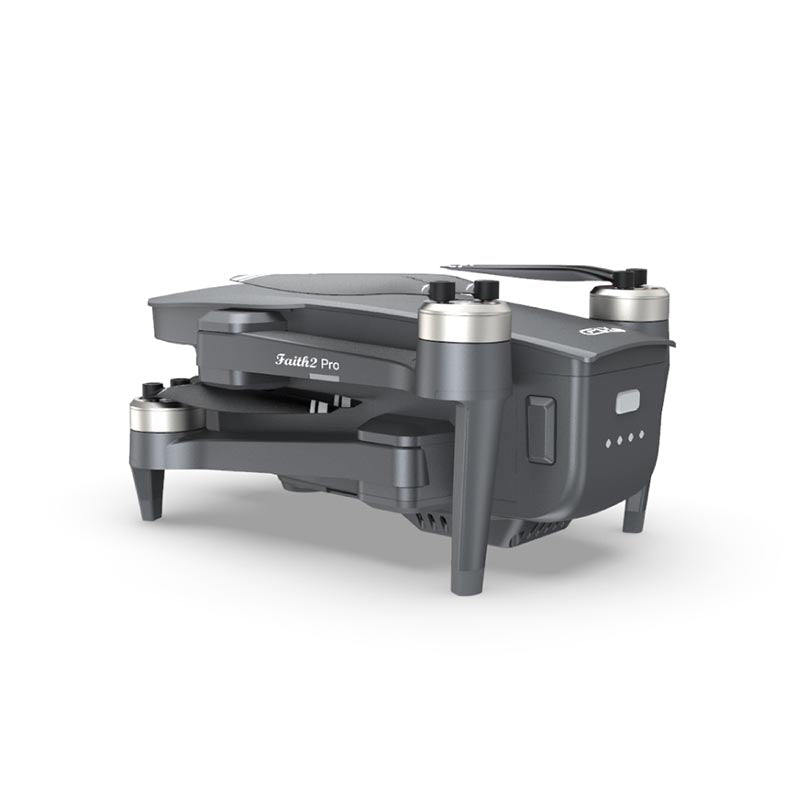

Cfly Faith2 PRO Dimensions (including obstacle avoidance module, excluding paddles): unfolded: length 191 × width 262 × height 107 m / folded: length 179 × width 102 × height 107 mm
Diagonal wheelbase: 280mm
Cfly Faith2 PRO Weight (including battery, paddle and obstacle avoidance module): 562 g (including laser obstacle avoidance module) Maximum descent speed: 3m/s (sports mode), 2m/s (normal mode), 3m/s (return mode)
Maximum horizontal flight speed 14m/s (sport mode), 10m/s (normal mode), 12m/s (return mode)
Cfly Faith2 PRO Maximum flight altitude: 4000 m
Maximum flight time: 32 minutes
Working environment temperature 0°C to 40°C
Satellite positioning module: GPS/GLONASS dual mode
Hovering accuracy: vertical: +/- 0.5 meters, ± 0.2 m (when optical flow positioning and ultrasonic height fix work normally), horizontal: +/- 1.5 meters, ± 0.3 m (when optical flow positioning works normally)
Flight altitude: default 120 meters, maximum 800 meters (app settings must be changed manually)

2. Optical flow localization system
Cfly Faith2 PRO with Optical flow positioning system: yes
Use environment: rich texture on the surface, sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment)
Speed measurement range: flight speed ≤ 1.5m/s (height 2 meters, sufficient light)
Effective height 0.5~6 meters

3. Ultrasonic height determination system
Cfly Faith2 PRO with Ultrasonic Altitude Fixing System: Yes
Use environment: Except for the water surface, or the ground of absorbing material (such as thick carpet)
Speed measurement range: flight speed ≤ 3m/s
Height measurement range: 0.2~4.5 meters

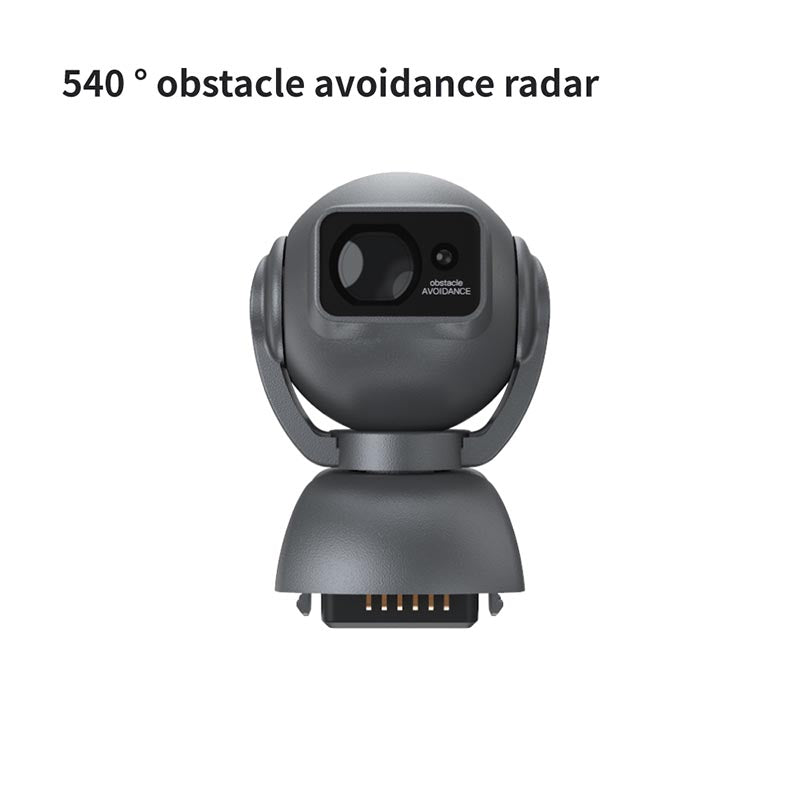

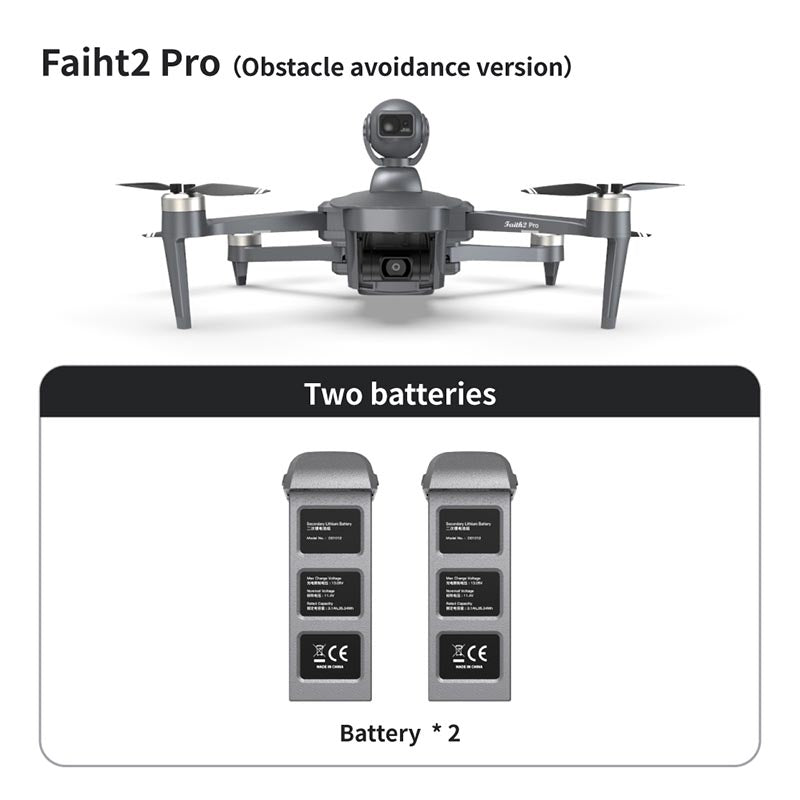

4. Obstacle avoidance system
Cfly Faith2 PRO Obstacle avoidance type: two-axis laser
Obstacle avoidance orientation: 540°, front, back, left, right, up
Maximum detection distance: 20m
Maximum obstacle avoidance speed: 10m/s

5. 3-axis gimbal
Cfly Faith2 PRO Stabilization method: brushless motor mechanical stabilization
Controllable rotation range: Pitch: -90° to 0° (default setting) -90° to 20° (extended setting)
Stabilization system: three-axis (pitch +35/-125°, roll ±35°, direction ±30°)

6. Camera specifications
Cfly Faith2 PRO Image sensor: Sony Sensor CMOS
Photo size: 5120*3840 (20 million)
Photo shooting mode: single shooting, continuous shooting, time-lapse shooting
Cfly Faith2 PRO Recording video maximum resolution: 3840×2160 (4K), 30 frames
Record video maximum stream: 50Mbps
Support file system: FAT32
Picture format: JPEG
Video format: MP4
Cfly Faith2 PRO Supported memory card type: MicroSD card, up to 128GB, Micro SD card with transmission speed up to UHS-I Speed Grade 3 rating
Working environment temperature: 0°C to 40°C

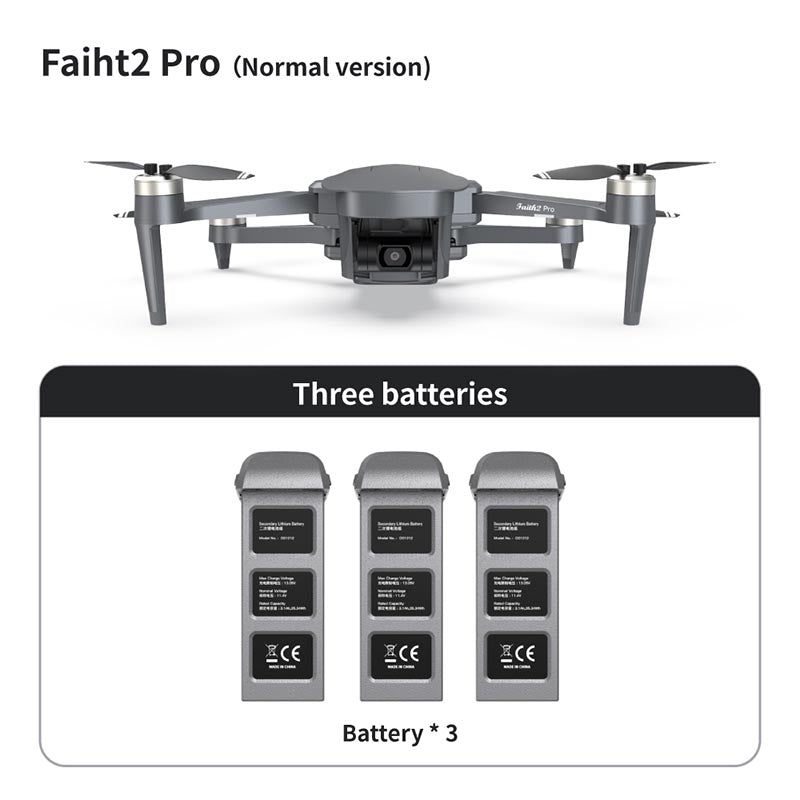

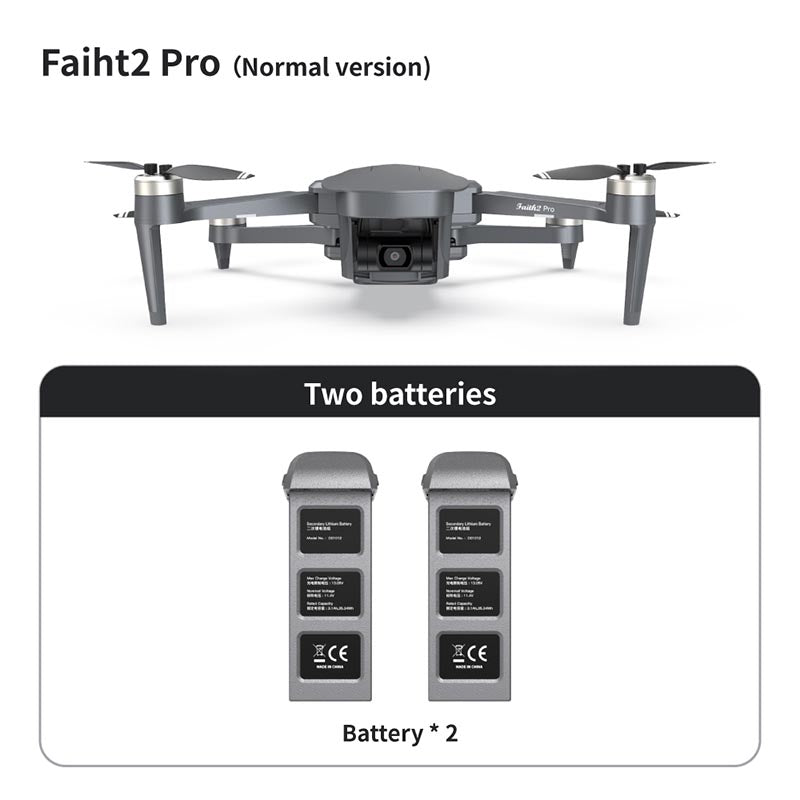

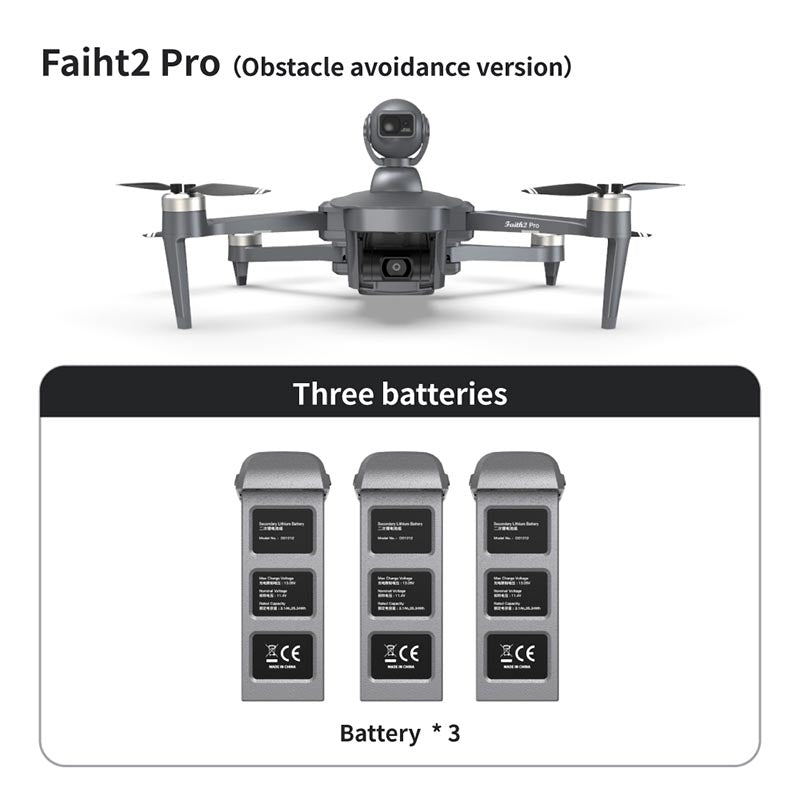

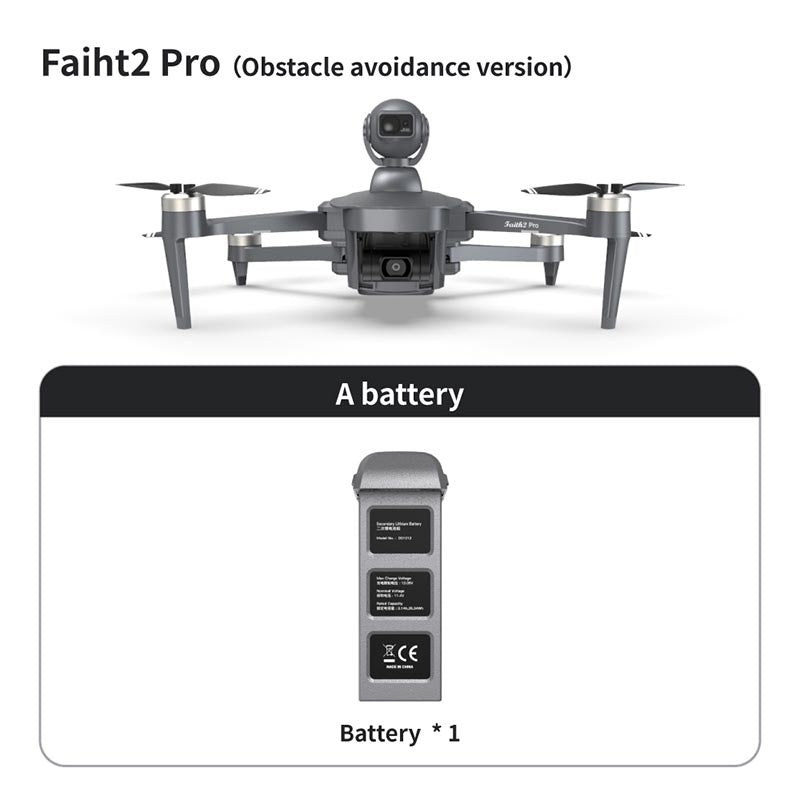

7. Flight battery
Capacity: 3100mAh
Voltage: 11.4V
Battery Type: LiPo 3S
Energy: 35.34Wh
Overall battery weight: about 200g
Working environment temperature: 0°C to 40°C
Maximum charging power: 35 W
Charging time: < 5h (use 5V 2A power adapter)

8. APP / image transmission
Mobile App: C-Fly 2
Cfly Faith2 PRO Real-time image transmission: maximum 1080P, resolution will be automatically switched according to usage conditions
Maximum image transmission distance: 6000m
Aerial shooting mode: gradual distance mode, orbit mode, soaring mode, spiral mode, comet mode, asteroid mode, vertical screen mode, live broadcast, panorama mode, time-lapse photography, visual follow mode
Mobile phone system version requirements: Andrio 6.0 or above, IOS 10.0 or above

9. Charger
Input: 5V 2A (recommended, the power of the power adapter determines the charging time)
Output: 4.35V 0.7A×3
Rated power 10W

10. Remote control
Working frequency: 2.4GHz
Cfly Faith2 PRO Maximum signal effective distance: 6000m
Equivalent isotropic radiated power: (EIRP) <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
Working current: 700mA
Mobile device holder: thickness 6.5-8.5 mm, maximum length 80 mm
Battery capacity: 2600mAh
Use time: 2.5h (different mobile phones will vary)
Battery voltage: 3.7 V
Battery Type: LiPo 18650
Battery capacity: 9.62 Wh
Working environment temperature: 0°C to 40°C
Charging method: USB
Maximum charging power: 10W
Charging time: < 2.5h (5V 2A power adapter is recommended, its power determines the charging time)
