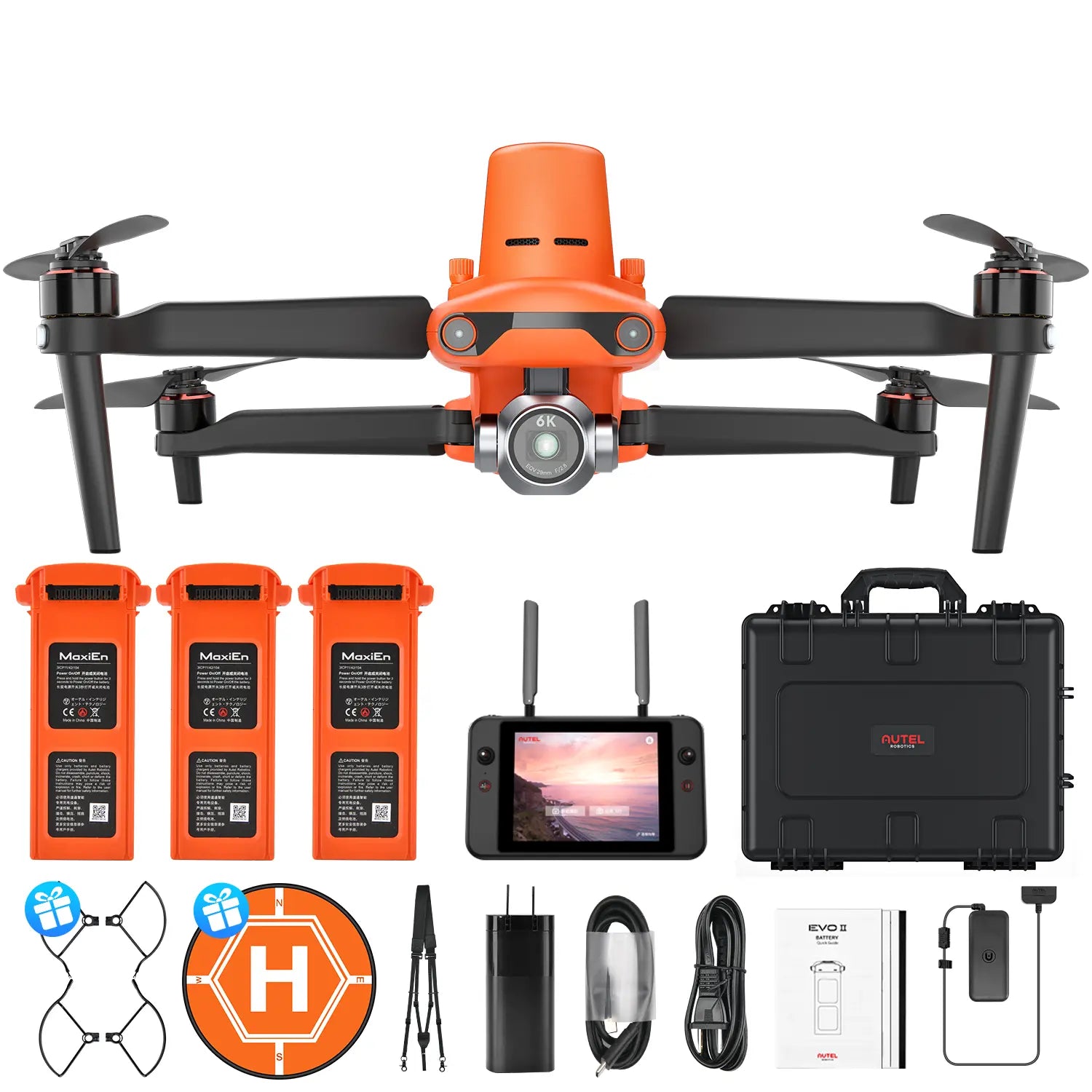

• Buy Now and Get a FREE Propeller Guard & Landing Pad
• Remote ID Updated
• Centimeter-Level Positioning
• Support PPK
• RTK Base Station
• NTRIP RTK Network
• Flight Profiles Save
• Rectangular or Polygon Missions
• 1" CMOS Sensor Gimbal Camera
• 360° Obstacle Avoidance
• 38 Minutes Flight Time
• 15km Video Transmission Range

[keyfeatures]

• Overview
• Specification
• Package
• Documents
• Faqs

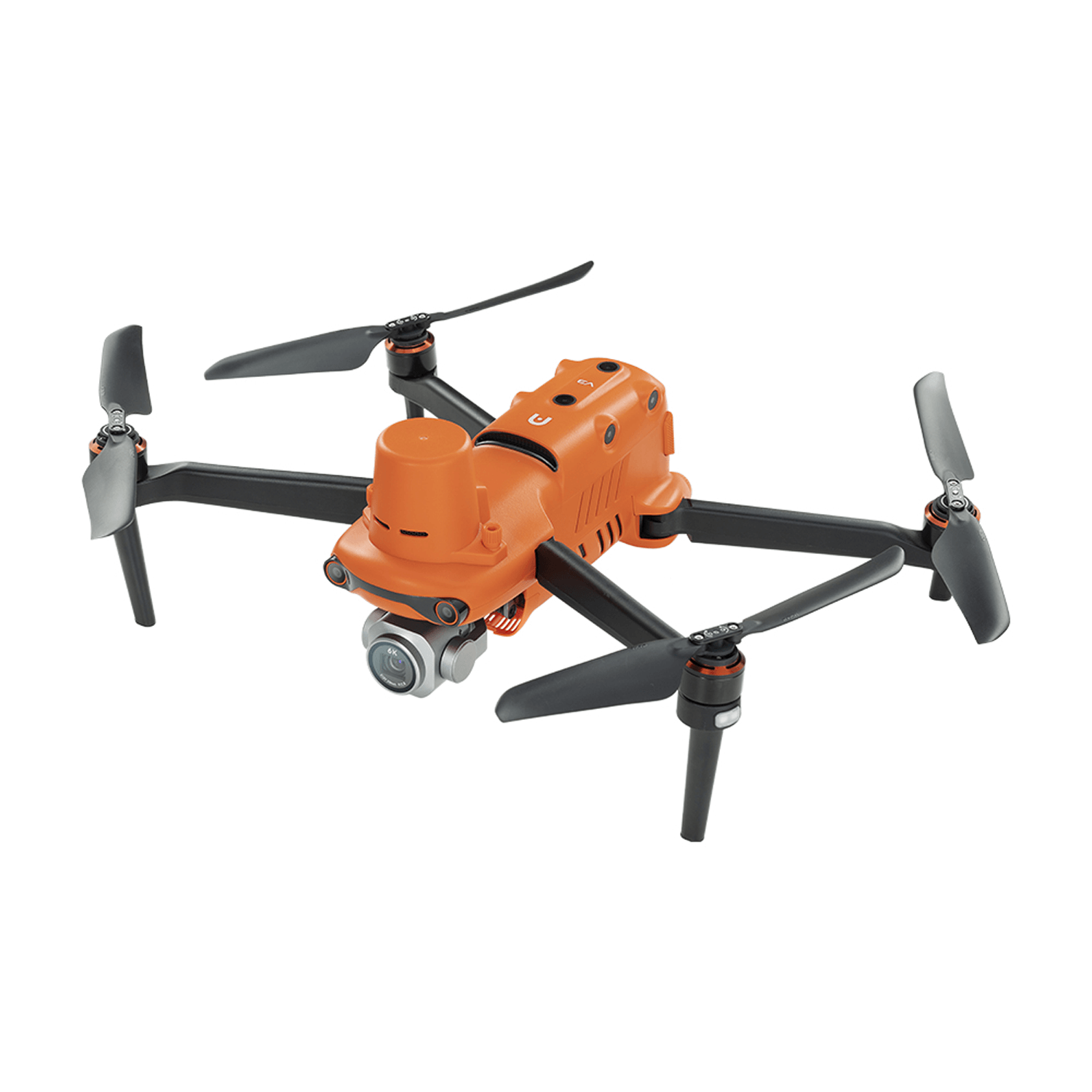

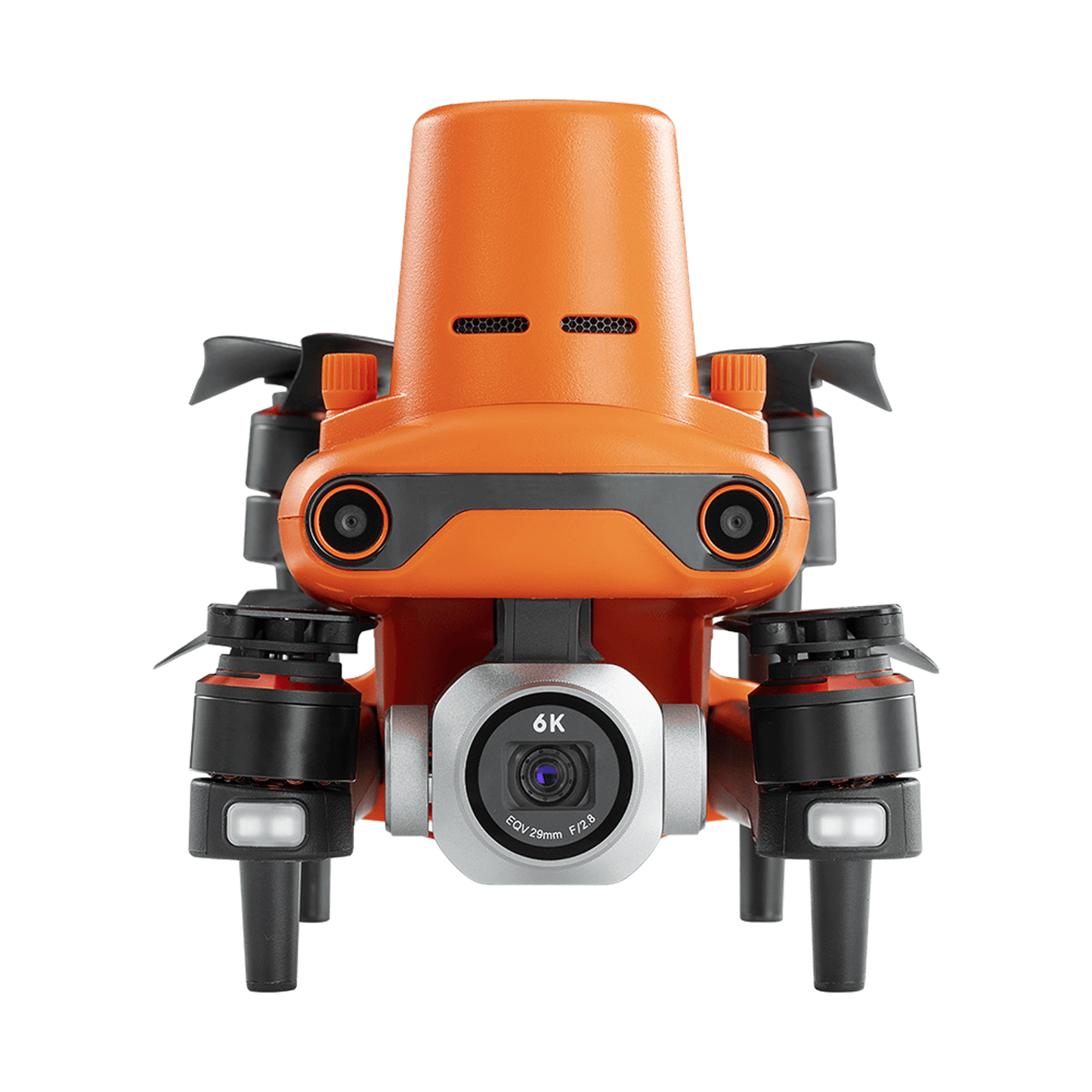

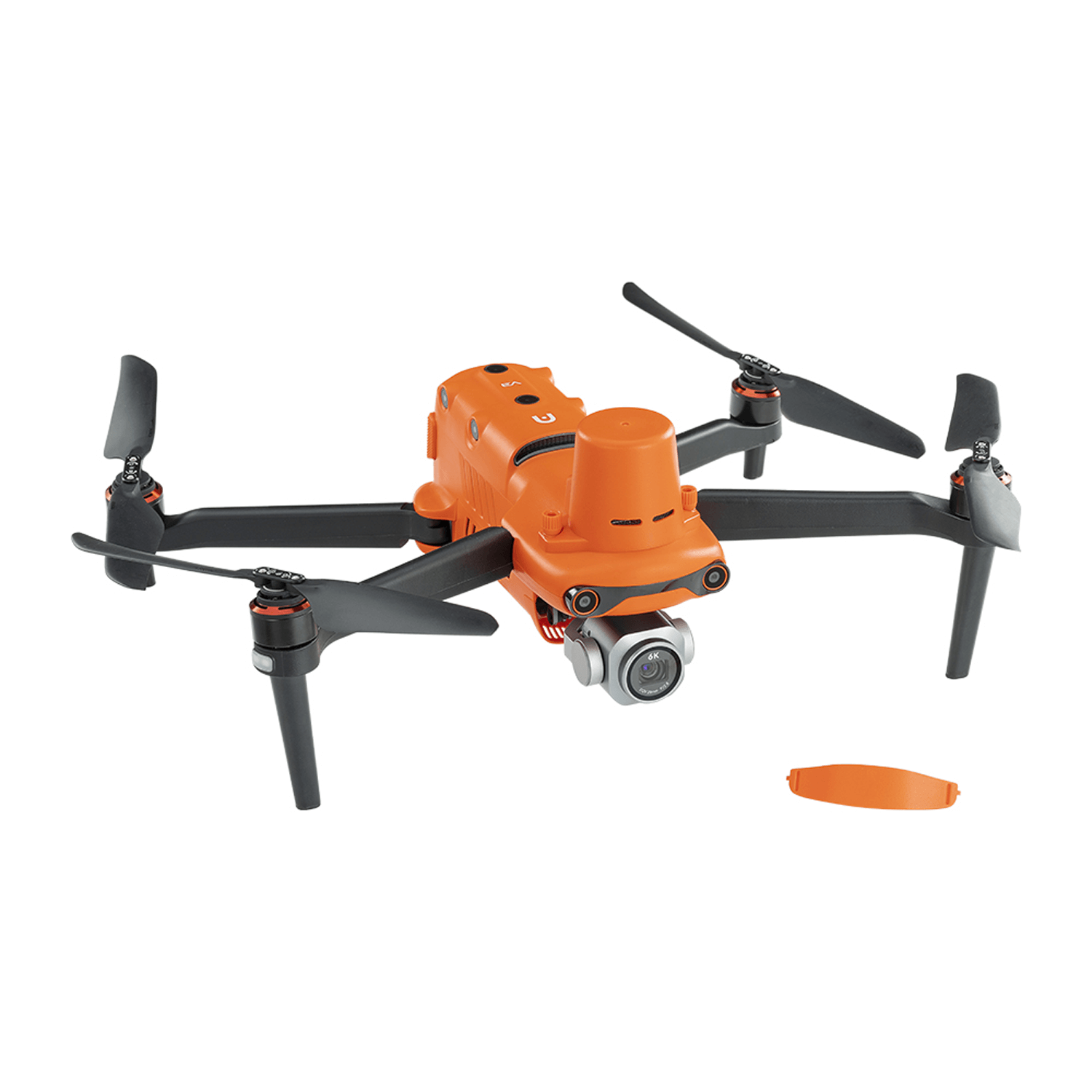

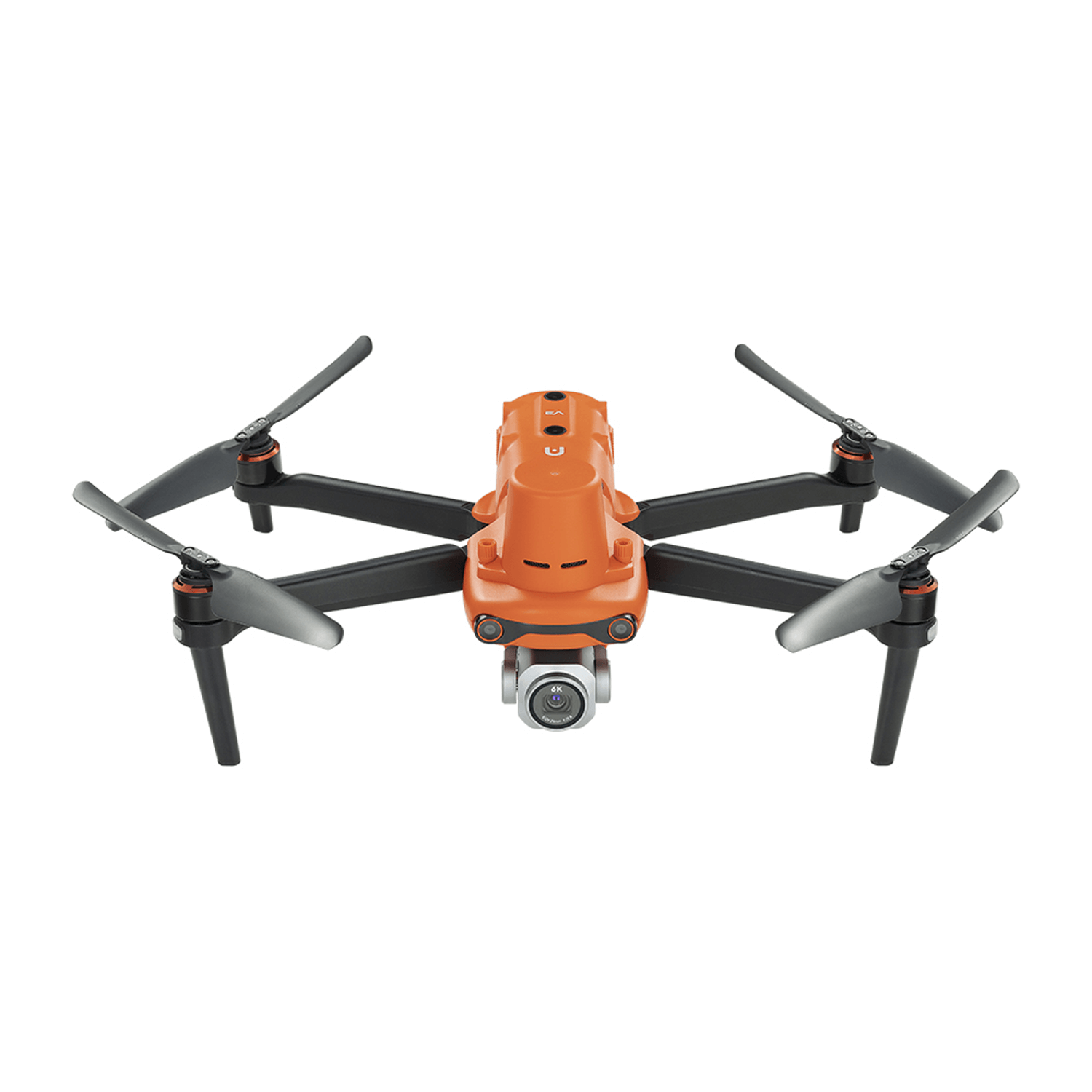

• Autel EVO II Pro RTK V3

  Autel EVO II Pro RTK V3 is an advanced drone model that offers an impressive range of features designed for surveying and mapping applications. This drone is equipped with advanced RTK technology that allows it to achieve highly accurate positioning with an accuracy of up to 1cm+1ppm (1.5cm+1ppm). This makes it ideal for use in a wide range of industries, including construction, agriculture, and mining.


  •

    1 inch
    CMOS Sensor
  •

    6K/30fps
    Videos
  •

    Surverying
    Mapping
  •

    Multi-NTRIP
    Profile Saving
  •

    360°
    Obstacle Avoidance
  •

    15km
    Transimission Range
  •

    38 Minutes
    Flight Time
  •

    7.9"
    Smart Controller V3
  •

    1 inch
    CMOS Sensor
  •

    6K/30fps
    Videos
  •

    Surverying
    Mapping
  •

    Multi-NTRIP
    Profile Saving
  •

    360°
    Obstacle Avoidance
  •

    15km
    Transimission Range
  •

    38 Minutes
    Flight Time
  •

    7.9"
    Smart Controller V3

  Centimeter-Level Positioning

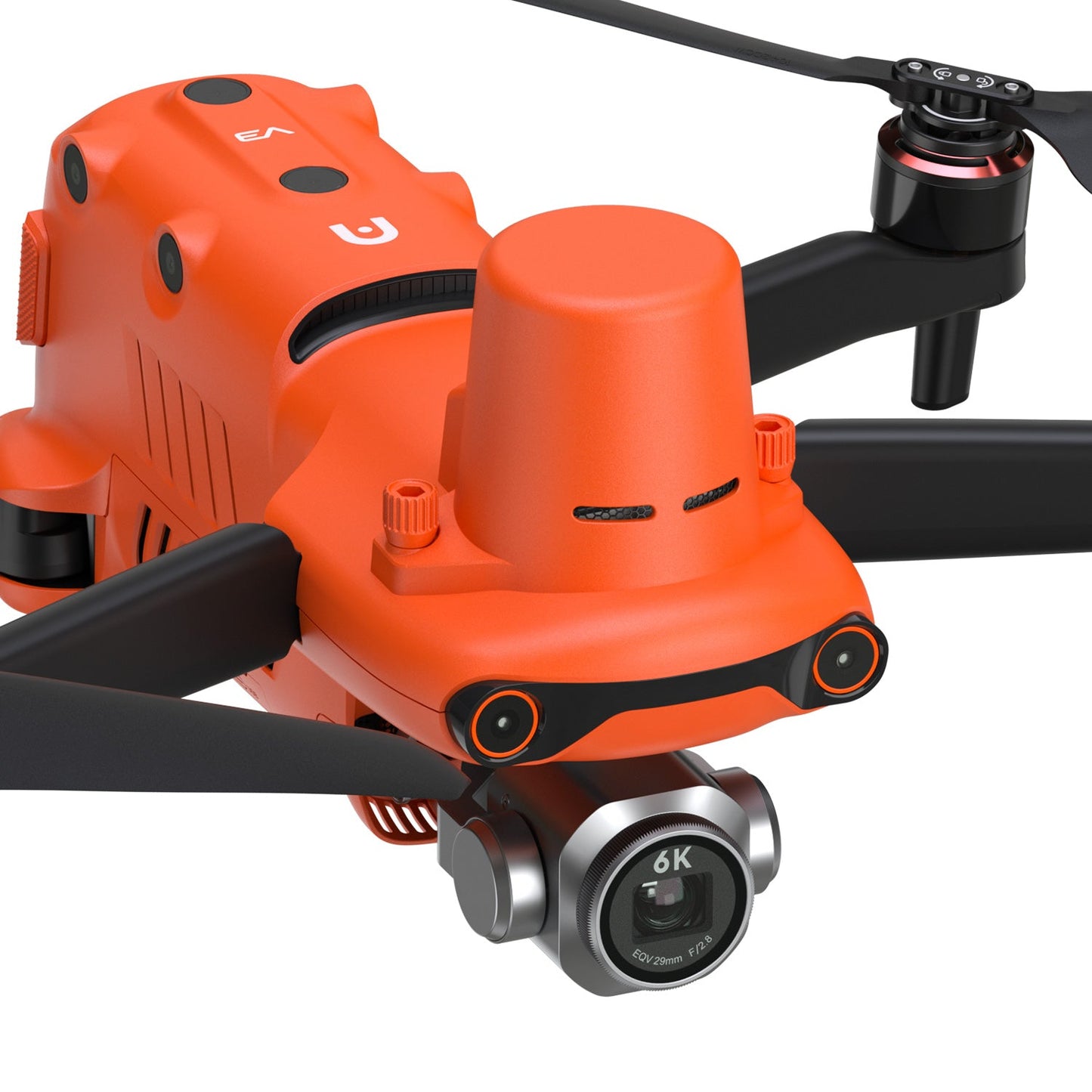

  Autel EVO II RTK Series V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.

  • •

    • RTK Horizontal Positioning Accuracy: 1cm+1ppm

  • •

    • RTK Vertical Positioning Accuracy: 1.5cm+1ppm

  • •

    • RTK Horizontal Positioning Accuracy: 1cm+1ppm

  • •

    • RTK Vertical Positioning Accuracy: 1.5cm+1ppm



  Autel EVO II RTK V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.



  • • No GCP Required

      EVO II RTK Series V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.

    •

  • • 3rd Party Base Station Support

      EVO II RTK Series V3 supports all NTRIP-compatible base stations.

    •

  • • No GCP Required

      EVO II RTK Series V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.

    •

  • • 3rd Party Base Station Support

      EVO II RTK Series V3 supports all NTRIP-compatible base stations.

    •

  Autel Explorer For Mapping

  • • •

      • Multi-NTRIP Profile Saving

        For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

    • •

      • Photo Replication

        For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.

    • •

      • Multi-Battery Missions

        The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.

  •
  • • •
      • Multi-NTRIP Profile Saving

        For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

    • •
      • Photo Replication

        For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.

    • •
      • Multi-Battery Missions

        The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.

  •

  Advanced Feature Sets

  •
    Create Rectangular or Polygon Missions
  •
    Supports Double grid mapping for additional angle customizable
  •
    Have complete manual control over camera settings
  •
    Non stop turning on corners saves time and battery life
  •
    Customizable course headings to meet orientation requirements

  Autel Mapper - Reveal The Full Picture.

  • Real-time 2D

    During flight, the remote controller streams real-time images to Autel Mapper for real-time 2D stitching. Advanced image processing algorithms are used to generate high-precision 2D orthophoto images in real time, providing the on-site operators with a basis for adjusting the workflow in a timely manner.

  • Real-time 2D

    During flight, the remote controller streams real-time images to Autel Mapper for real-time 2D stitching. Advanced image processing algorithms are used to generate high-precision 2D orthophoto images in real time, providing the on-site operators with a basis for adjusting the workflow in a timely manner.

  • Swift and Accurate

    Autel's AI deep-learning algorithms make Autel Mapper the one of the quickest map processing software in the industry, providing highly accurate 2D and 3D reconstruction, even for small objects - for unbeatable models and maps.



  • 3D Reconstruction

    Autel Mapper combines traditional and deep learning algorithms to greatly improve the completeness of 3D models. Reconstruction quality can be selected from three options: high, medium, and low. It can reconstruct small objects completely and meet the needs of various industries.



  • 2D Reconstruction

    Autel's deep learning technology enables autonomous adaptation of AI algorithms in different scenarios, meeting the 1:500 precision requirement in the surveying and mapping industry without GCPs.

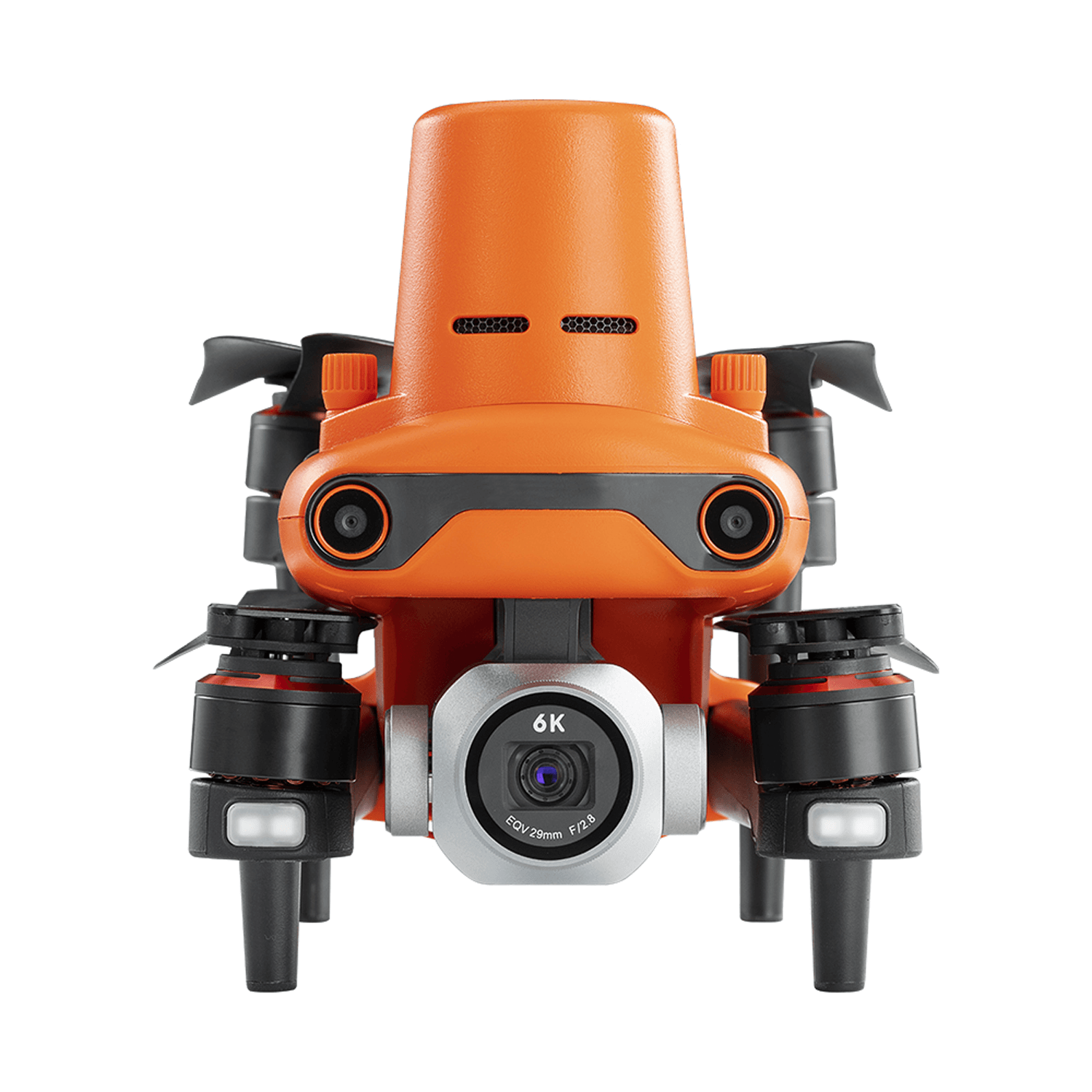

  Capture Every Detail-EVO II RTK V3

  EVO II Pro RTK V3 takes aerial imaging to the next level with its advanced high dynamic range (HDR) capabilities and superior low-light performance. Whether you're flying during the day or at dusk, this drone ensures exceptional image clarity, allowing users to capture intricate details with remarkable precision.

  •

  • • 1-Inch Ultra-Sensitive Sensor

      Autel EVO II Pro RTK V3 comes with a NEW updated 1-inch 6K CMOS image sensor with a maximum of 20 megapixels. Thanks to the ultra-sensitive algorithm, you can still shoot clean, detailed, low-noise data sets under twilight or night conditions.

    • f/2.8 ~ f/11 Adjustable Aperture

      Adapt to lighting changes by adjusting the lens aperture size, giving the pilot more shutter speed control.

  •

  • • 1-Inch Ultra-Sensitive Sensor

      Autel EVO II Pro RTK V3 comes with a NEW updated 1-inch 6K CMOS image sensor with a maximum of 20 megapixels. Thanks to the ultra-sensitive algorithm, you can still shoot clean, detailed, low-noise data sets under twilight or night conditions.

    • f/2.8 ~ f/11 Adjustable Aperture

      Adapt to lighting changes by adjusting the lens aperture size, giving the pilot more shutter speed control.

  • Zoom In For The Details

    EVO II Pro RTK V3 is equipped with a powerful camera system that can use the zoom function to allow users to obtain higher details when shooting (zoom up tp 16x), whether it is shooting a wide landscape or in tasks that require precise details, such as mapping, inspection, etc.

  •

  •

  • Optimized For Software Image Correction

    EVO II Pro RTK V3 is designed with precision in mind, offering optimized datasets that can be effortlessly adjusted and corrected using post-processing software applications. With advanced image correction capabilities, users can fine-tune every detail, ensuring that images are sharp, accurate, and free from distortions

  • Zoom In For The Details

    EVO II Pro RTK V3 is equipped with a powerful camera system that can use the zoom function to allow users to obtain higher details when shooting (zoom up tp 16x), whether it is shooting a wide landscape or in tasks that require precise details, such as mapping, inspection, etc.

  •

  • Optimized For Software Image Correction

    EVO II Pro RTK V3 is designed with precision in mind, offering optimized datasets that can be effortlessly adjusted and corrected using post-processing software applications. With advanced image correction capabilities, users can fine-tune every detail, ensuring that images are sharp, accurate, and free from distortions

  •

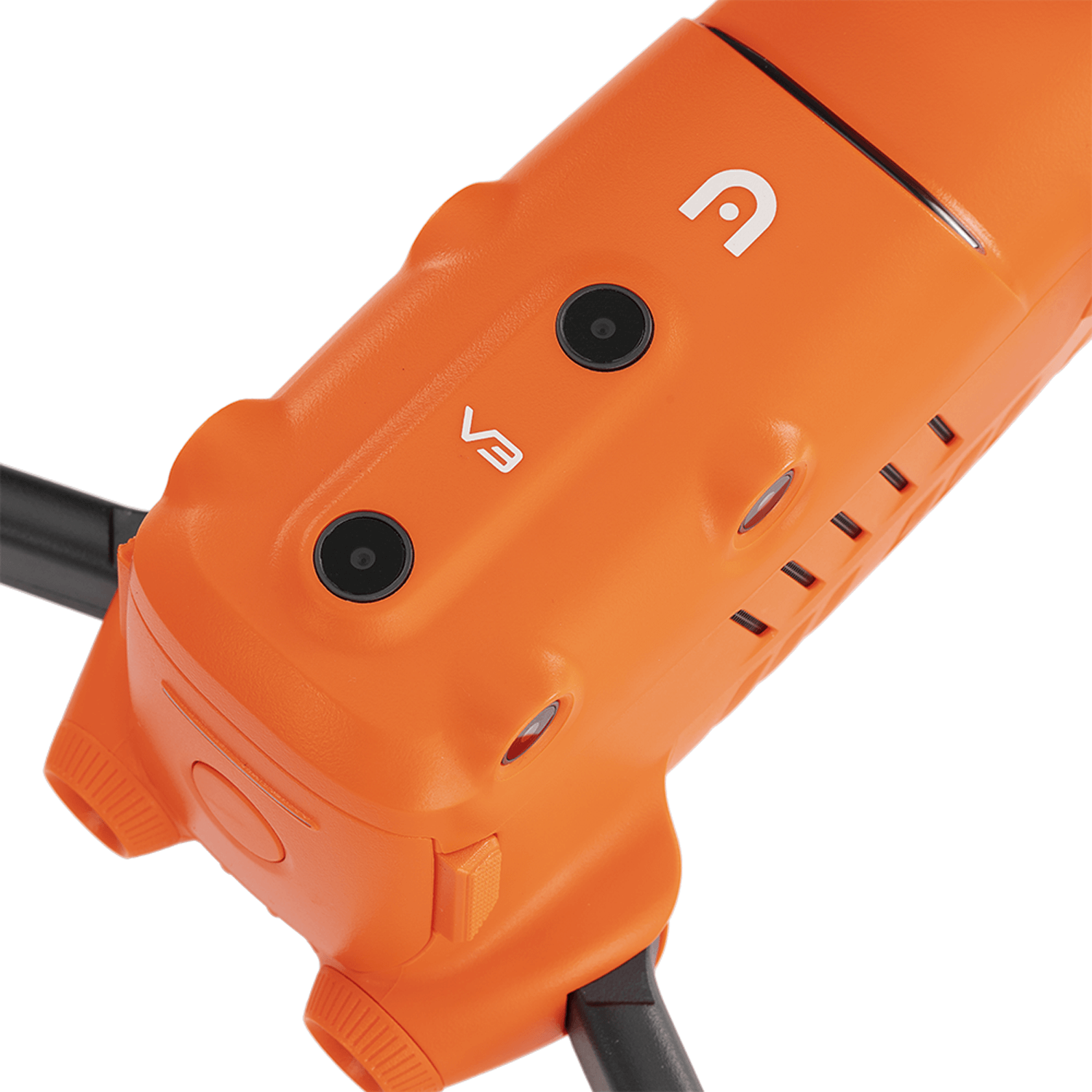

  360° Obstacle Avoidance

  EVO 2 Pro RTK V3 is equipped with an advanced 360° obstacle avoidance system, featuring 19 groups of sensors, including 12 visual sensors, the **main camera, ultrasonic sensors, and IMUs (Inertial Measurement Units). These sensors work together to provide comprehensive environmental awareness, ensuring the drone can detect obstacles in every direction, even in complex and dynamic environments.



  Mission Planner

  Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion. Then you're going to be able to take EVO II Pro RTK V3's images and upload them to your 3D mapping

  • Rectangular Mission

  • Polygon Mission

  • Rectangular Mission

  • Polygon Mission


  Autel SkyLink 2.0 Video Transmission

  SkyLink 2.0, integrated into Autel EVO II RTK V3 chipset, significantly enhances your operational potential. It offers a 9+ mil* range, allowing you to tackle long-distance tasks with confidence. The QHD resolution provides exceptional video quality within a mile, ideal for professional imaging.

  • 9+ Miles

    Do more because you can fly further away.

  • QHD

    Incredible video resolution within a mile, meeting most common use cases.

  • 2.4GHz / 5.8GHz / 900MHz

    Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.

  • * 900MHz is only applicable for FCC countries.


  • 9+ Miles

    Do more because you can fly further away.

  • QHD

    Incredible video resolution within a mile, meeting most common use cases.

  • 2.4GHz / 5.8GHz / 900MHz

    Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.

  • * 900MHz is only applicable for FCC countries.



  Portable and Easy to Use

  • •

    • Compact Design

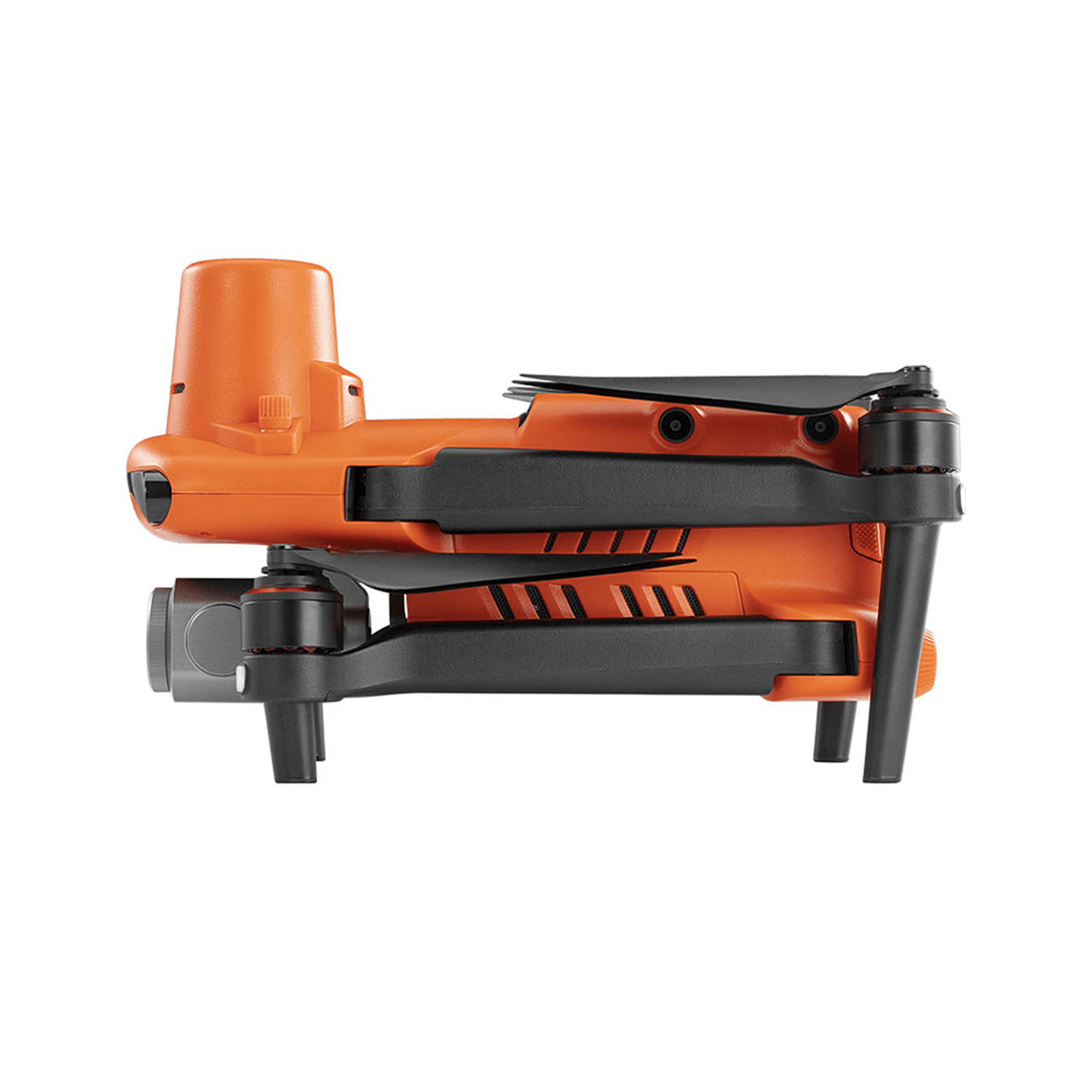

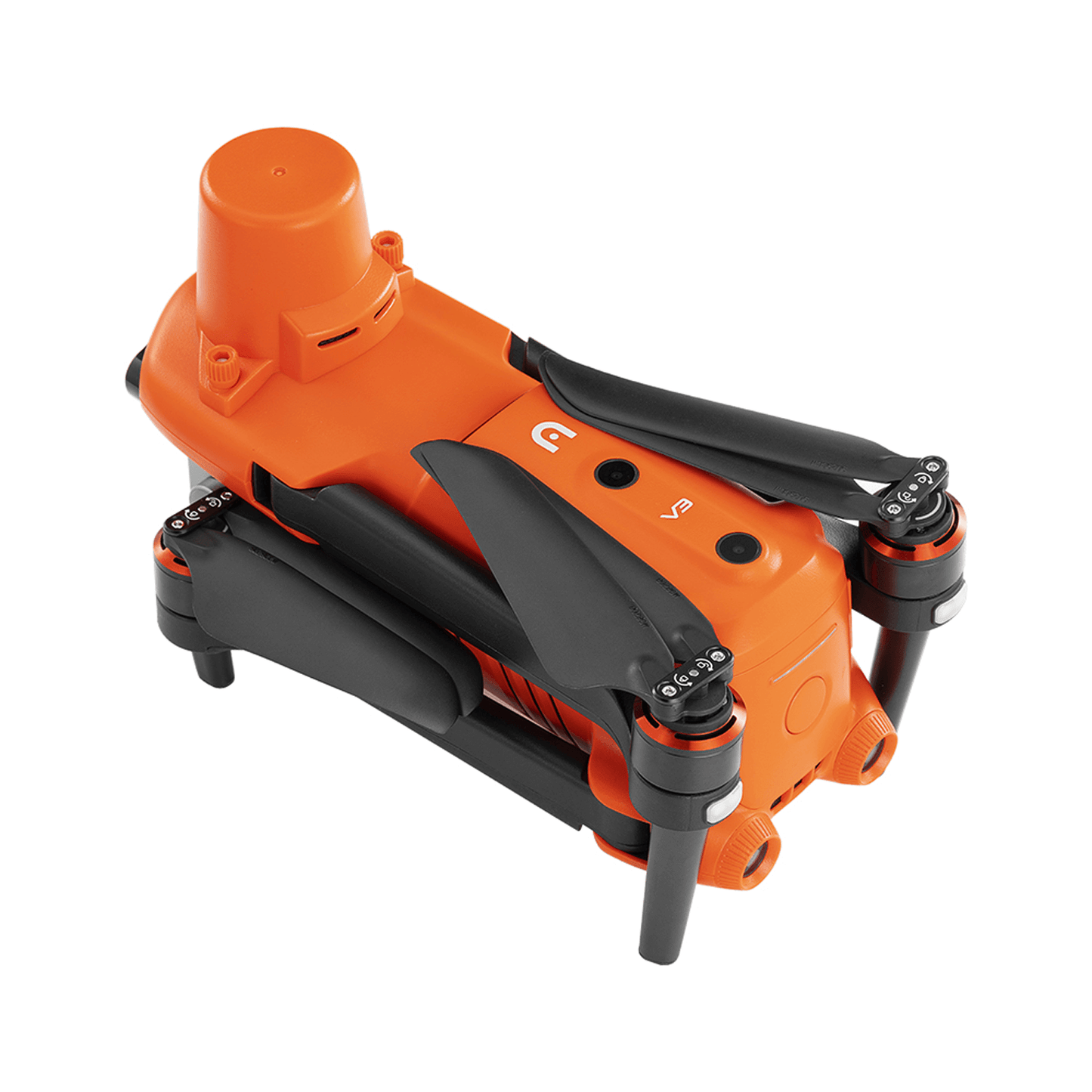

      Autel EVO II RTK Series V3 folds up for ease of transport and deployment.

  • •

    • Trouble Free Daily Workflows

      Autel EVO II RTK Series V3 only takes 45 seconds from setup to takeoff.

  • •
    • Compact Design

      Autel EVO II RTK Series V3 folds up for ease of transport and deployment.

  • •
    • Trouble Free Daily Workflows

      Autel EVO II RTK Series V3 only takes 45 seconds from setup to takeoff.



  *Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.

  Safe and Sturdy

  • 38minutes

    Maximum Flight Time

  • 9.3miles (15km)

    Maximum Transmission Range

  • 27mph (12m/s)

    Maximum Wind Resistance

  • 45mph (20m/s)

    Maximum Flight Speed

  • 38minutes

    Maximum
    Flight Time

  • 9.3miles (15km)

    Maximum Transmission Range

  • 27mph (12m/s)

    Maximum Wind Resistance

  • 45mph (20m/s)

    Maximum Flight
    Speed



  *Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.

  **It’s required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.

  Autel Smart Controller V3

  Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

  • • •
      • 7.9-Inch HD Touch Screen
    • •
      • -4 °F to 104 °F Temperature Range
    • •
      • 2000 nits Maximum Brightness
    • •
      • IP43 Resistance
  •
  • •

    • 7.9-Inch HD Touch Screen

  • •

    • -4 °F to 104 °F Temperature Range

  • •

    • 2000 nits Maximum Brightness

  • •

    • IP43
      Resistance

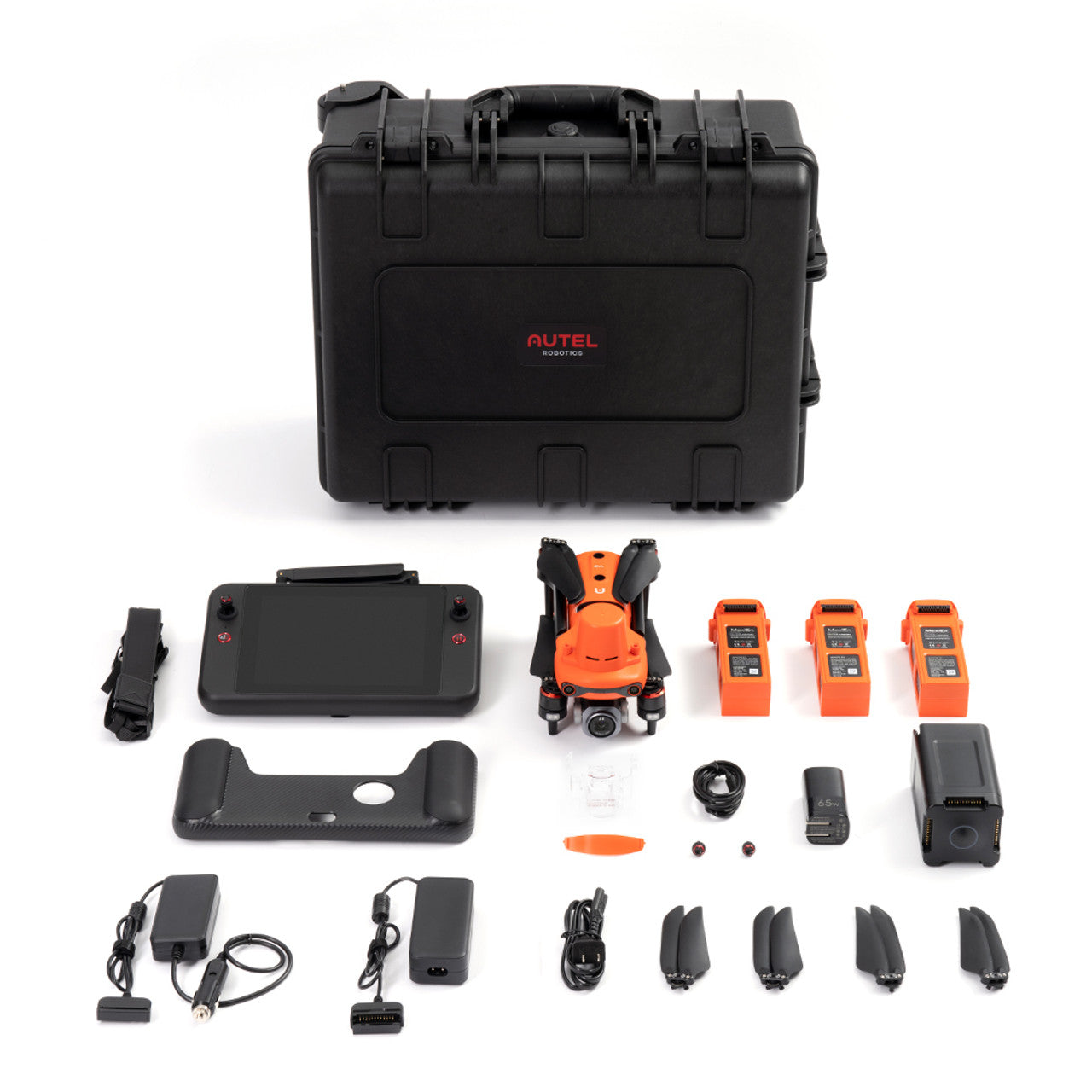

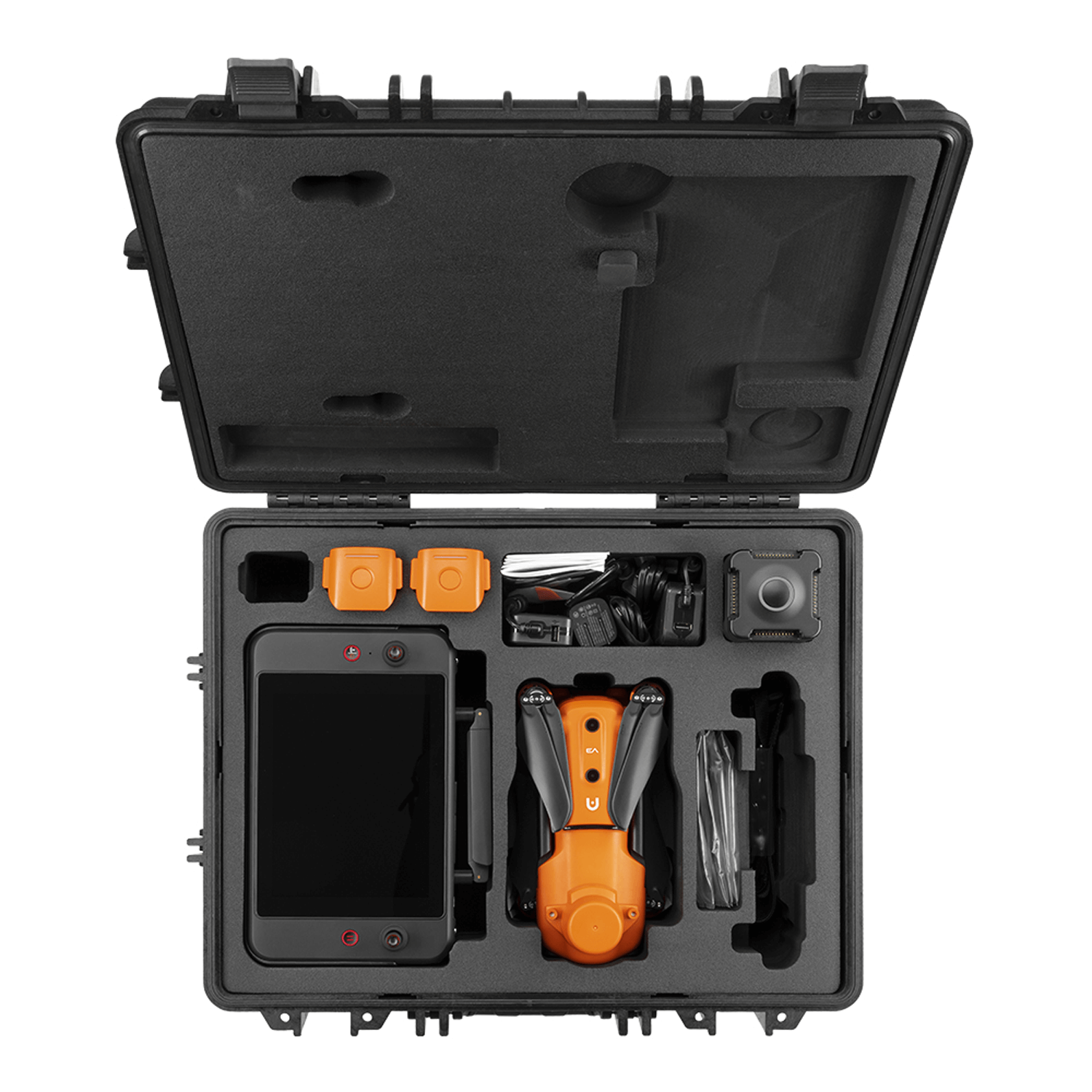

  Autel EVO II Pro RTK V3 Package List

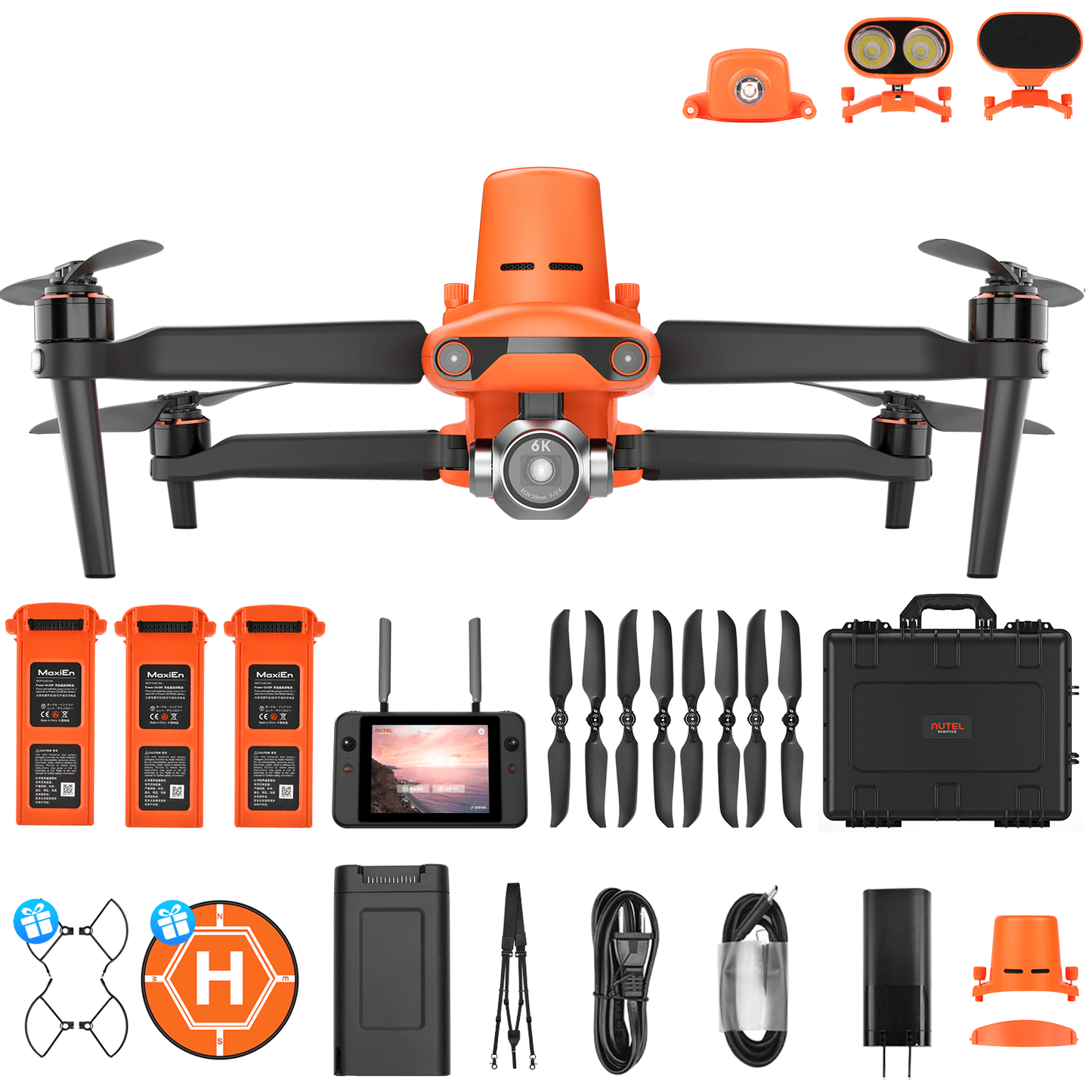

  Autel EVO II Pro RTK V3 Enterprise Bundle Package List



• Aircraft

  Camera

  Gimbal

  Obstacle Avoidance

  Remote Controller and Image Transmission

  Battery

  Charger

  Multi-Charger

  Aircraft	Camera	Gimbal	Obstacle Avoidance
  Remote Controller and Image Transmission	Battery	Charger	Multi-Charger

  Aircraft
  Takeoff Weight	1237g±0.5g（EVO II Pro RTK V3)
  Max takeoff weight	4.41 lbs (1999 g)
  Dimensions	Folded: 230×130×143mm Unfolded: 457×558×143mm
  Wheelbase	15.63 inches (397 mm)
  Max ascent speed	Novice mode:3 m/s Standard: 5 m/s Ludicrous: 8 m/s
  Max descent speed	Novice mode:3 m/s Standard: 31 m/s Ludicrous: 4 m/s
  Maximum horizontal flight speed (no wind near sea level)	Novice mode:3 m/s Standard: 10 m/s Ludicrous: 20 m/s
  Maximum flight altitude	800 meters (Altitude limit in the App)
  Max flight distance (no wind)	21 km
  Max tilt angle	33° (Ludicrous)
  Max angular velocity	120°/s
  Max flight time (no wind)	38 minutes
  Max hovering time (no wind)	32 minutes
  Operating temperature range	14°F to 104°F (-10℃ ~ 40℃)
  Maximum resistance to wind	Fresh Breeze
  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz
  Transmission power	900M FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm
  Hovering accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
  Image position compensation	The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)
  Camera
  Sensor	1" CMOS Effective Pixels: 20 MP
  Lens	FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity
  ISO Range	Video: 100-44000 Photo: 100-6400
  Shutter Speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1 ~ 16x (Max. 3x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR
  Maximum photo size	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
  Image Format	JPG (default) / 12bits DNG / JPG+12bits DNG
  Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
  Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  Max bitrate	80Mbps
  Supported file system	FAT32/exFAT
  GNSS
  Single frequency high sensitivity GNSS	GPS+BeiDou+Galileo（Asia） GPS+GLONASS+Galileo（Other areas）
  Multi-frequency multi-system high-precision RTK GNSS	Frequency points used： GPS：L1/L2； GLONASS：L1/L2； BeiDou：B1/B2； Galileo：E1/E5 First positioning time:<50 s Positioning accuracy: vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS) 1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves
  Gimbal
  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max control speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°
  Sensing System (Obstacle Avoidance)
  Sensing System	Omnidirectional Obstacle Sensing
  Forward	Precision Measurement Range: 0.5-18 m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80°
  Backward	Precision Measurement Range: 0.5-16 m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80°
  Upward	Precision Measurement Range: 0.5-10 m Effective Sensing Speed: <5m/s FOV: Horizontal: 65°, Vertical: 50°
  Downward	Precision Measurement Range: 0.5-10 m Effective Sensing Speed: <5m/s FOV: Horizontal: 100°, Vertical: 80°
  Sides	Precision Measurement Range: 0.5-10 m Effective Sensing Speed: <5m/s FOV: Horizontal: 65°, Vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
  Remote Controller and Image Transmission
  Operating Frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power(E.I.R.P)	FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G ≤33dBm@5.8G/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC：15km CE：8km
  Display screen	2048x1536 60fps
  Battery	5800mAh
  Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
  Charging time	120 minutes
  Internal Storage	ROM 128GB
  Battery
  Capacity	7100 mAh
  Voltage	11.55 V
  Max Charging Voltage	13.2 V
  Battery Type	LiPo 3S
  Energy	82 Wh
  Net Weight	0.81 lbs (365 grams)
  Charging Temperature Range	41°F to 104°F (5°C to 40°C)
  Storage Temperature and Humidity	-10~30℃，65±20%RH
  Recommended Storage Temperature	22-28℃
  Max Charging Power	93W
  Charging Time	90 minutes
  Charger
  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W
  Multi-Charger
  Voltage	13.2 V
  Charging temperature range	5℃ to 45℃

• Autel EVO II Pro RTK V3 Package List



  Autel EVO II Pro RTK V3 Enterprise Bundle Package List



• Name	Download
  EVO II RTK V3 Brochure - EN.pdf
  Specs For EVO II RTK Series V3 - .pdf
  Autel Smart Controller V3 Brochure
  Specs For Autel Smart Controller V3
  Autel Live Deck 2 Brochure
  Specs For Autel Live Deck 2

• Autel Robotics EVO II RTK Series Quick Questions & Quick Answers



  Q: What is the main difference between RTK series products and other EVO II series products?

  A: Unlike the other EVO II series aircraft, Autel EVO II RTK is epuipped with a high-precision RTK positioning and navigation system.



  Q: What is the effective image transmission range of the RTK Series?

  A: In an open area that is unobstructed and free of interference, the FCC Max is 9 miles and the CE Max is 5 miles.



  Q: In real-time mapping, can the aircraft continue mapping while the image transmission signal is lost?

  A: If the image transmission signal is lost now and then, the aircraft will be able to continue mapping after reconnecting.



  Q: What is the screen size and resolution of the remote controller?

  A: The autel smart controller v3 offerts a 7.9-inch 2048×1536@60fps ultra-bright touch screen.



  Q: Which RTK base station modes are currently supported?

  A: The A-RTK base station is currently supported.



  Q: What is the RTK positioning accuracy?

  A: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)



  Q: What is the difference between PPK and RTK mode and how to choose?

  A: Real-Time Kinematic (RTK) and Post-Processed Kinematic (PPK) are both centimeter-level positioning systems; RTK is recommended when users have high requirements for convenience and real-time operation, and there is a network communication link in the survey area. If the user does not require real-time performance or is in an environment with a poor network communication, then the PPK post-processing method can be used.



  Q: Does Autel EVO II RTK series provide measurements in relative coordinates or absolute coordinates?

  A: The measurement coordinates given by Autel EVO II RTK are absolute coordinates.



  Q: Does the aircraft support lossless zoom?

  A: The Autel EVO II Pro RTK V3 achieve 3x lossless zoom, The Autel EVO II Dual 640T RTK V3 can achieve 4x lossless zoom.
