Note:
*There is a branch in Chicago, USA, and the after-sales service of Autel series can be handled directly in the United States.
*The enterprise version adds megaphones, searchlights, and night lights.

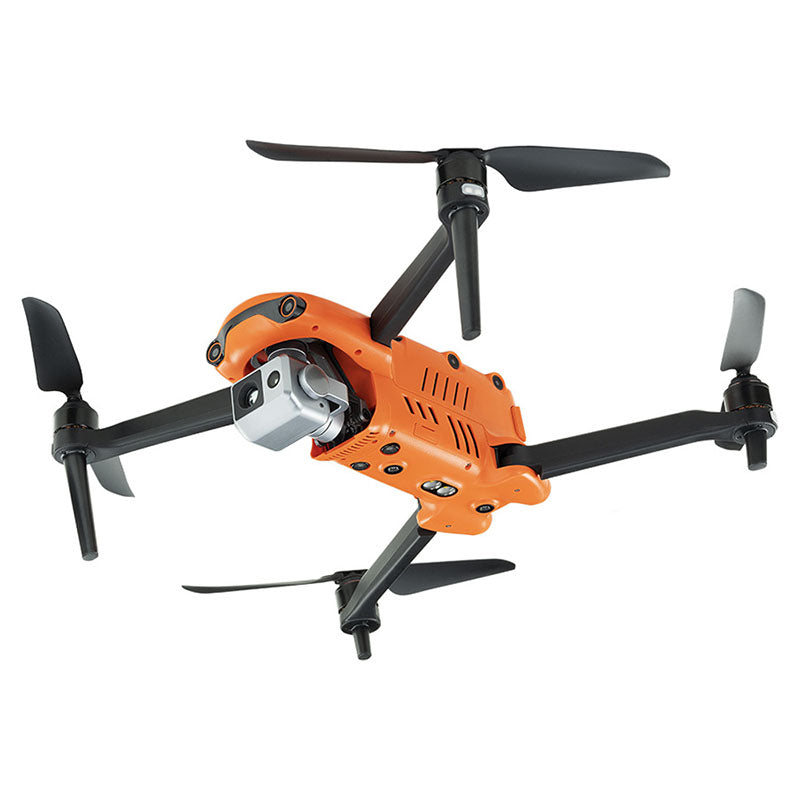

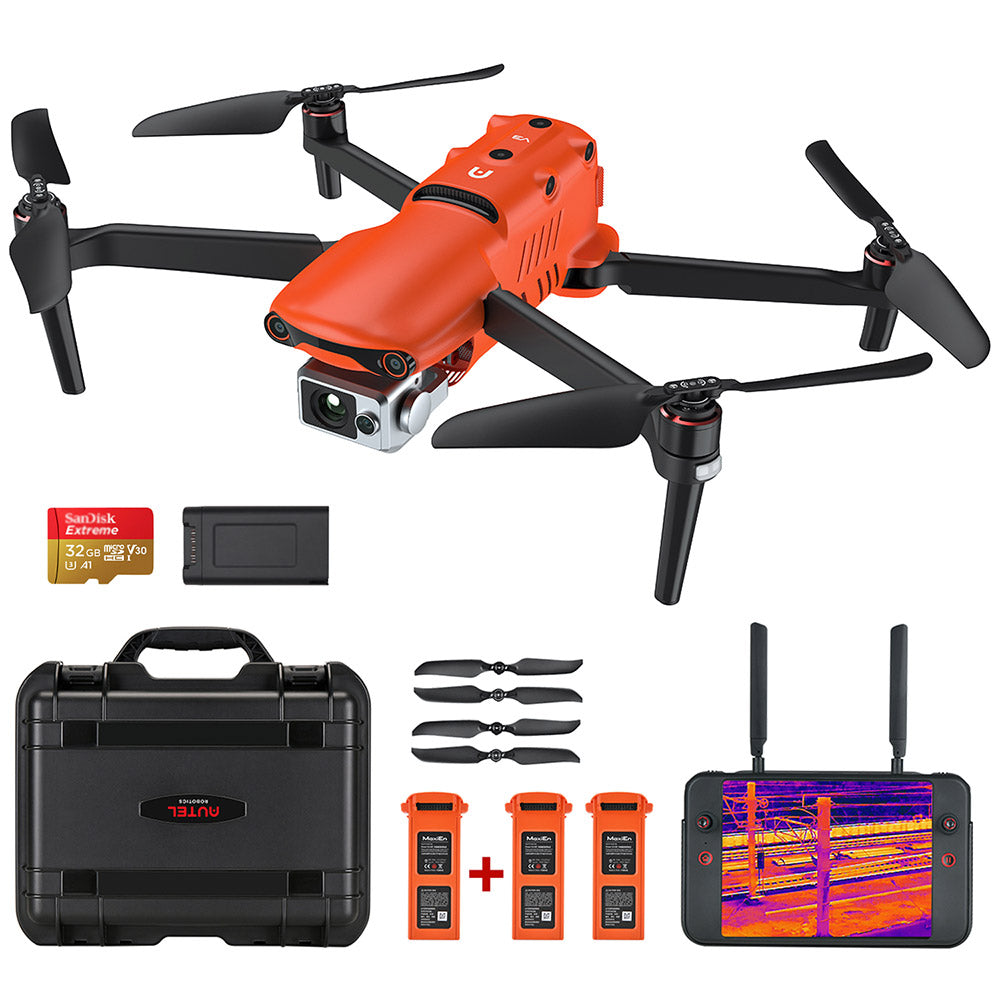

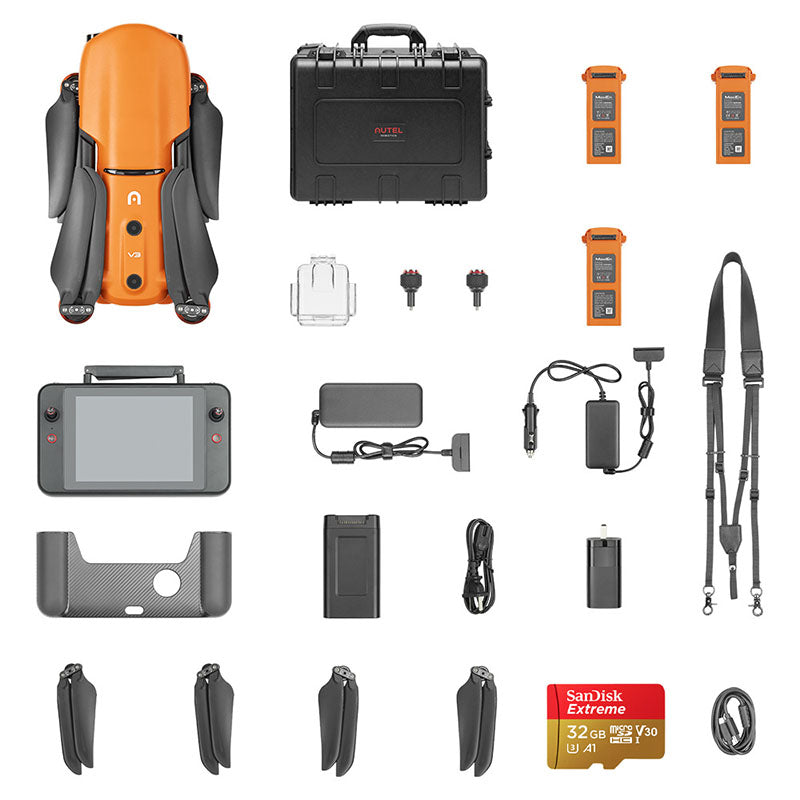

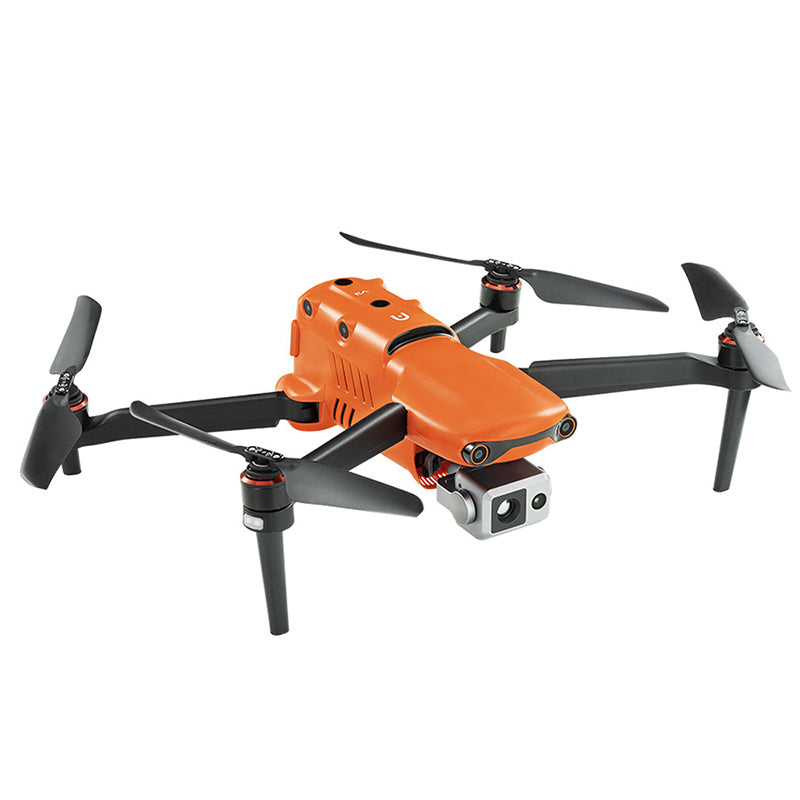

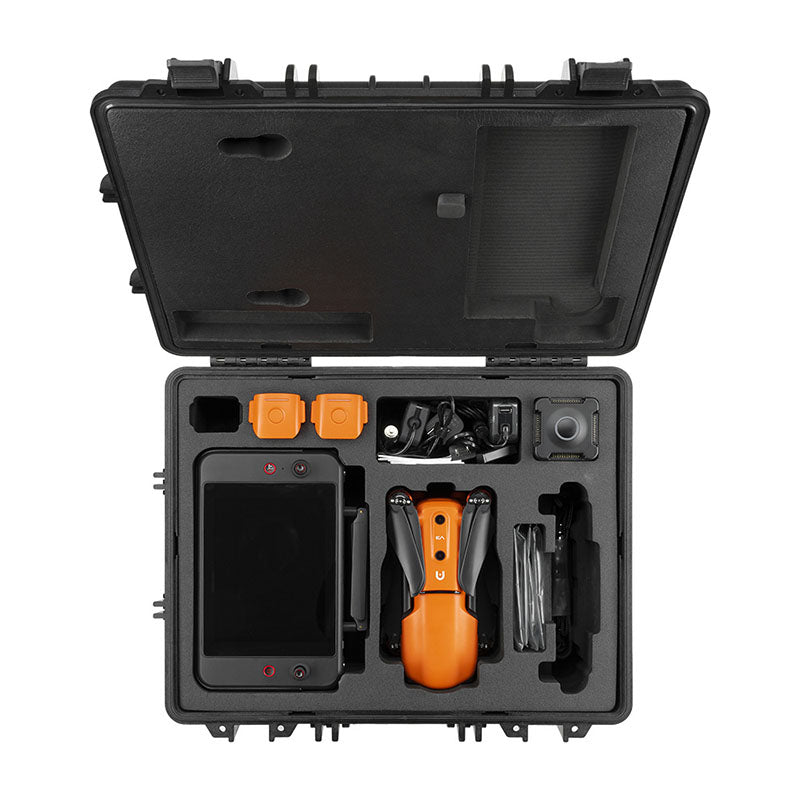

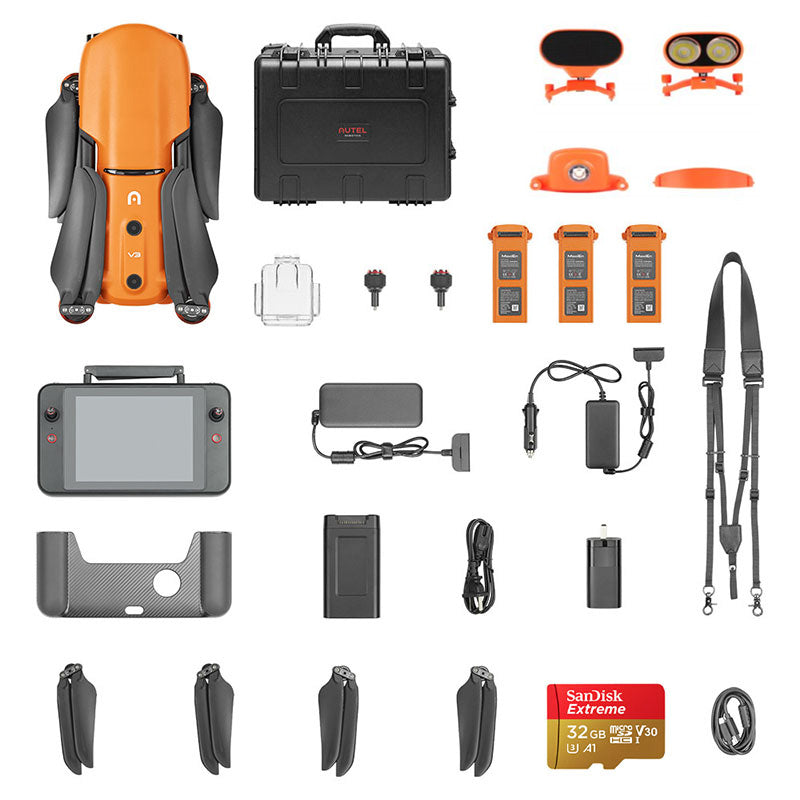

The Autel Robotics EVO II DUAL 640T Rugged Bundle V3 can provide a variety of professions and industries with a fast aerial response and essential data in harsh conditions. With a dual 50MP 4K HDR visual camera and a 640 x 512 thermal imaging camera, the Autel EVO II DUAL 640T is ideal for public safety officials, industrial workers, and professional filmmakers alike. In any of these scenarios, the drone can handle a temperature range of 14 to 104°F and winds up to 39 mph. The bundle's accessories give you multiple batteries, a smart controller, and a host of essential items to get you up and flying out of the box.

Autel Robotics EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging：
With more thermal imaging detail than the previous generation, the Autel EVO II Dual 640T Enterprise Bundle V3 Drone with Thermal Imaging from Autel Robotics provides first responders and industrial inspectors the ability to better pinpoint temperature fluctuations, vehicles, and individuals. You can view real-time thermal information in a variety of ways, including together with visual imaging for better decision-making in the field. The thermal camera is capable of 640 x 512 resolution, while the 50MP visual camera can record up to 4K HDR footage. The foldable design deploys quickly, and the included Smart Controller V3 can operate it from over nine miles away. Throughout each mission, you can rest easy as 360° obstacle avoidance keeps the EVO II safe.

Autel EVO II Dual 640T Visual Camera：
Inspections and rescues are not the only things you can do with your Autel EVO II Dual 640T. The 50MP visual camera is capable of capturing stunning professional footage at 4K HDR resolution. With its 0.8" RYYB CMOS sensor instead of a traditional RGB sensor, the larger surface area delivers a high level of detail in high-contrast lighting conditions. Dynamic tracking shots are possible with the quick focusing of the PDAF+CDAF system, and low-light scenes will be clearer thanks to the moonlight algorithm 2.0's increased noise suppression.

Autel EVO II Dual 640T Smart Controller V3 with SkyLink 2.0：
Autel EVO II Dual 640T Utilizing SkyLink 2.0, the Smart Controller V3's built-in 7.9" display can receive HD video transmission in flight from up to 9.32 miles away (or QHD quality from up to 0.62 miles away). Reception is engineered to be stable and interference-free, thanks to triple-band (900 MHz, 2.4 GHz, and 5.8 GHz) frequency hopping. Thanks to the display's 2000 cd/m² brightness, you can easily view the drone's footage, even in direct sunlight. You're not restricted to flying on sunny days, though. The Smart Controller V3 can withstand -4 to 104°F temperatures and is IP43-rated for all-weather performance.

Autel EVO II Dual 640T 360-Degree Obstacle Avoidance：
Autel EVO II Dual 640T While in flight, an array of 19 sensors, including 12 visual sensors, the main camera, ultrasound IMUs, and more, can build a 3D map of the drone's surroundings and plan a clear path to its destination in real time.

Autel EVO II Dual 640T Flight Battery for EVO II Drones：
Keep your Autel EVO II Dual 640T powered up and flying with this Flight Battery from Autel. This essential drone accessory powers your Autel EVO II Dual 640T with a 7100mAh capacity. This provides up to 40 minutes of active flight time, or up to 35 minutes when hovering.

Autel Robotics Low-Noise Propellers for EVO II Enterprise Drones (Pair)：
This pair of Low-Noise Propellers for Autel EVO II Dual 640T Enterprise Drones from Autel Robotics can be used to replace damaged components or added to your kit for on-site repairs. They are designed for easy installation and removal to help minimize drone downtime. Clear markings indicate to which arm they should be attached.

Autel Robotics Car Charger for EVO II：
Fly longer with the Car Charger for Autel EVO II Dual 640T from Autel Robotics. Whether you're faced with dead batteries or want to stay out on location longer, this charger gives you a convenient way to recharge your Autel EVO II Dual 640T batteries. Simply plug them into your vehicle's standard power port. Built-in safety protections, such as undervoltage and overheating detection, help ensure that your batteries enjoy a safe recharging experience.

————————————————————————

Autel EVO II Dual 640T V3 thermal drone is an industry-first drone combining infrared imaging camera with 8K video camera. With thermal resolution up to 640x512 and an 8k sensor Autel EVO II Dual 640T becomes a workhorse. First responders, contractors, and business owners finally have a compact and portable tool that gives them the data they have been asking for.

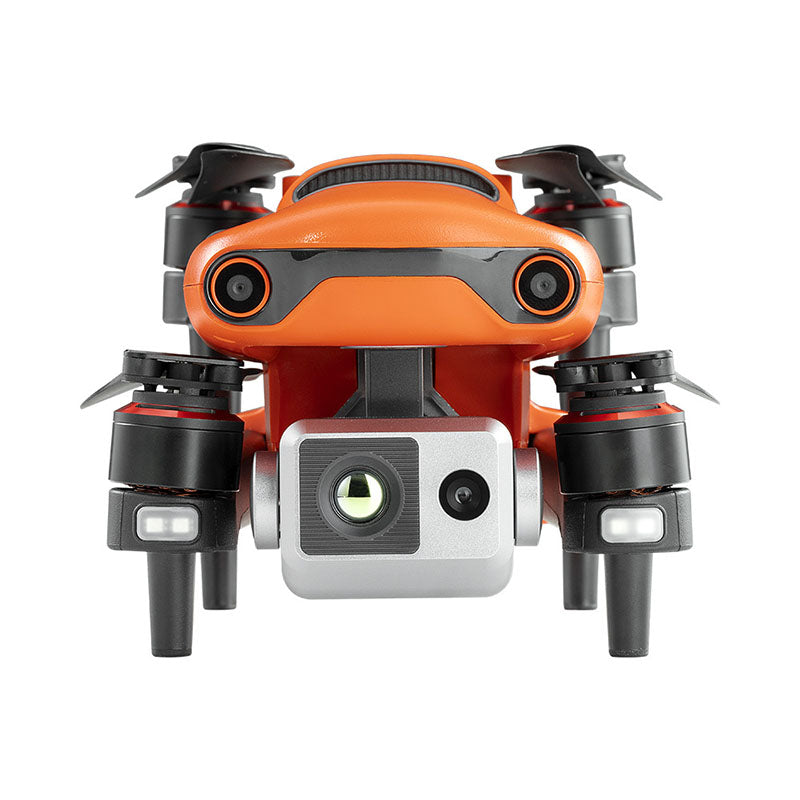

Equipped with a 640 x 512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, Autel EVO II Dual 640T V3 is easier than ever to observe distant targets. The system uses a new image processing algorithm, making thermal details clearer and more discernible than other options with similar resolution and hardware..

Thermal Imaging Function：
Picture-in-Picture Mode：
Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"

Regional Temperature Measurement：
Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
The temperature measurement frame can be dragged to any position on the screen.

10 Thermal Color Palettes：
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection.

4x Lossless Zoom：

50MP Ultra-Sensitive Camera：
The EVO II Dual 640T V3's RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.

360° Obstacle Avoidance：
Autel Robotics EVO II Dual 640T V3 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

Autel SkyLink 2.0 Video Transmission：
SkyLink 2.0 is built into the EVO II Dual 640T V3 chipset, expanding the possibilities for your most critical workflows.

Autel Smart Controller SE：
Smart Controller SE comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

EVO II 640T V3

EVO II 640T V3 Enterprise Version

THERMAL CAMERA:
Sensor: Uncooled VOx Microbolometer
Lens: FOV H33°V26°; Focal length 13mm
Zoom: 1 - 16x
Pixel size: 12 µm
Wavelength range: 8-14 µm
Temperature range: High gain mode: -20° to +150°; Low gain mode: 0° to +550°
Temperature measurement accuracy: ±3℃ or ±3% of reading (whichever is greater); @Environmental temperature-20℃~60℃
Accurate temperature measurement distance: 2-20 meters
Video resolution: 640x512@25fps
Video format: MOV / MP4 (Support H.264/H.265)
Camera resolution: Infrared mode: 640*512; Picture-in-picture mode: 1920*1080, 1280*720
Photo mode: Single shot; Burst shooting: 3/5 frames, 3 is the default; Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
Photo format: JPG (with irg file)

VISIBLE LIGHT CAMERA:
Sensor: 1/1.28"(0.8") CMOS; Effective Pixels: 50 MP
Lens: FOV: 85°; 35 mm format equivalent focal length: 23 mm; Aperture: f/1.9; Focus range: 0.5 m to infinity (with auto focus)
ISO Range: Video: 100-64000; Photo: 100-6400
Shutter Speed: Photo mode: 1/8000 ~ 8s; Other: 1/8000 ~ 1/frame rates
Digital Zoom: 1 ~ 16x (Max. 4x lossless zoom)
Maximum photo size: 8192*6144(4:3); 4096*3072(4:3); 3840x2160(16:9)
Image Format: JPG (default) / DNG / JPG+DNG
Video format: MOV / MP4
Video resolution: 3840x2160 P60/P50/P48/P30/P25/P24; 2720x1528 P60/P50/P48/P30/P25/P24; 1920x1080 P60/P50/P48/P30/P25/P24
Max bitrate: 80Mbps
Supported file system: FAT32/exFAT

GIMBAL:
Gimbal: 3-axis stabilization
Mechanical Range: Tilt: -135° to +45°;; Pan: -100° to +100°
Controllable Range: Pitch: -90° to +30°; Yaw: -90° to +90°
Max Control Speed (Tilt): 300°/s
Angular Vibration Range: ±0.005°

AIRCRAFT:
Takeoff weight (With propellers and battery): 2.67 lbs (1209 g)
Max Takeoff Weight: 4.4 lbs (1999 g)
Size(L*W*H): Folded(L x W x H): 230*130*108 mm (9.1*5.1*4.3 inches); Unfolded(L x W x H): 457*558*108 mm (18*22*4.3 inches)
Wheelbase: 397 mm
Maximum Takeoff Altitude: 22,965 ft (7000 m)
Max ascent speed: 8 m/s (Ludicrous)
Max descent speed: 4 m/s (Ludicrous)
Max horizontal flight speed: 20m/s (Ludicrous)
Max flight distance (no wind): 22 km
Max angular velocity: 120°/s
Max tilt angle: 33° (Ludicrous)
Max flight time (no wind): 38 min
Max hovering time (no wind): 33 min
Operating temperature range: 14 °F to 104 °F (-10℃ ~ 40℃)
Maximum resistance to wind: 12 m/s (Take-off and landing)
Operating frequency: 902-928MHz (FCC Only); 2.400-2.4835GHz; 5.725-5.850GHz
Transmission power (E.I.R.P): 900M FCC/ ISED：≤31dBm 2.4G; FCC/ ISED: ≤32dBm; SRRC/CE/MIC/RCM: ≤20dBm 5.8G: FCC/ISED/SRRC/MIC: ≤33dBm CE/ RCM: ≤14dBm
Hovering accuracy: Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally); Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
GNSS: GPS/Beidou/Glonass/Gallieo
Internal storage: 8GB
SD storage: max. support 256GB (UHS-3 or Class 10)

SENSING SYSTEM (OBSTACLE AVOIDANCE):
Sensing System: Omnidirectional Binocular Obstacle Sensing System
Sensing system type: Omnidirectional sensing system
Forward: Accurate measurement range: 0.5-18 m; Effective sensing speed:<12m/s; Viewing angle: Horizontal: 60°; Vertical: 80°
Backward: Accurate measurement range: 0.5-16 m; Effective sensing speed:<12m/s; Viewing angle: Horizontal: 60°; Vertical: 80°
Upward: Accurate measurement range: 0.5-10 m; Effective sensing speed:<5m/s; Viewing angle: Horizontal: 65°; Vertical: 50°
Downward: Accurate measurement range: 0.5-10 m; Effective sensing speed:<5m/s; Viewing angle: Horizontal: 100°; Vertical: 80°
Left and right: Accurate measurement range: 0.5-10 m; Effective sensing speed:<5m/s; Viewing angle: Horizontal: 60°; Vertical: 50°
Operating Environment: Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15); Upward: Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.); Downward:Surface with clear pattern and adequate lighting (lux > 15); Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)

REMOTE CONTROLLER:
Operating frequency: 902-928MHz (FCC Only); 2.400-2.4835GHz; 5.725-5.850GHz
Transmission power (E.I.R.P): FCC: ≤33dBm; CE: ≤20dBm@2.4G，≤14dBm@5.8G; SRRC: ≤20dBm@2.4G，≤33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference): FCC: 9.3 miles (15 km); CE：5 miles (8 km)
Display screen: 2048x1536 60fps
Battery: 5800mAh
Operating time: ~3 hours (Max. Brightness); ~4.5 hours (50% Brightness)
Charging time: 120 minutes
Internal Storage: ROM 128GB

BATTERY:
Capacity: 7100 mAh
Voltage: 11.55 V
Battery type: LiPo 3S
Energy: 82 Wh
Weight: 365 g
Charging temperature range: 5℃ to 45℃
Storage temperature and humidity: -10~30℃，65±20%RH
Recommended storage temperature: 22-28℃
Max charging power: 93W
Charging time: 90 minutes

CHARGER:
Input: 100-240 V, 50/60 Hz, 1.5A
Output: 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage: 13.2±0.1V
Rated power: 66W

MULTI-CHARGER
Voltage: 13.2 V
Charging temperature range: 5℃ to 45℃

Package weight: 13kg
Package size: 55*45*25 cm
