• Remote ID Updated
• 7.9" Smart Controller V3
• Include Speaker/Spotlight/Stobe
• 1" CMOS Sensor Gimbal Camera
• 12-bit DNG A-Log
• 20MP Photo& 6K/30fps Video
• 360° Obstacle Avoidance
• Dynamic Track 2.1
• 15km Transmission Range
• 42 Minutes Flight Time
• 9 Miles Video Transmission Range

[keyfeatures]

• Description
• Specification
• Package
• Documents
• Faqs

• EVO II Pro Enterprise V3

  Autel EVO 2 Pro Enterprise V3 is the latest addition to the EVO II lineup. This 6K Pro model features a 1" CMOS sensor, delivering up to 20MP still images. Enhanced with larger carbon fiber arms, powerful motors, and bigger propellers, it offers an extended flight time of up to 42 minutes.

  •

    1 inch
    CMOS Sensor
  •

    6K/30fps
    Videos
  •

    Enterprise
    Accessories
  •

    15km
    Transmission Range
  •

    360°
    Obstacle Avoidance
  •

    16x
    Zoom
  •

    42 Minutes
    Flight Time
  •

    7.9"
    Smart Controller V3
  •

    1 inch
    CMOS Sensor
  •

    6K/30fps
    Videos
  •

    Enterprise
    Accessories
  •

    15km
    Transmission Range
  •

    360°
    Obstacle Avoidance
  •

    16x
    Zoom
  •

    42 Minutes
    Flight Time
  •

    7.9"
    Smart Controller V3

  Work Like Never Before

  Optimize your workflow with our toughest EVO II Pro Enterprise V3 yet, bulked up with new accessories and camera features to meet the demands of professionals in every industry from firefighting to construction. With a foldable design that can be deployed in seconds and easy-to-use controls that can be operated with a single hand, the EVO II Dual 640T provides a surefire way to increase efficiency without increasing stress.

  •
  • All New 6K 1" CMOS Camera

    See clearer with Sony's new 20 megapixel 1-inch CMOS image sensor, supporting up to 6K video resolution with greater dynamic range and higher frame rates.

  • Aperture Range Of f/2.8 To f/11

    The lens's adjustable aperture range of f/2.8 to f/11 and a maximum ISO of 44000 enables the photographer to enhance their image control and creative freedom.


  •

  • All New 6K 1" CMOS Camera

    See clearer with Sony's new 20 megapixel 1-inch CMOS image sensor, supporting up to 6K video resolution with greater dynamic range and higher frame rates.

    • Adjustable Aperture
      f/2.8 To f/11
    • Moonlight Algorithm
      2.0
  • •
    • Embrace The Night

      Autel's Moonlight Algorithm 2.0 brings you additional noise reduction processing. Paired with the upgraded CMOS, the EVO II Pro Enterprise V3 succeeds in night-time operations.

  • •
    • Zoom With Confidence

      The payloads feature 3x lossless zoom and 16x digital zoom. Fly at safer distances while still getting high-fidelity imagery.

  • •
    • Embrace The Night

      Autel's Moonlight Algorithm 2.0 brings you additional noise reduction processing. Paired with the upgraded CMOS, the EVO II Pro Enterprise V3 succeeds in night-time operations.

  • •
    • Zoom With Confidence

      The payloads feature 3x lossless zoom and 16x digital zoom. Fly at safer distances while still getting high-fidelity imagery.

  • •
    • Embrace The Night

      Autel's Moonlight Algorithm 2.0 brings you additional noise reduction processing. Paired with the upgraded CMOS, the EVO II Pro Enterprise V3 succeeds in night-time operations.

  • •
    • Zoom With Confidence

      The payloads feature 3x lossless zoom and 16x digital zoom. Fly at safer distances while still getting high-fidelity imagery.

  • •
    • Accident Reconstruction

      Rapidly reconstruct scenarios with precision, using built-in mission planning and third-party compatibility including Pix4D, DroneDeploy, and SkyeBrowse.

  • •
    • Greater Dynamic Range With 4K HDR

      4K HDR offers greater detail in highlights and shadows, providing higher- quality images from the most demanding environments.

  Autel SkyLink 2.0 Video Transmission

  SkyLink 2.0 is built into the EVO II Pro Enterprise V3 chipset, expanding the possibilities for your most critical workflows.

  • 9+ Miles

    Do more because you can fly further away

  • QHD

    Incredible video resolution within a mile, meeting most common use cases.

  • 2.4GHz / 5.8GHz / 900MHz

    Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.

  • * 900MHz is only applicable for FCC countries.



  • 9+ Miles

    Do more because you can fly further away.

  • QHD

    Incredible video resolution within a mile, meeting most common use cases.

  • 2.4GHz / 5.8GHz / 900MHz

    Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.

  • * 900MHz is only applicable for FCC countries.



  Mission Planner

  Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion. Then you're going to be able to take EVO II Pro Enterprise V3's images and upload them to your 3D mapping

  • Rectangular Mission

  • Polygon Mission

  • Rectangular Mission

  • Polygon Mission


  EVO II - AI Enhanced Dynamic Track

  EVO II Pro Enterprise V3 can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.

  360° Obstacle Avoidance

  EVO II Pro Enterprise V3 Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.

  Failsafe & Automatically Return Home

  EVO 2 Enterprise V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

  Flight Performance

  Autel EVO 2 Enterprise V3 comes standard with a 7100mAh rechargeable battery. Providing up to 42 mins of flight time in forward motion to up to 15km (9 miles) away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II.

  • 42minutes (no wind)

    Maximum Flight Time

  • 9.3miles (15km)

    Maximum Transmission Range

  • 27mph (12m/s)

    Maximum Wind Resistance

  • 45mph (20m/s)

    Maximum Flight Speed



  • 42minutes (no wind)

    Maximum Flight Time

  • 9.3miles (15km)

    Maximum Transmission Range

  • 27mph (12m/s)

    Maximum Wind Resistance

  • 45mph
    (20m/s)

    Maximum Flight Speed

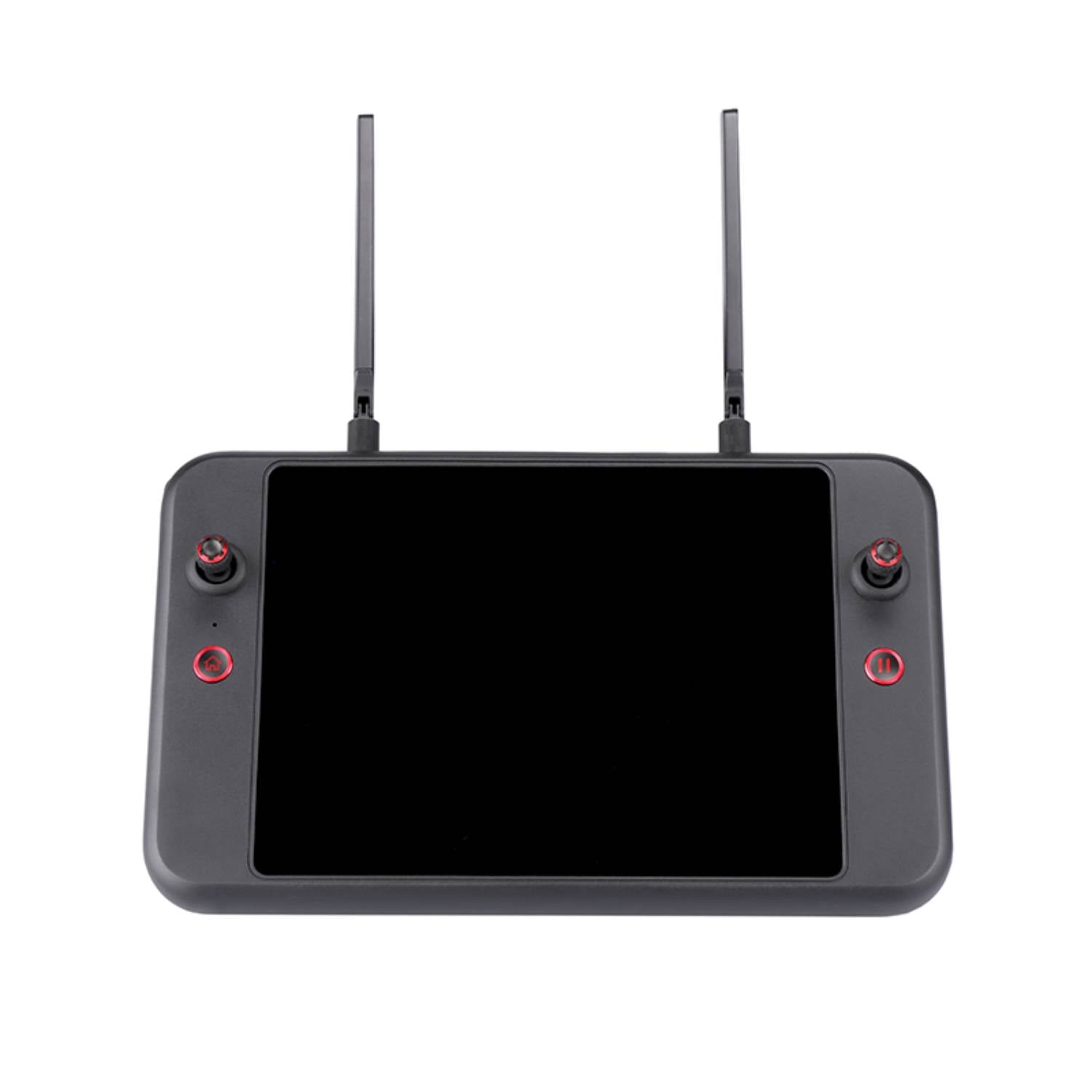

  Autel Smart Controller V3

  Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

  • • •
      • 7.9-Inch HD Touch Screen
    • •
      • -4 °F to 104 °F Temperature Range
    • •
      • 2000 nits Maximum Brightness
    • •
      • IP43 Resistance
  •
  • •

    • 7.9-Inch
      HD Touch Screen

  • •

    • -4 °F to 104 °F Temperature Range

  • •

    • 2000 nit
      Maximum Brightness

  • •

    • IP43
      Resistance

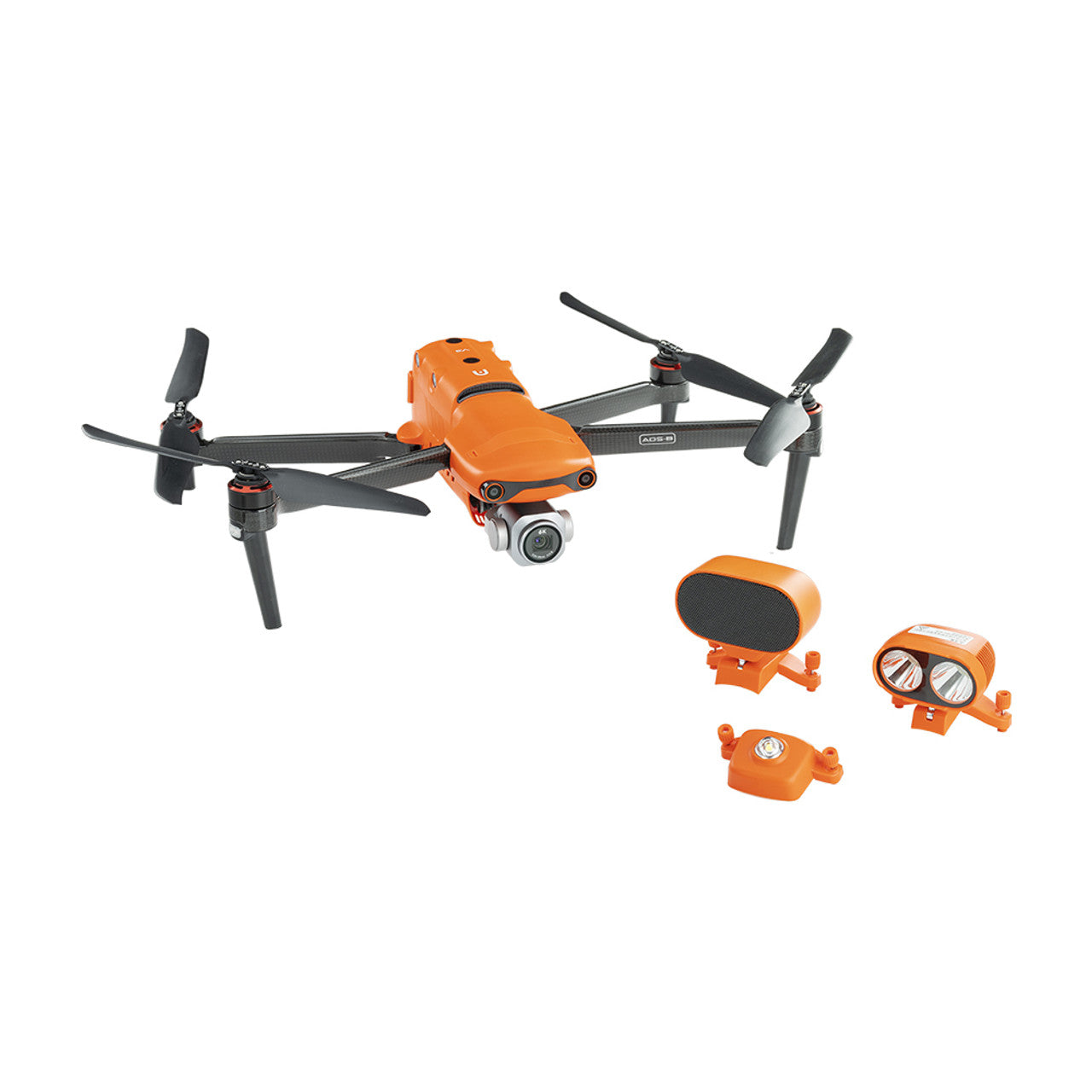

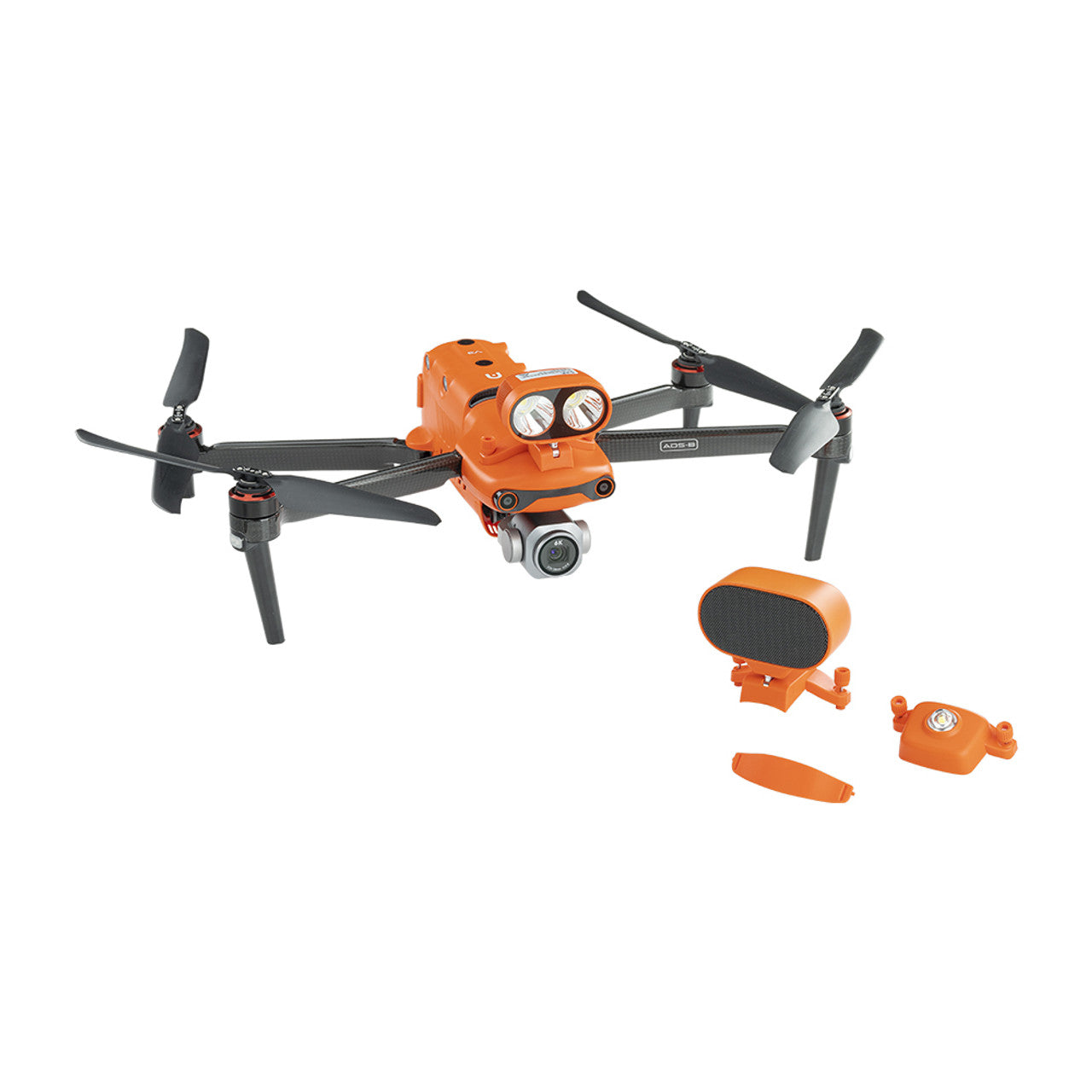

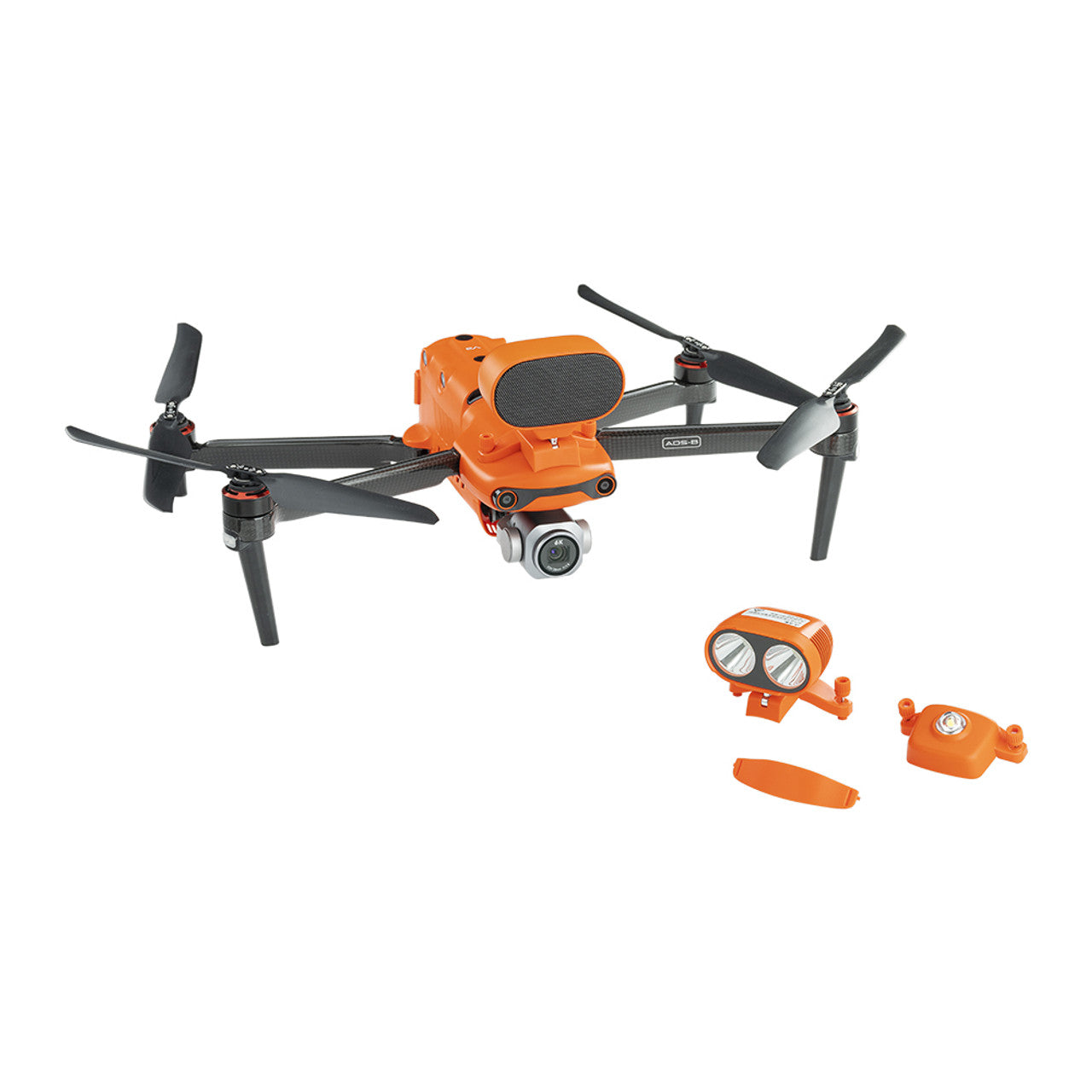

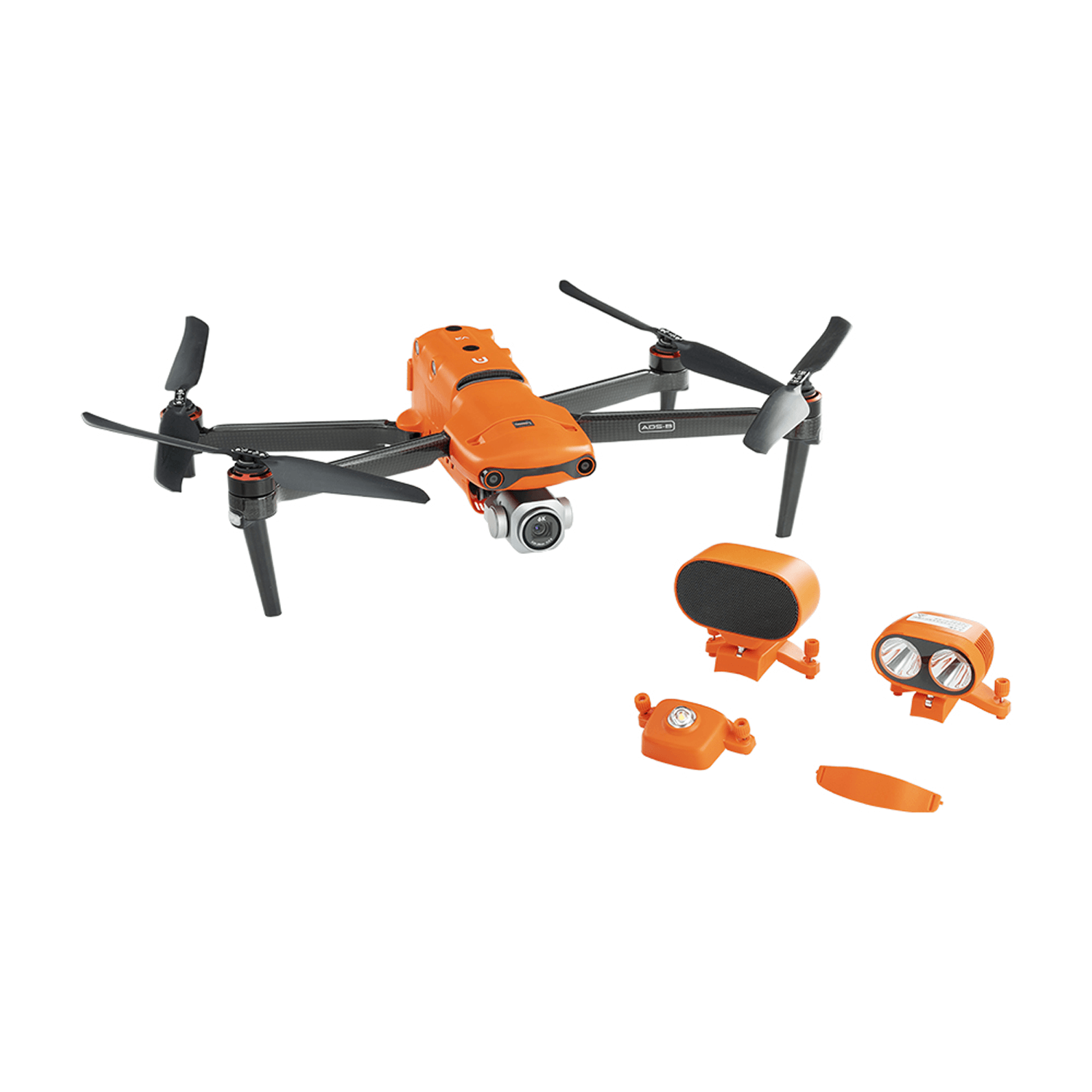

  Enterprise Bundle Accessories

  •

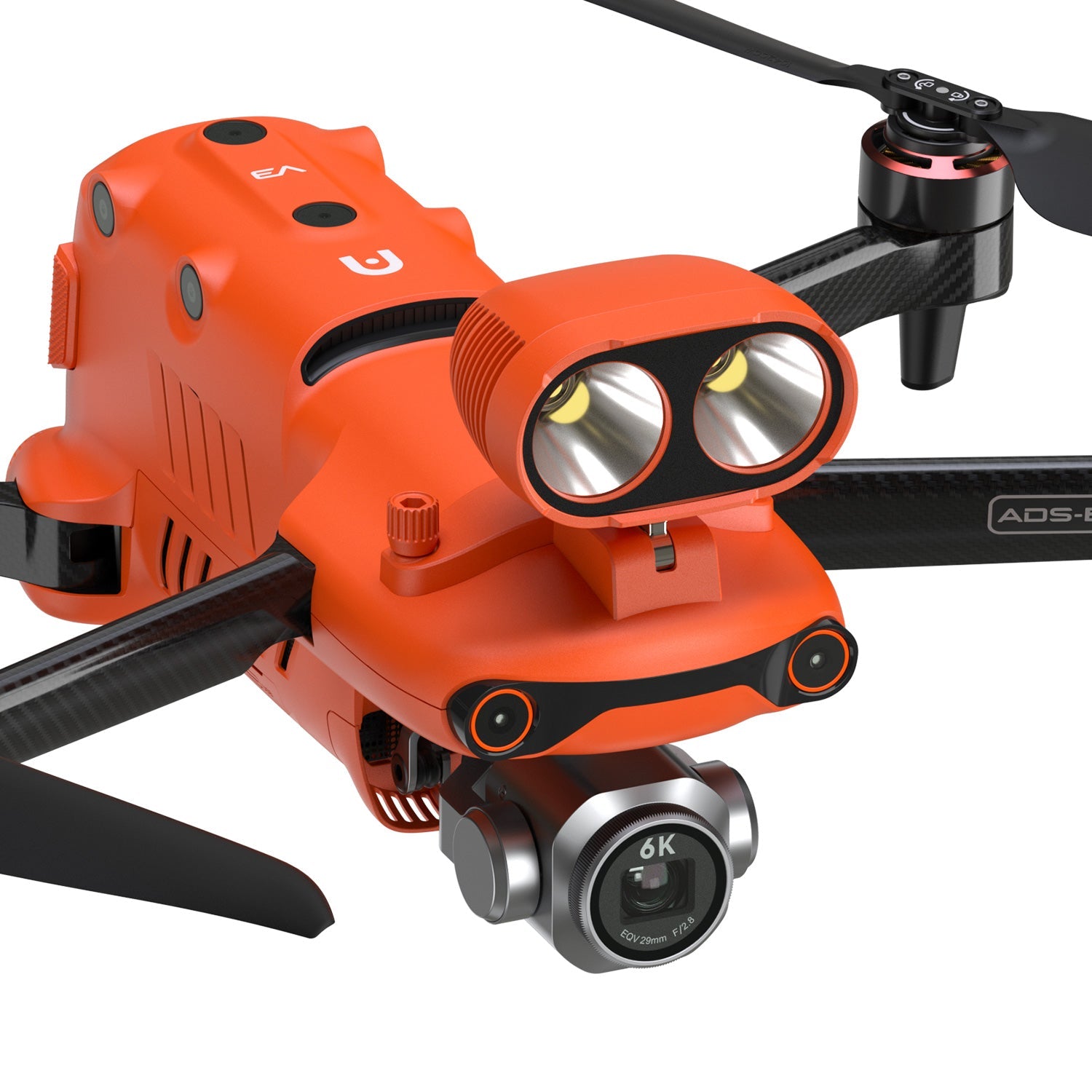

    Spotlight

    Beams a powerful, long-distance aerial light when searching or shooting at night.

  •

    Strobe

    Indicate the location of the aircraft at night to avoid air traffic accidents.

  •

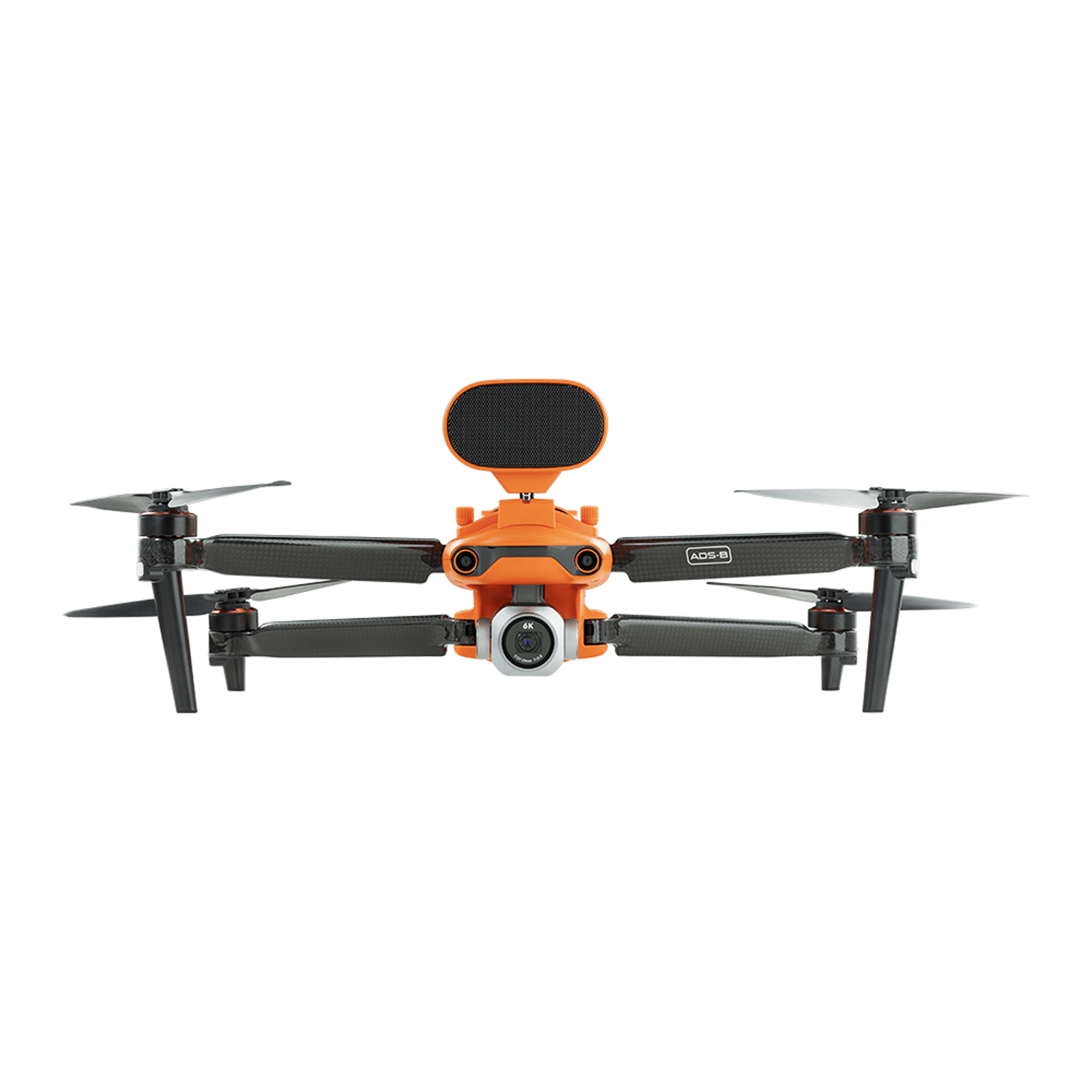

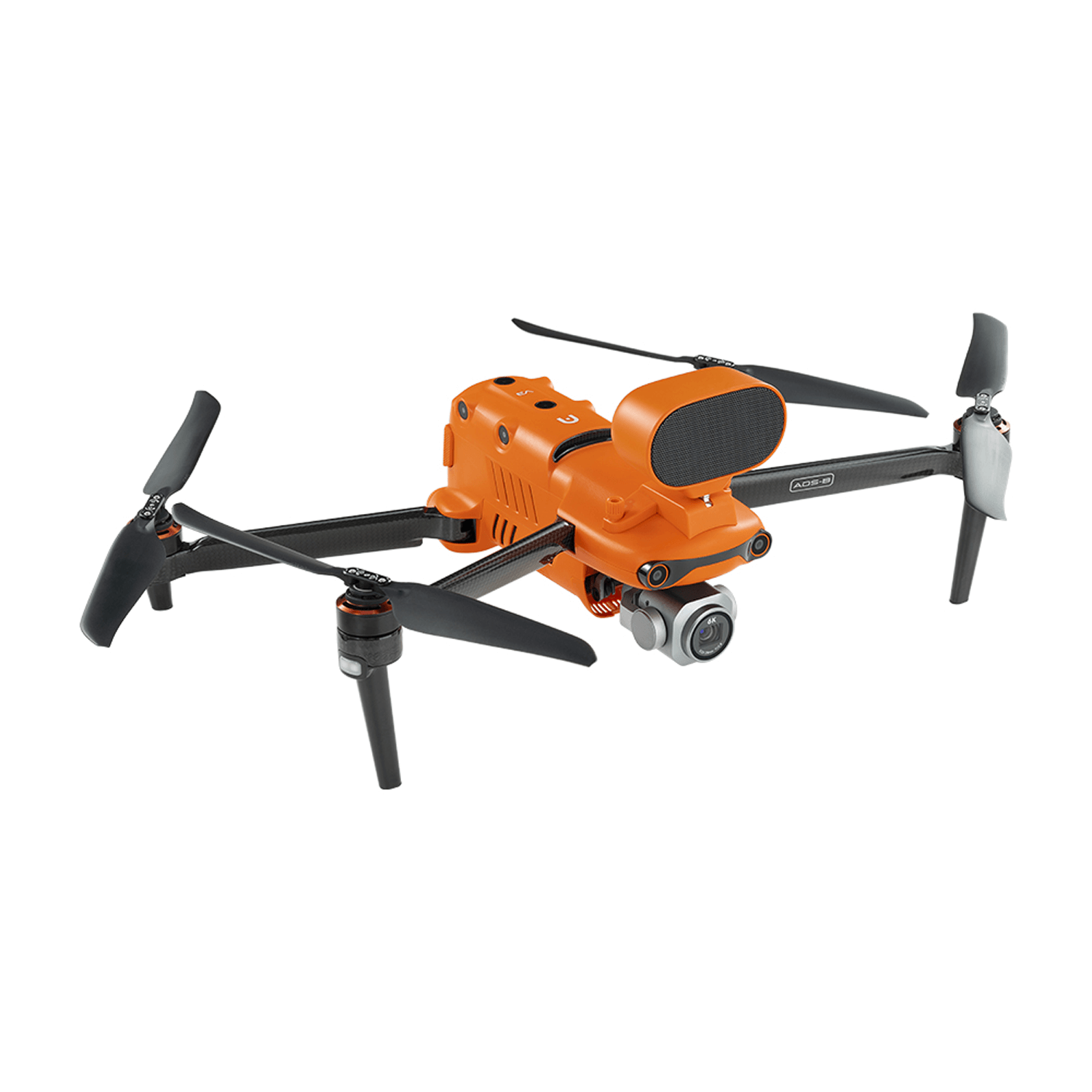

    Speaker

    Enables more effective on-site communication through long-distance telephony and audio loops.

  • •
    • Spotlight

      Beams a powerful, long-distance aerial light when searching or shooting at night.

  • •
    • Strobe

      Indicate the location of the aircraft at night to avoid air traffic accidents.

  • •
    • Speaker

      Enables more effective on-site communication through long-distance telephony and audio loops.

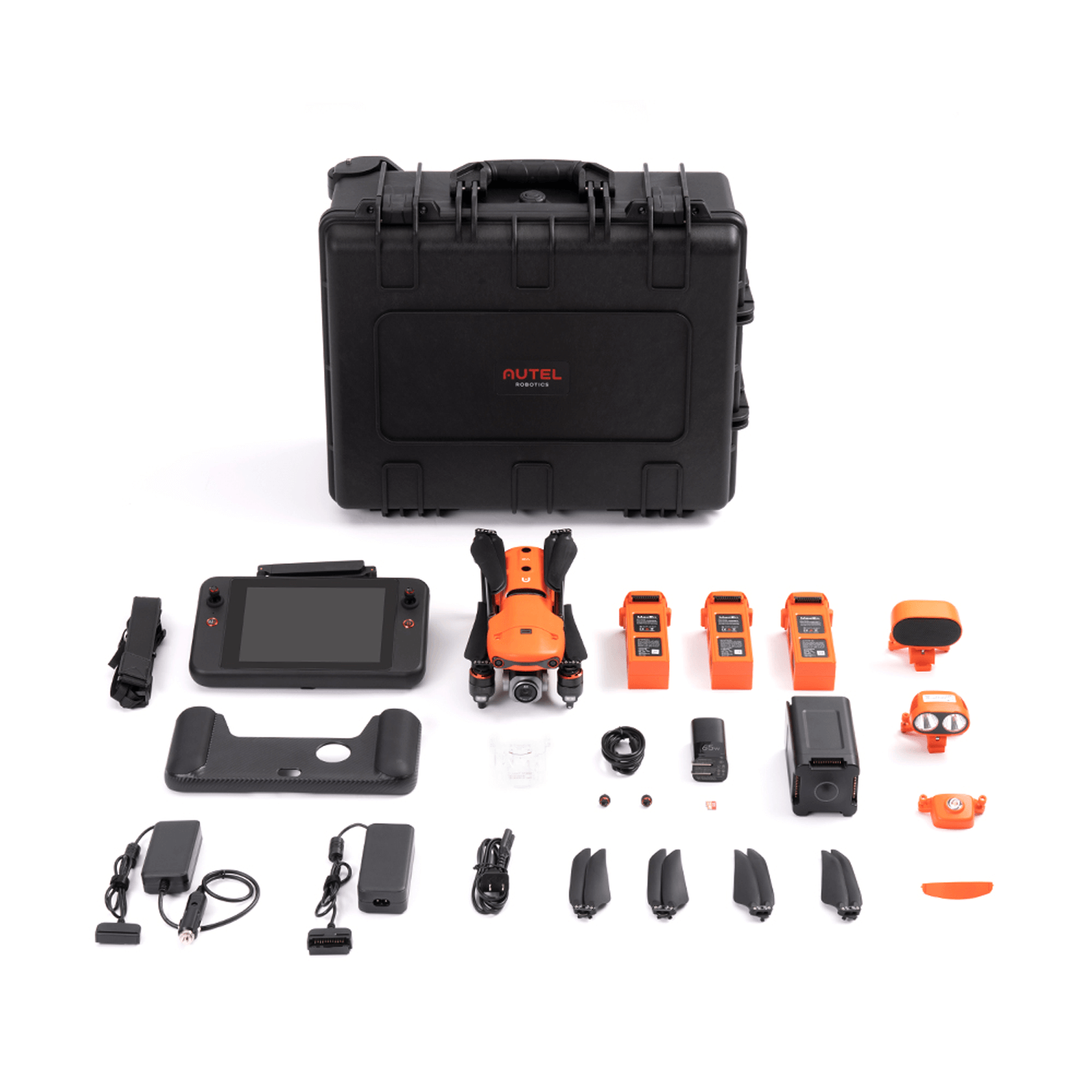

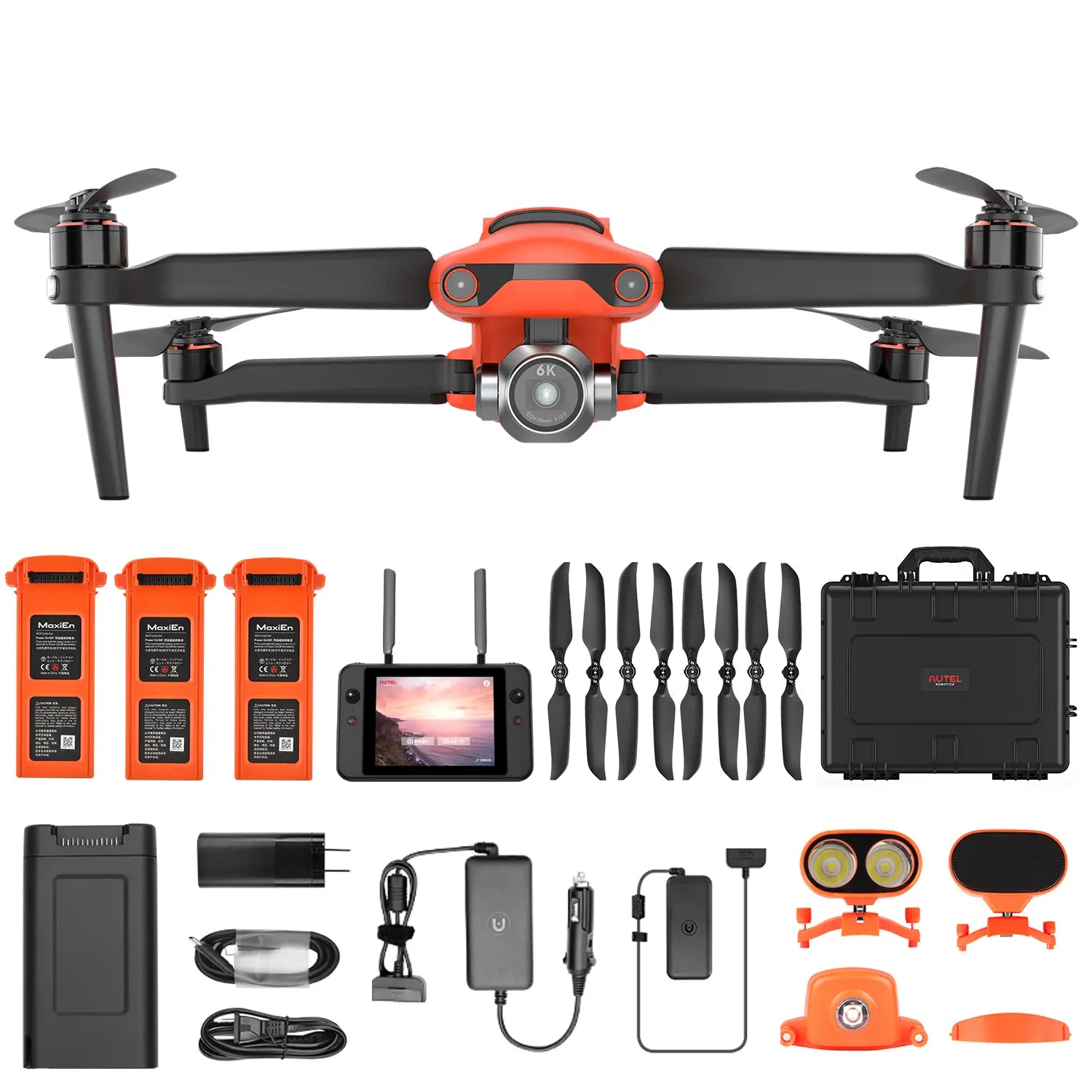

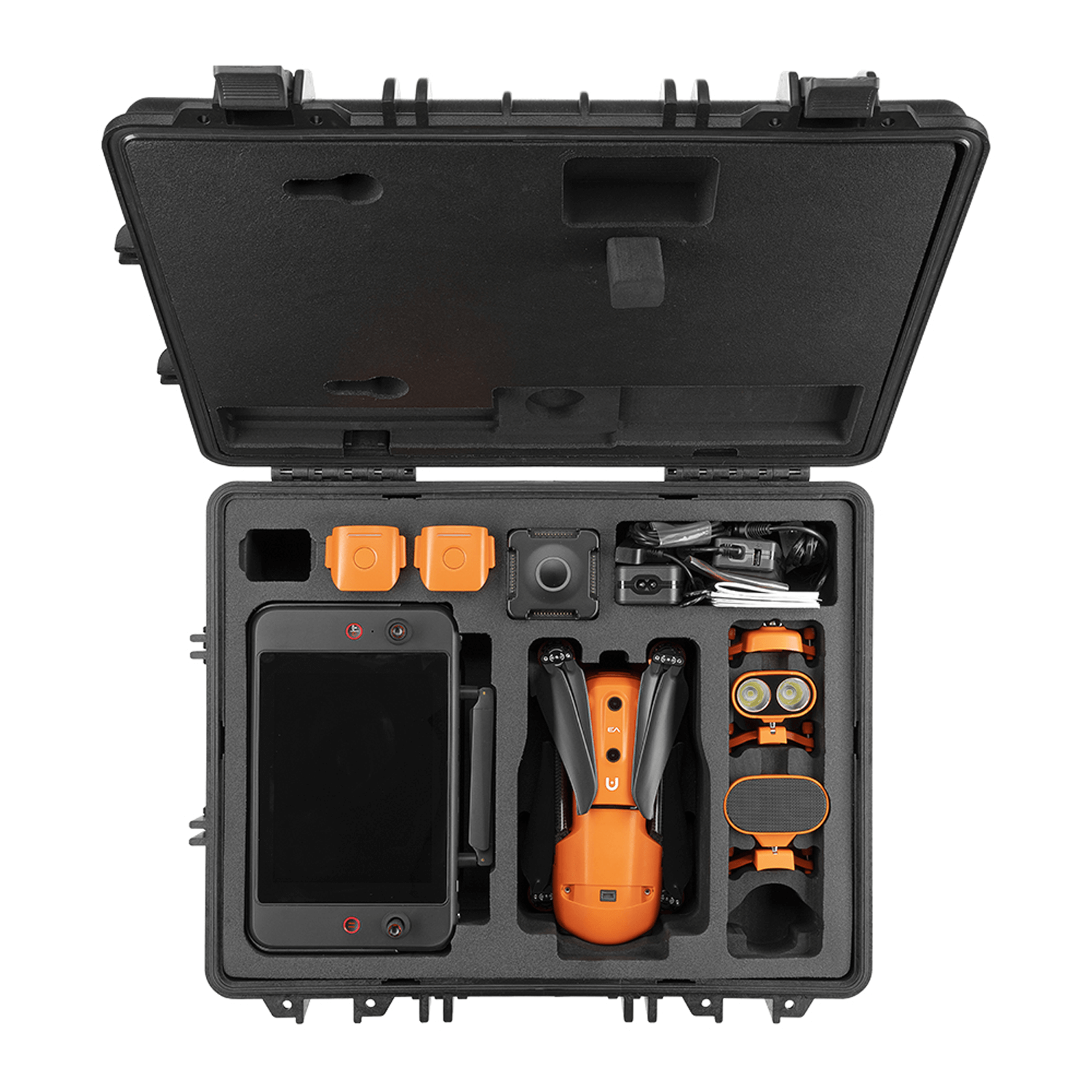

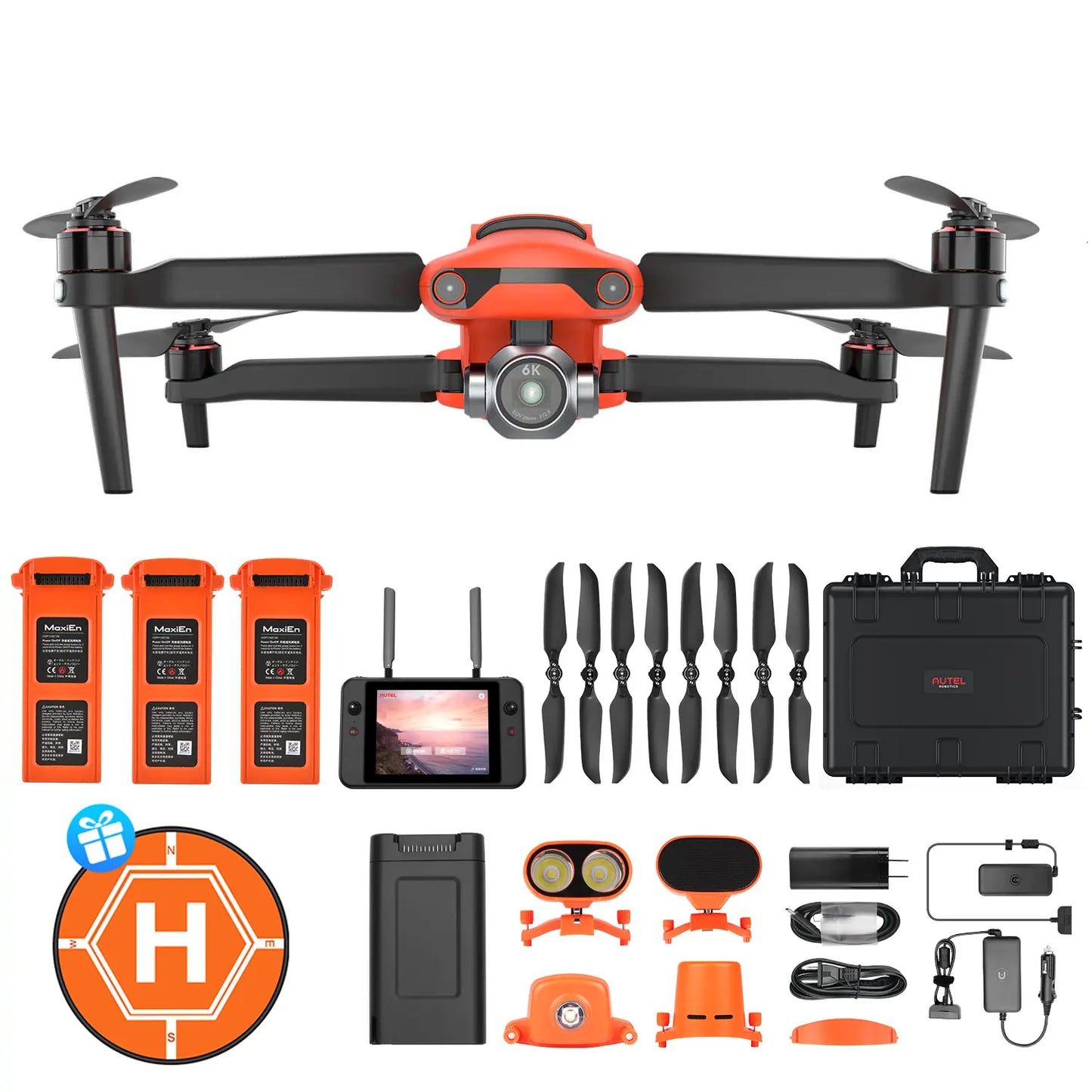

  Autel EVO II Pro Enterprise V3 Package List



  Autel EVO II Pro Enterprise Plus RTK Module V3 Package List



• Autel EVO II Pro Enterprise V3 6K Drone Specification

  Aircraft	Gimbal	Camera	Remote Controller
  Accesories	Battery	Charger	Multi-Charger

  Aircraft

  Gimbal

  Camera

  Remote Controller

  Accesories

  Battery

  Charger

  Multi-Charger

  Aircraft
  Takeoff Weight (Without Accessories)	EVO II Pro Enterprise V3 Enterprise：2.45lbs (1110g) EVO II Dual 640T Enterprise：2.51lbs (1136.5g)
  Max Takeoff Weight	1999 g
  Diagonal Length	16.8 inches (427 mm)
  Size(L*W*H)	Folded: 9.6*5.1*4.4 inches; 245*130*111mm Unfolded: 19.9*24.4*4.4 inches; 506*620*111mm
  Max Takeoff Altitude	4.3 miles (7000 m) MSL
  Max Ascent Speed	18 mph (8 m/s) (Ludicrous)
  Max Descent Speed	9 mph (4 m/s) (Ludicrous)
  Max Level Flight Speed	45 mph (20 m/s) (Ludicrous)
  Max angular velocity	120°/s
  Max tilt angle	33° (Ludicrous)
  Max Flight Time (no wind)	42 min（without accessories）
  Max Hovering Time (no wind)	38 min(with strobe) 29 min(with spotlight) 34 min(with loudspeaker) 36 min(with RTK module)
  Operating Temperature Range	14℉ to 104℉ (-10℃ to 40℃)
  Max Wind Speed Resistance	27mph, 12 m/s (Take-off and landing)
  Operating Frequency	2.400 GHz - 2.4835 GHz； 5.725GHz - 5.850 GHz
  Hovering accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)
  Gimbal
  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max Control Speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°
  Camera
  Sensor	1" CMOS Effective Pixels: 20 MP
  Lens	FOV: 82° 35 mm format equivalent focal Equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity
  ISO Range	Video: 100-44000 Photo: 100-6400
  Shutter Speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1 ~ 16x (Max. 3x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR
  Maximum photo size	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
  Image Format	JPG (default) / 12bits DNG / JPG+12bits DNG
  Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
  Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  Max bitrate	120Mbps
  Supported file system	FAT32/exFAT
  Remote Controller
  *Operating Frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Max Transmission Distance(unobstructed, free of interference)	FCC: 15km CE: 7km
  Transmitter Power (EIRP)	902-928 MHz FCC:≤30dBm 2.400-2.4835 GHz FCC:≤30dBm CE：≤20dBm 5.725-5.850 GHz CE：≤14dBm
  Internal Storage	128GB
  Display screen	2048x1536 60fps
  Battery	5800mAh
  Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
  Charging time	90 minutes
  Internal Storage	ROM 128GB
  Accessories
  Strobe	Dimensions: 39*72*34 mm Weight: 19.5g Connections: Floating Connectors Power：Avg. 1.6W Controllable Range：5000m Light intensity：Min 50cd；Max 486cd；Avg. 290cd
  Loudspeaker	Dimensions:46*80*77 mm Weight: 98.5g Connections: Floating Connectors Power：Max 18W Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m； Max Bitrate：36kbps Adjustable Angle Range：0°~45°
  Spotlight	Dimensions: 48.5*72*63 mm Weight: 77g Connections: Floating Connectors Power：Max 35W Controllable Range：30m Adjustable Angle Range：0°~90° Illuminance：FOV14°, Max：11lux @ 30m Straight

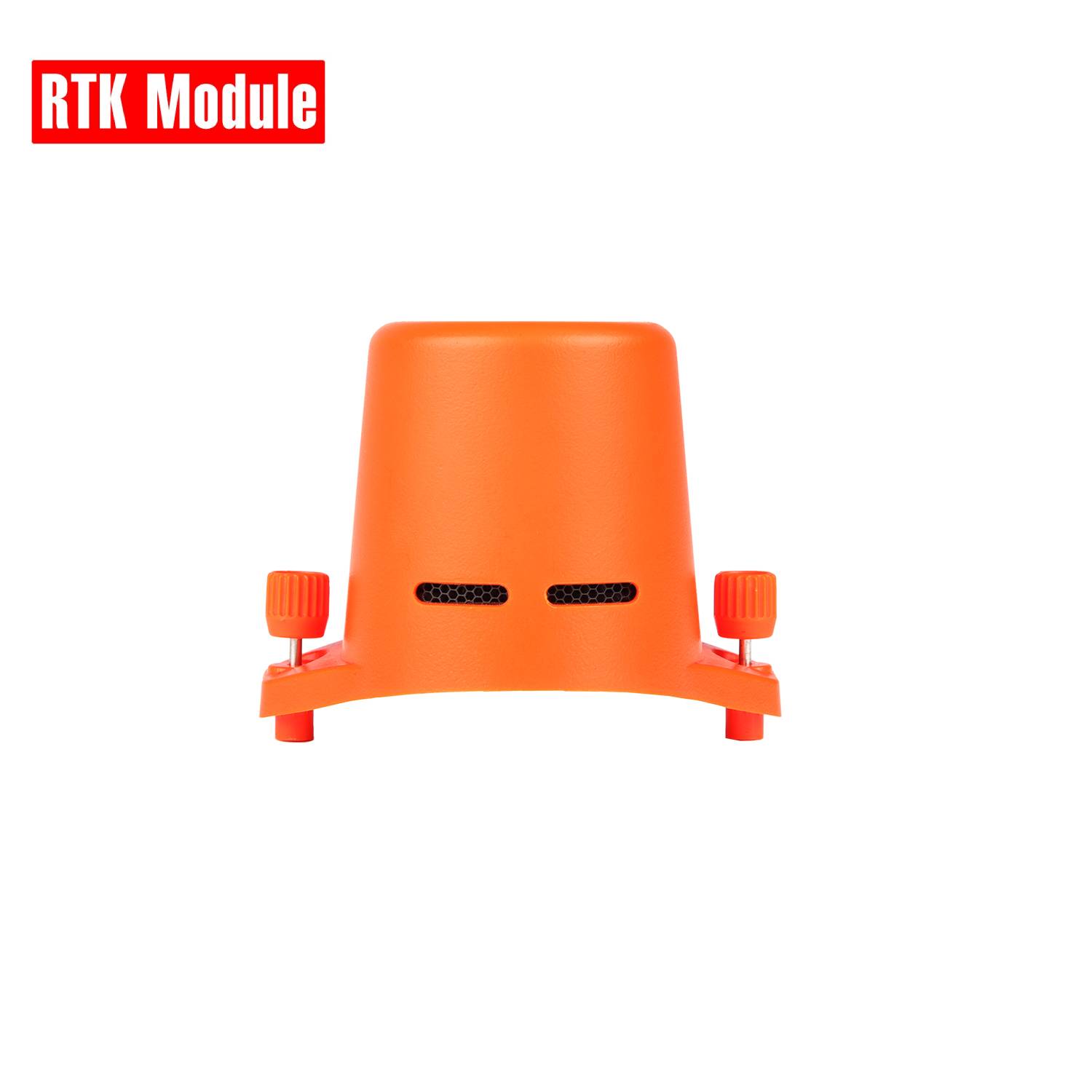

  RTK Module(sold separately)	Dimensions：55.5*72.5*57 mm Weight：59.5 g Connections：Floating Connectors Power：~ 3W RTK Positioning Precision： 1.5 cm + 1 ppm（(Vertical） 1 cm + 1 ppm（Horizontal）
  Battery
  Capacity	7100 mAh
  Voltage	11.55 V
  Battery Type	LiPo 3S
  Energy	82Wh
  Net Weight	365g
  Charging Temperature	5~45℃
  Storage Temperature & Humidity	-10~30℃，65±20%RH
  Recommended Storage Temperature	22~28℃
  Max Charging Power	93 W
  Charging Time	90 mins
  Charger
  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2 ± 0.1 V
  Rated Power	66 W
  Multi-Charger
  Voltage	13.2 V
  Charging temperature range	5℃ to 45℃

• Autel EVO II Pro Enterprise V3 Package List



  Autel EVO II Pro Enterprise Plus RTK Module V3 Package List



• Name	Download
  EVO II Pro Enterprise V3 Brochure - EN.pdf
  Specs For Autel EVO II Pro Enterprise V3 - EN.pdf
  Autel Smart Controller V3 Brochure
  Specs For Autel Smart Controller V3
  Autel Live Deck 2 Brochure
  Specs For Autel Live Deck 2

• Autel Robotics EVO II Enterprise Series Quick Questions & Quick Answers



  Q: What is the main difference between the Enterprise drones and other products in the EVO II series?

  A: Compared with other products in the EVO II series, it mainly adds industry expansion accessories (spotlight, loudspeaker, strobe, Optional RTK modules).



  Q: What remote control does the Enterprise drone use?

  A: The EVO II V3 Enterprise drones comes standard with an Autel smart control v3, equipped with a 7.9-inch retina touch screen, using True Tone display technology, with a resolution of 2048*1536 and a maximum brightness of 2000nit, four times that of ordinary mobile devices. And it is compatible with other models of EVO II V3 series drones.



  Q: How many communication frequency bands does the remote control support?

  A: 902-928 MHz; 2.400-2.4835 GHz; 5.725–5.850 GHz.
  *Working frequency bands vary by country and model.



  Q: What is the working range of the spotlight?

  A: It can assist the camera to shoot within about 30 meters.



  Q: Can the intensity of the spotlight be adjusted?

  A: There is a spotlight icon in the lower left corner of the image transmission interface, and you can click to turn off/on the spotlight or select the intensity of irradiation.



  Q: What is the loudness of the loudspeaker?

  A: After testing, in an environment of 65db, the sound intensity of the drone at different distances from the test point is: 120dB@1m; 88dB@60m; 70dB@110m.



  Q: What is the effective distance of strobe?

  A: Depending on the actual environment, the maximum distance can be up to 5000 meters.



  Q: How to replace the expansion accessories?

  A:
  Disassembly accessories
  1) Make sure the aircraft power is off.
  2) Loosen the screws on both sides of the accessory and remove the accessory.
  3) Insert both ends of the protective cover into the corresponding slots.

  Mounting Accessories
  1) Make sure the aircraft power is off.
  2) Gently twist to remove the protective cover of the expansion accessory interface.
  3) Align the screws on both sides of the accessory with the screw holes, and tighten the screws



  Q: How long does it take to fully charge the battery?

  A: It takes about 90 minutes to fully charge each battery.



  Q: Can the battery be used in a low temperature environment?

  A: If the battery is used in a low temperature environment, the battery life will be reduced, please arrange the flight time reasonably. To get the best performance from the battery, it is recommended to keep the battery temperature above 15 °C before flying.
