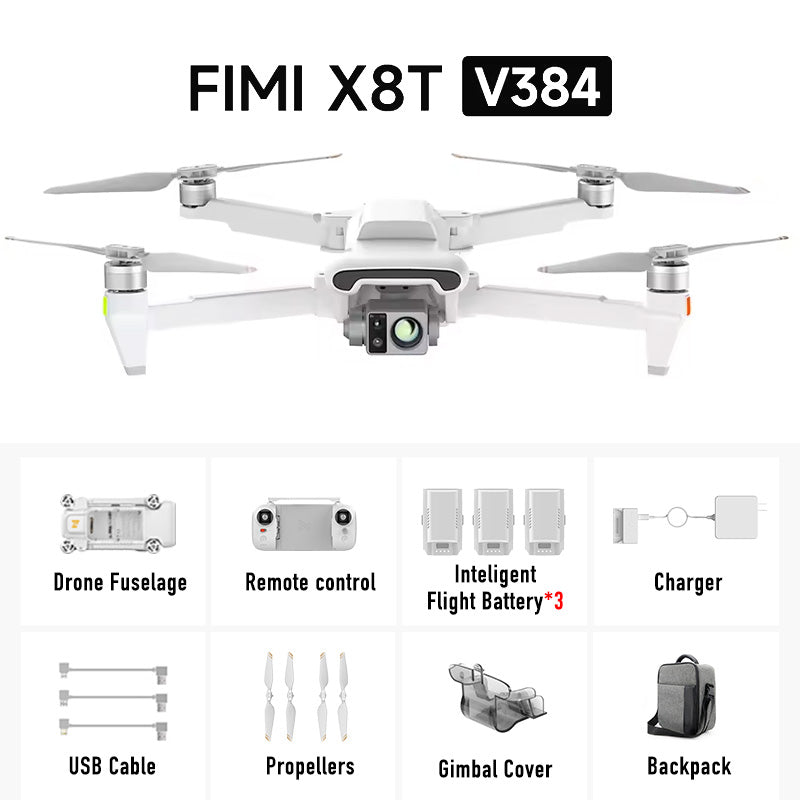

FIMI X8T Specifications:
Drone:
Dimensions (folded, without propellers): Length 204mm × Width 106mm × Height 72.6mm
Dimensions (unfolded, without propellers): Length 242mm × Width 334mm × Height 72.6mm
Takeoff Weight: Approx.750g
Diagonal Distance: 372mm
Max Ascent Speed: 5m/s
Max Descent Speed: 4m/s
Max Flight Speed: 18m/s *In a windless environment at sea level
Max Takeoff Altitude: ≤5000m
Max Hovering Time: Approximately 29 minutes *Measured with the aircraft stationary, camera parameters set to 720p/30fps, recording mode turned off, hovering at sea level altitude until the remaining battery level reaches 0%, for reference only. Actual flight time may vary; please pay attention to app prompts during actual flights.
Max Flight Time: 38/47 minutes *Measured with the aircraft flying forward at a speed of 25.2 km/h at sea level altitude, camera parameters set to 720p/30fps, recording mode turned off, until the remaining battery level reaches 0%, for reference only. Actual flight time may vary; please pay attention to app prompts during actual flights.
Max Tilt Angle: 35°
Max Wind Speed Resistance: 12m/s
Operating Temperature Range: 0~40°C
Satellite Navigation Systems: GPS/Galileo/GLONASS
Hovering Accuracy：Vertical: ±0.1m (when Vision Positioning is active); ±0.5m(when GPS is active)
Horizontal: ±0.3m (when Vision Positioning is active); ±0.5m (when GPS is active)
Expansion Port: 12-PIN data interface (female)

Remote Controller:
Product Weight: Approx.373g
Dimensions: 204 x 91 x 47mm
Operating Frequency: 2.4000 GHz-2.4835 GHz/5.725 GHz-5.850 GHz
Max Battery Life: 8 hours *Without charging the mobile device; 4 hours *Charging the mobile device(Tested with mobile device battery level above 95%, actual results may vary based on different mobile devices and their battery levels at the time of testing)
Battery Type: Li-ion
Battery Capacity: 3900mAh
Nominal Voltage: 3.7V
Input: 5V=2A
Operating Temperature Range: 0-40°C
Charging Temperature Range: 5-40°C
FIMI X8T Max Signal Effective Range, (No interference, no obstruction) FCC: Approximately 20 KM (The above data is measured in an outdoor open environment without interference and is the farthest communication distance for one-way non-return flights under various standards. Please pay attention to the app's return prompts during actual flights)
Minimum Latency: Approx.120 milliseconds
Supported Mobile Device Interface Types: Lightning, USB-C

Gimbal:
Three-axis mechanical gimbal (Pitch, Roll, Yaw)
Pitch: -115° to 40°
Roll: -40° to 40°
Yaw: -40° to 40°
Controllable Rotation Range: 10° to -90° (Pitch)
Angular Vibration Range: ±0.005°

Camera:
FIMI X8T Wide-Angle Camera:
Image Sensor: 1/2-inch CMOS
Lens: FOV 79°
Aperture: F/1.6
Format Length: 4.71mm
Format Equivalent: 24mm
Focus: 1m to infinity
Effective Pixels: 48 million
ISO Range: Video Manual 100-6000, Video Automatic 100-25600, Photo 100-6400
Shutter Speed: 1/8000s-2s
Max Photo Size: 8064×6048
Max Video Resolution: 3840×2160@60/30/25/24fps
Max Bitrate: 100Mbps
Video Format: MP4
Photo Format: JPEG/DNG
File System: FAT32/exFAT
Digital Zoom: 1-5x

FIMI X8T Camera:
Image Sensor: 1/2.5-inch CMOS
Lens: FOV 21.5°
Aperture: F/3.0
Format Lenght: 14.46mm
Format Equivalent: 120mm
Focus: 10m to infinity
Effective Pixels: 13 million
ISO Range: Video 100-6000, Photo 100-6400
Shutter Speed: 1/8000s-2s
Max Photo Size: 4000×3000
Max Video Resolution: 3840×2160@30/25/24fps
Max Bitrate: 100Mbps
Video Format: MP4
Photo Format: JPEG/DNG
File System: FAT32/exFAT
Digital Zoom: 5-30x

FIMI X8T Thermal Camera:
Thermal Sensor: Uncooled VOx Microbolometer
Lens: FOV 30.7°
Aperture: F/1.1
Focal Length: 19mm
Format Equivalent: 80mm
Depth of Field: 7.6m to ∞
Wavelength Range: 8~14um
Digital Zoom: 8x
Photo Resolution: 640x480
Photo Format: JPG
Video Resolution: 640x480 @ 30fps
Video Format: MP4
Color Palettes: White Hot, Gold, lron Red, RainbowLow Light, Aurora, Medical, jungle,Red Hot, Black Hot, Gold-Red

Intelligent Flight Battery Plus:
Capacity: 5000mAh
Weight: Approx.330g
Nominal Voltage: 14.4V
Charging Limited Voltage: 16.8V
Battery Type: Li-ion 4S
Energy: 72Wh
Charging Time: Approx.110 minutes

Main Features:
1. Wide-Angle, Tele, and Thermal Multi-Camera System：
FIMI X8T is first multi-camera system integrates a 48MP wide-angle camera, a 5x optical zoom tele camera, and a thermal camera with a 640/384 resolution.
FIMI X8T wide-angle camera features a Sony 1/2-inch sensor, supports 4K/30fps video recording, and works in tandem with the tele camera to achieve 30x hybrid zoom, capturing expansive views and distant details with precision.
FIMI X8T thermal camera, equipped with a 19mm tele lens, offers a resolution of 640*480/384*288, enabling rapid target detection to support operational decision-making. Its diverse display modes—split screen, picture-in-picture, synchronized zoom, and pseudo-color imaging—meet the needs of various scenarios such as security monitoring, industrial inspections, building diagnostics, and outdoor exploration.

2. 4K/60fps Video：
FIMI X8T Supports 4K/30fps high-speed video recording, each frame is full of lively details, and sports scenes are smoother and silkier.

3. FIMI X8T using new Generation RokLink 5.0 20KM digital Video Transmission System：
The RokLink 5.0 system features enhanced RF sensitivity and improved adjacent frequency suppression. Leveraging modern communication technologies, it supports adaptive fast frequency hopping and dynamic modulation and coding, intelligently detecting electromagnetic interference and automatically adjusting uplink and downlink bandwidth. This ensures stable and clear image transmission with a range of up to 20 km and ultra-low latency as low as 120 ms, capturing distant landscapes with an immersive experience.

4. AI Super Night Video：
FIMI X8T using latest Generation AI ISP, super photosensitive and noise reduction, improves the signal-to-noise ratio by 4 times, can challenge larger image sensors, and capture pure and translucent images in low-light environments at night.

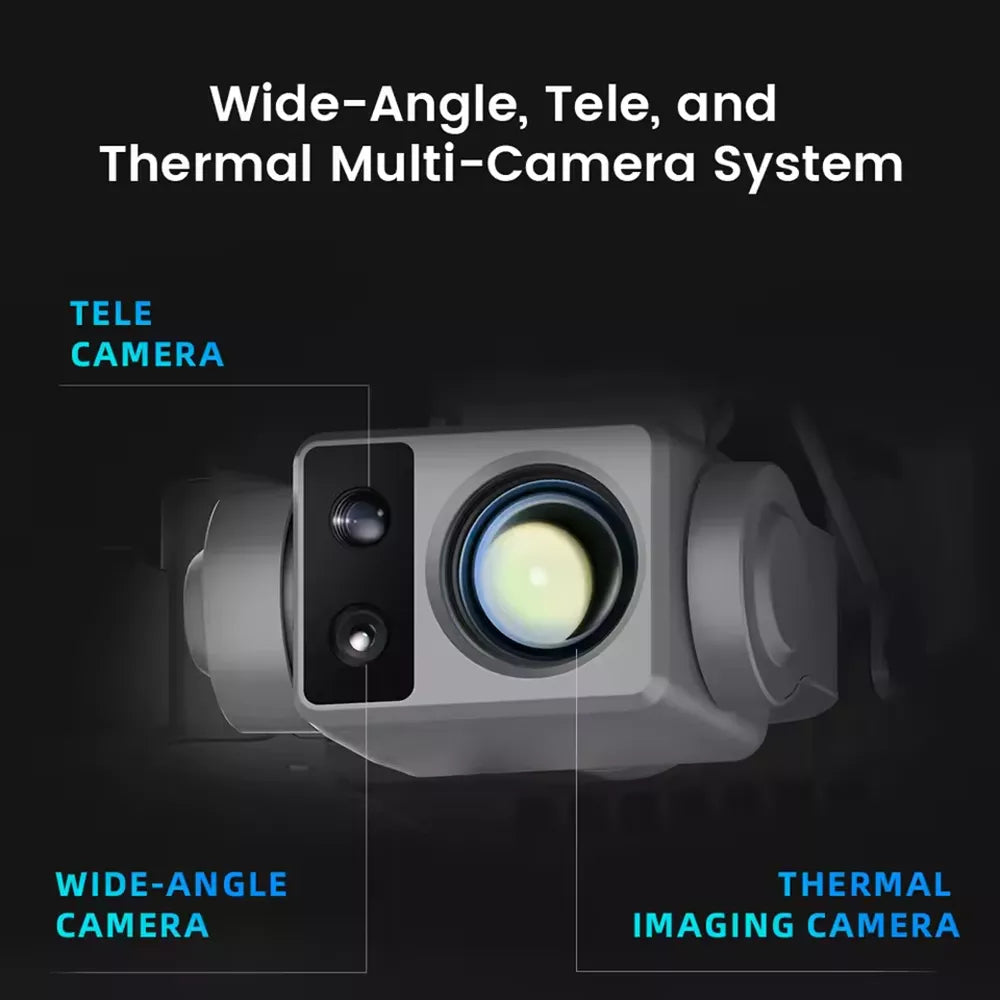

Wide-Angle, Tele, and Thermal Multi-Camera System:
FIMI X8T is first multi-camera system integrates a 48MP wide-angle camera, a 5x optical zoom tele camera, and a thermal camera with a 384/640 resolution.

FIMI X8T wide-angle camera features a Sony 1/2-inch sensor, supports 4K/30fps video recording, and works in tandem with the tele camera to achieve 30x hybrid zoom, capturing expansive views and distant details with precision.
FIMI X8T thermal camera, equipped with a 18mm/19mm tele lens, offers a resolution of 384*288/640*480, enabling rapid target detection to support operational decision-making. Its diverse display modes—split screen, picture-in-picture, synchronized zoom, and pseudo-color imaging—meet the needs of various scenarios such as security monitoring, industrial inspections, building diagnostics, and outdoor exploration.

Split-Screen Display:
FIMI X8T Thermal imaging and visible light camera feeds are displayed side by side, enabling intuitive comparison and analysis to significantly improve operational efficiency.

Picture-in-Picture:
FIMI X8T Thermal imaging and visible light images are displayed simultaneously, allowing operators to monitor thermal data in real-time for more accurate environmental assessments.

Synchronized Zoom:
FIMI X8T thermal imaging camera's 8x zoom function works in tandem with the visible light camera, providing seamless zooming and efficient operation while capturing every detail.

Pseudo-Color Display
Enhances recognition efficiency and visual contrast in thermal images, enabling efficient and precise task execution even in complex environments.

48 Million Pixels Photos:
Native 48 million pixels photos effortlessly capture more detailed and vivid images, providing a clearer and more spectacular aerial photography experience.

4K HDR Videos Recording:
Capture ultra-high-definition 4K HDR videos, wide dynamic range rendering enhances the contrast of the scene's light and shadow, revealing richer details and color layers. The result is a more vivid and immersive graphic experience, as if being present in the moment.

4K/30fps Video:
FIMI X8T Supports 4K/30fps high-speed video recording, each frame is full of lively details, and sports scenes are smoother and silkier.

3-Axis Mechanical Gimbal:
FIMI X8T advanced three-axis mechanical stabilization gimbal with next-generation lOS algorithm.Featuring high-precision control and integrated high-performance brushless motors, this cutting-edge gimbal ensures rapid responsiveness and control accuracy of up to ±0.01°. Its advanced stabilization algorithm and automatic tracking functionality guarantee optimal shooting and observation across various scenarios.

New Generation RokLink 5.0 20KM digital Video Transmission System:
FIMI X8T RokLink 5.0 system features enhanced RF sensitivity and improved adjacent frequency suppression. Leveraging modern communication technologies, it supports adaptive fast frequency hopping and dynamic modulation and coding, intelligently detecting electromagnetic interference and automatically adjusting uplink and downlink bandwidth. This ensures stable and clear image transmission with a range of up to 20 km and ultra-low latency as low as 120 ms, capturing distant landscapes with an immersive experience.

Remote Controller:
The FIMI X8T remoter controller was designed to be both original and ergonomic, offering better grip and comfort. Equipped with detachable joysticks and a stretchable body, the controller is compatible with all smartphones and even tablets, including the iPad mini.

AI Super Night Video:
FIMI X8T latest Generation AI ISP, super photosensitive and noise reduction, improves the signal-to-noise ratio by 4 times, can challenge larger image sensors, and capture pure and translucent images in low-light environments at night.

Smart Tracking Mode:
FIMI X8T Equipped with 2T AI computing power, capable of intelligent recognition of over 30 targets, including people, cars, boats, animals, and more. It can instantly lock onto and track the selected target in real-time.

Smart Distance Measurement:
The FIMI X8T integrates advanced distance measurement technology with high-precision sensors, enabling accurate display of flight altitude and return distance even without GPS. This ensures reliable flight data and provides robust safety assurance for diverse mission scenarios.

Accessory Port:
This port allows for more DIY possibilities. It is compatible with a variety of accessories, including the megaphone module, allowing you to have more fun when flying.
* Megaphone module is optional.

Rainproof and Snow-proof:
FIMI X8T With an enhanced rain and snow-resistant design, flights are no longer limited by weather conditions. The downward auxiliary light provides directional guidance, ensuring safe flight and worry-free return, even in rain or snow.

Circular Flights:
Free your hands and enjoy precise circular flights.

Flight Planning:
Preset your flight routes for shooting or task planning. A snapshot is a masterpiece.

Smart Tracking Mode:
Equipped with 2T AI computing power, capable of intelligent recognition of over 30 targets, including people, cars, boats, animals, and more. It can instantly lock onto and track the selected target in real-time

Panorama:
Create pictures from an omniscient viewpoint with just one tap.
Landscape 180° panorama/Portrait 180° panorama/3x3 rectangular square panorama

Timelapse:
Bring more inspiration with your time lapse footage.Free/Focus/Waypoint

Search and Rescue Mode:
FIMI X8T its lightweight design, the device supports 20km long-range image transmission and up to 47 minutes of flight time. Equipped with a 640×480 resolution thermal imaging camera and precise GNSS positioning, it excels in quickly locating and locking onto targets, making it the ideal choice for SAR (Search and Rescue) missions.

Precision Landing:
FIMI X8T Features a Professional Visual Imaging System, equipped with a newly upgraded downward vision system, it can intelligently recognize landing pads, enabling more precise landings.

APP:
Scan the QR code or download the FIMI Navi 3.0 APP from app store. Share live aerial videos with friends via social media platforms. Newly designed UI that is more intuitive to use and plug-and-play between the remote controller and a mobile device through an OTG cable means no more complicated settings.
