Elephant Robotics myPalletizer All-in-one Suite: The Most Compact 4-Axis Robotic Arm
Elephant Robotics myPalletizer All-in-one Suite: The Most Compact 4-Axis Robotic Arm
The new series - myPalletizer 4-axis robotic arm, jointly produced with M5STACK, is the world's first fully wrapped 4-axis robot arm, with an overall Fin-less design, safety wrapping, compact and easy to bring it everywhere.
The weight of myPalletizer is 960g with a payload of 300g and a working radius of 260mm. It is specially designed for makers and STEM educators. It also has rich expansion interfaces and unlimited development possibilities. Users can explore the cutting-edge scientific and technological knowledge of robots by applying varieties of AI kits, machine vision kits, composite robots kits, etc., and share inspiring innovative thinking.
Features

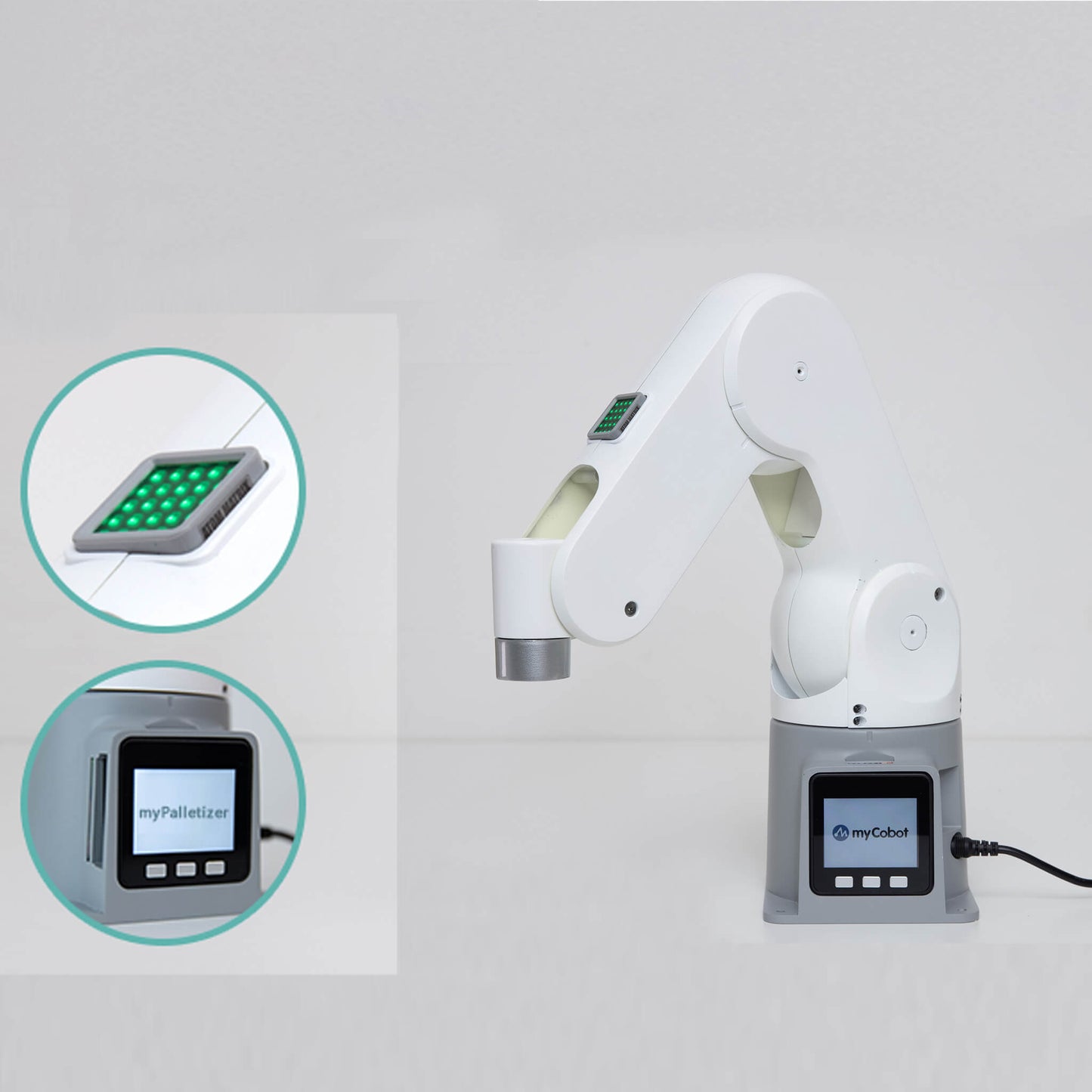

Dual-screen user interaction, Fully-wrapped
- The robotic arm carries two display screens, which is easy to expand the interactive output of the application, and the gameplay is unlimited.
-
World’s first 4-axis full-body wrapped robotic arm, safe to use.

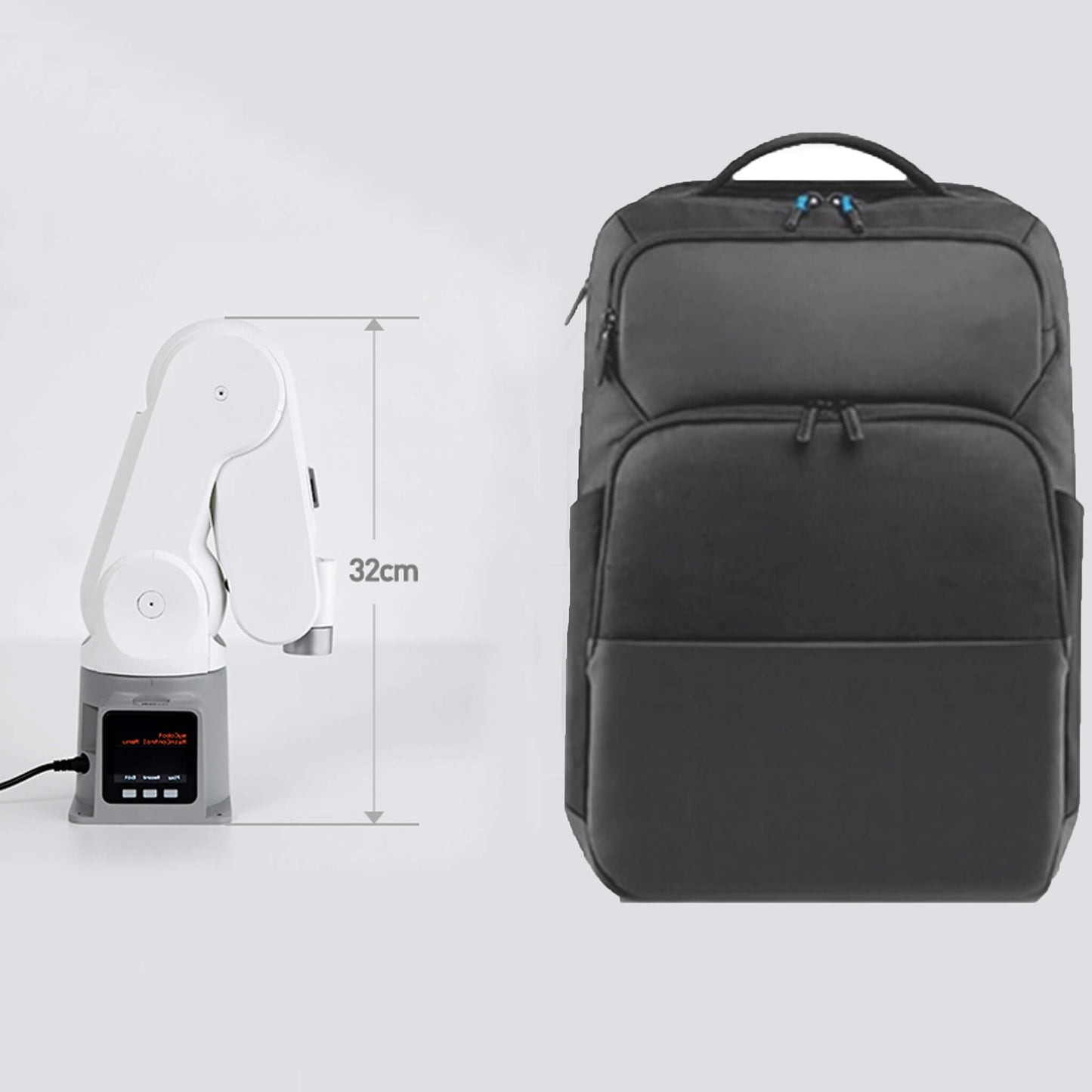

Fin-less design small and compact
- The motor-removing fin-less design can easily fit your Palletizer into the backpack, this innovative design makes it stands out from other traditional education 4-axis robotic arm.
LEGO ecology, expandable compatibility
- The patented Lego hole design is shared globally, my series hardware ecological platform concept is implemented, and the end accessories are plug-and-play.

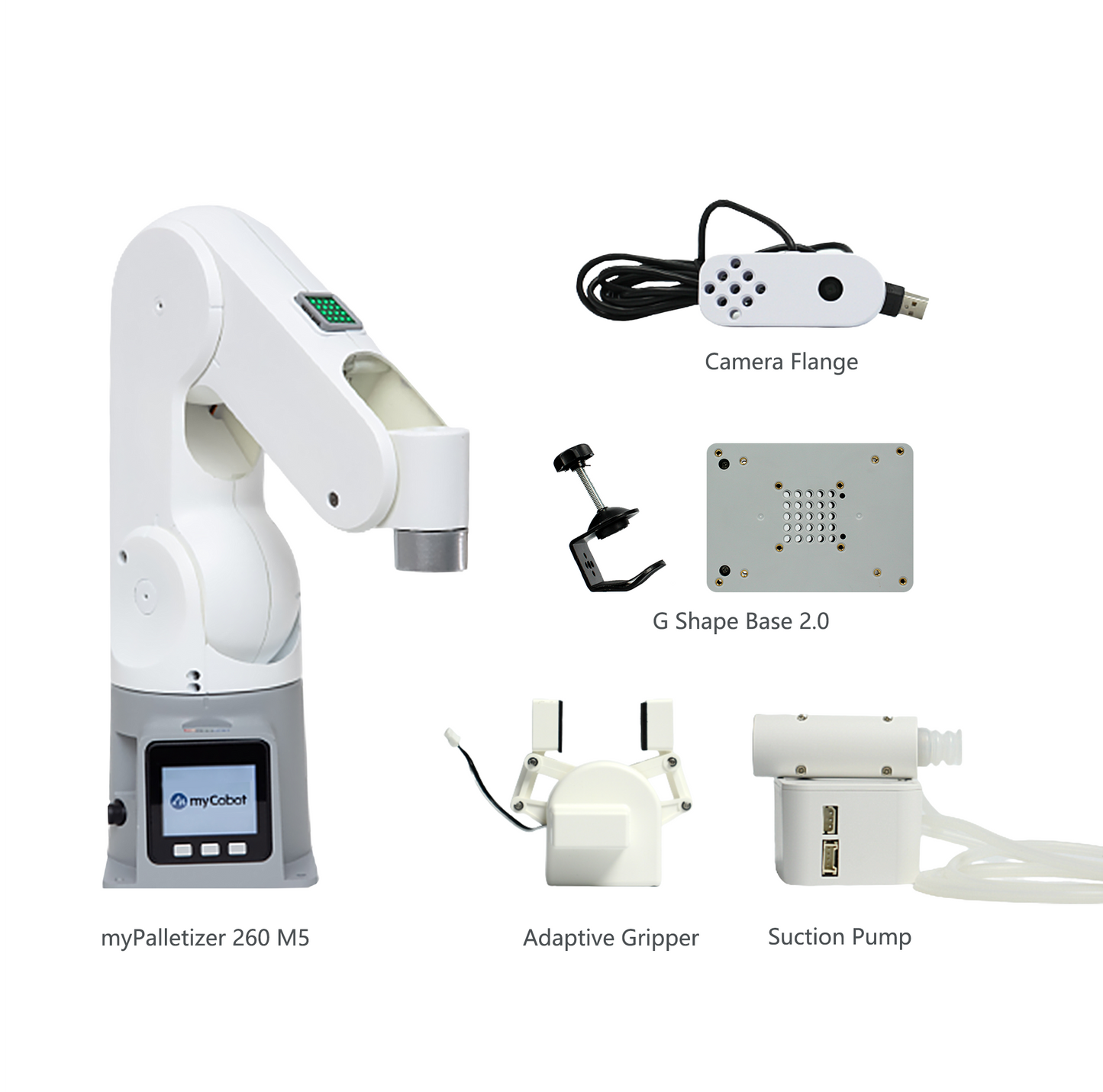

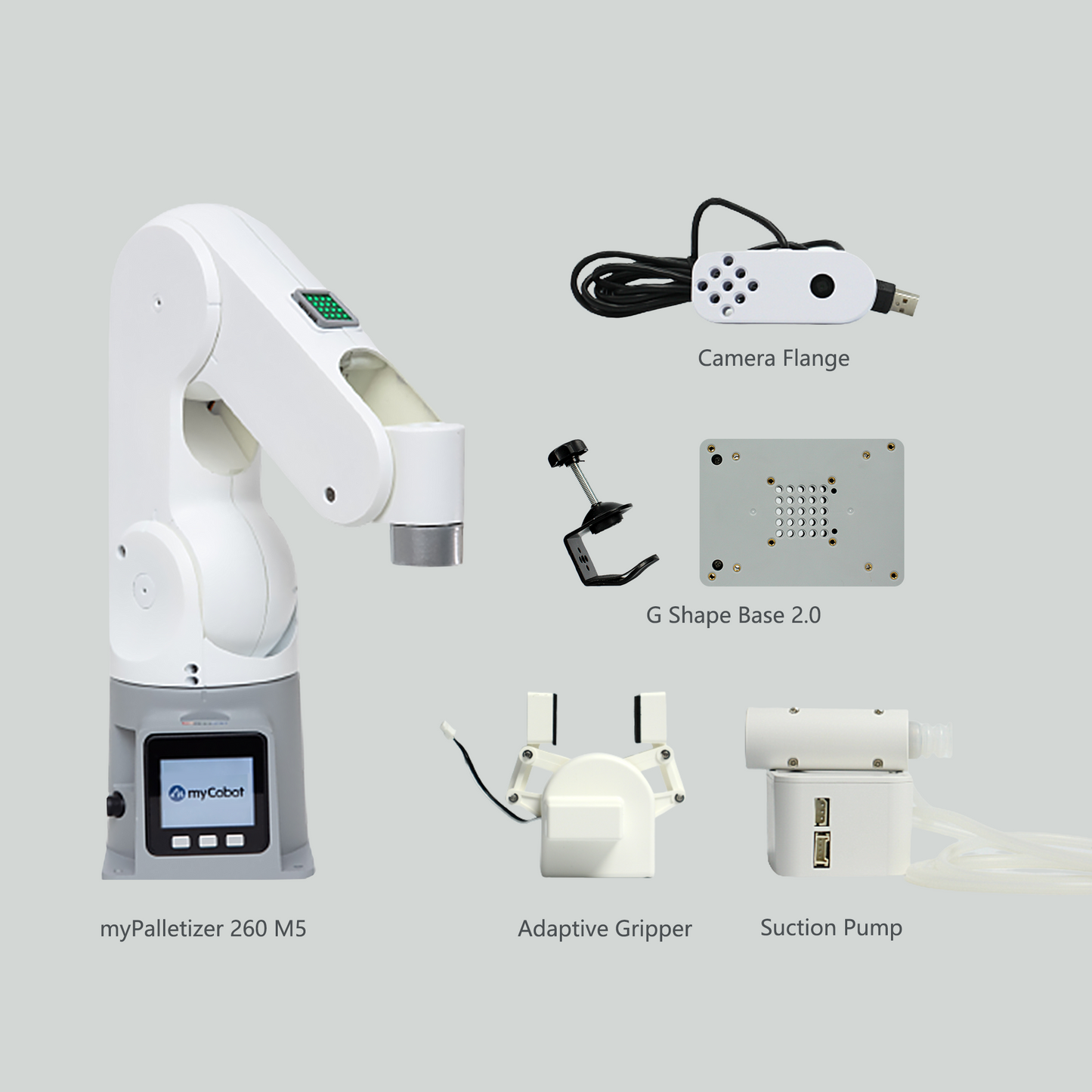

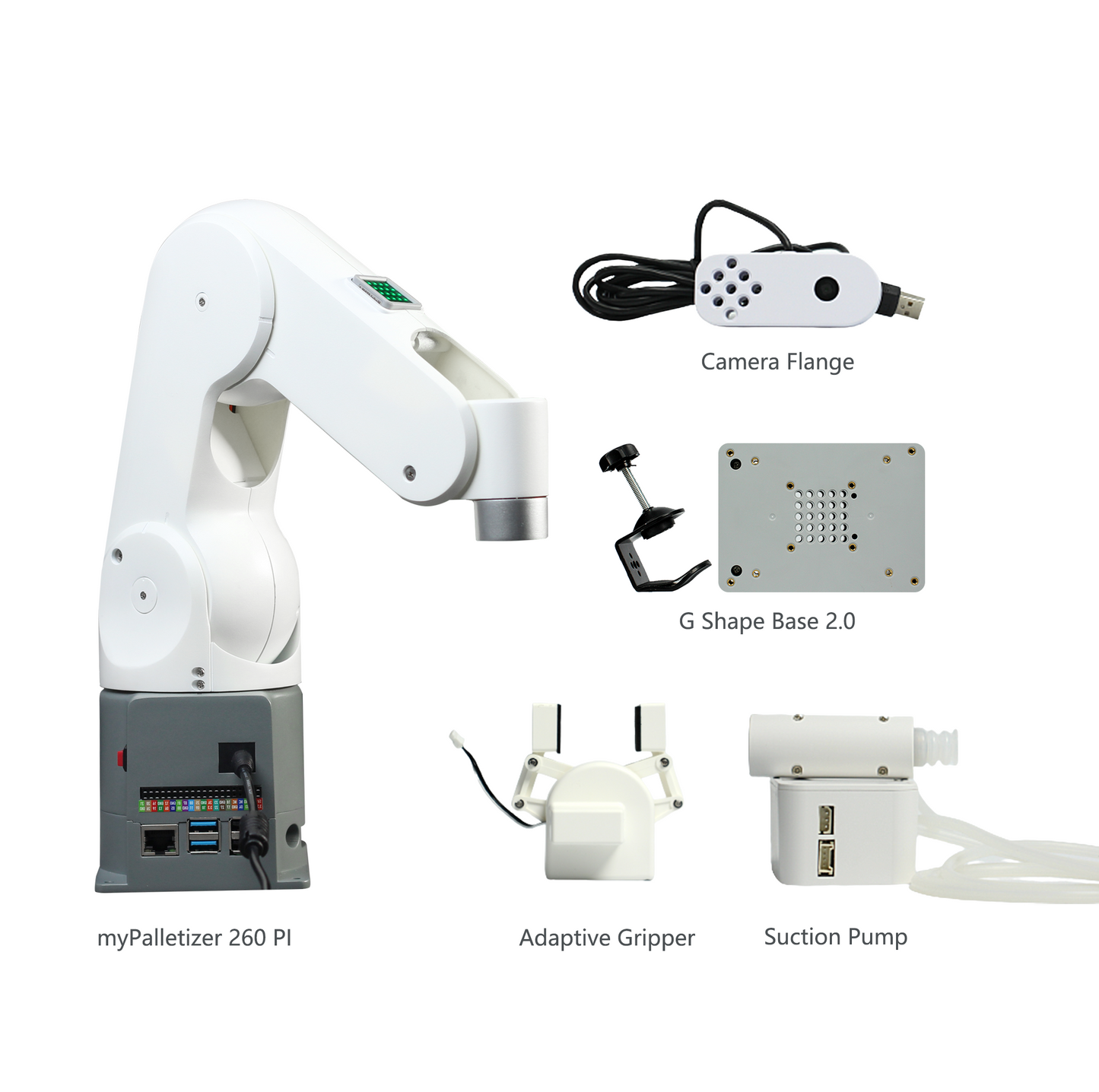

- Fit with all accessories of My series, implementing the concept of my series hardware ecological platform including griper, suction pump, and more, unlimited imagination.
PARAMETERS
Four degrees of freedom joint motion, 260mm radius of motion, to help achieve your ideal control
EXCELLENT CONFIGURATION
myPalletizer is equipped with complicated and intelligent configuration, which highly satisfies your demands of
creative secondary developments. .

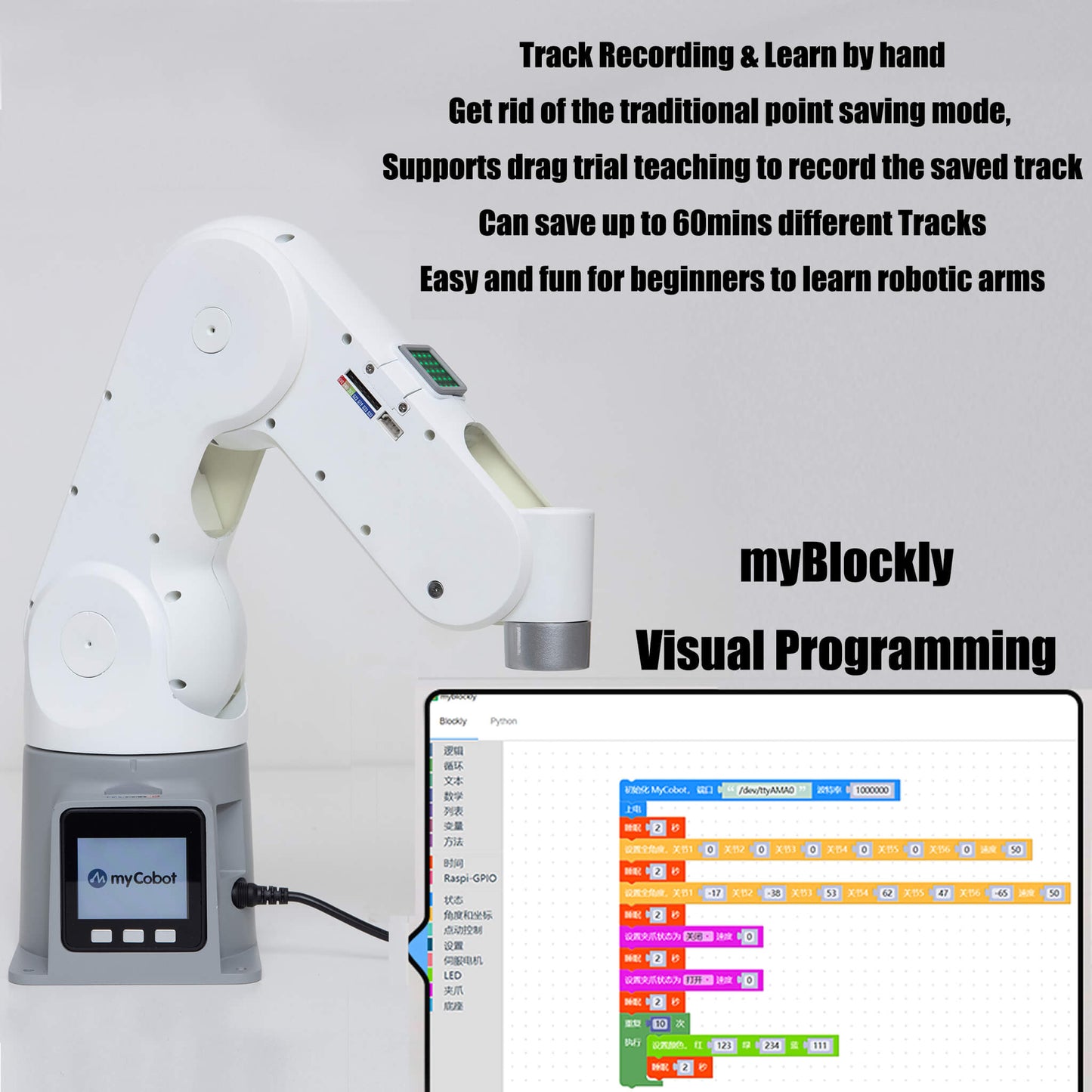

EASY TO GET STARTED
It is easy to get started and use, and the graphical programming language allows you to easily start the journey of using the robotic arm..

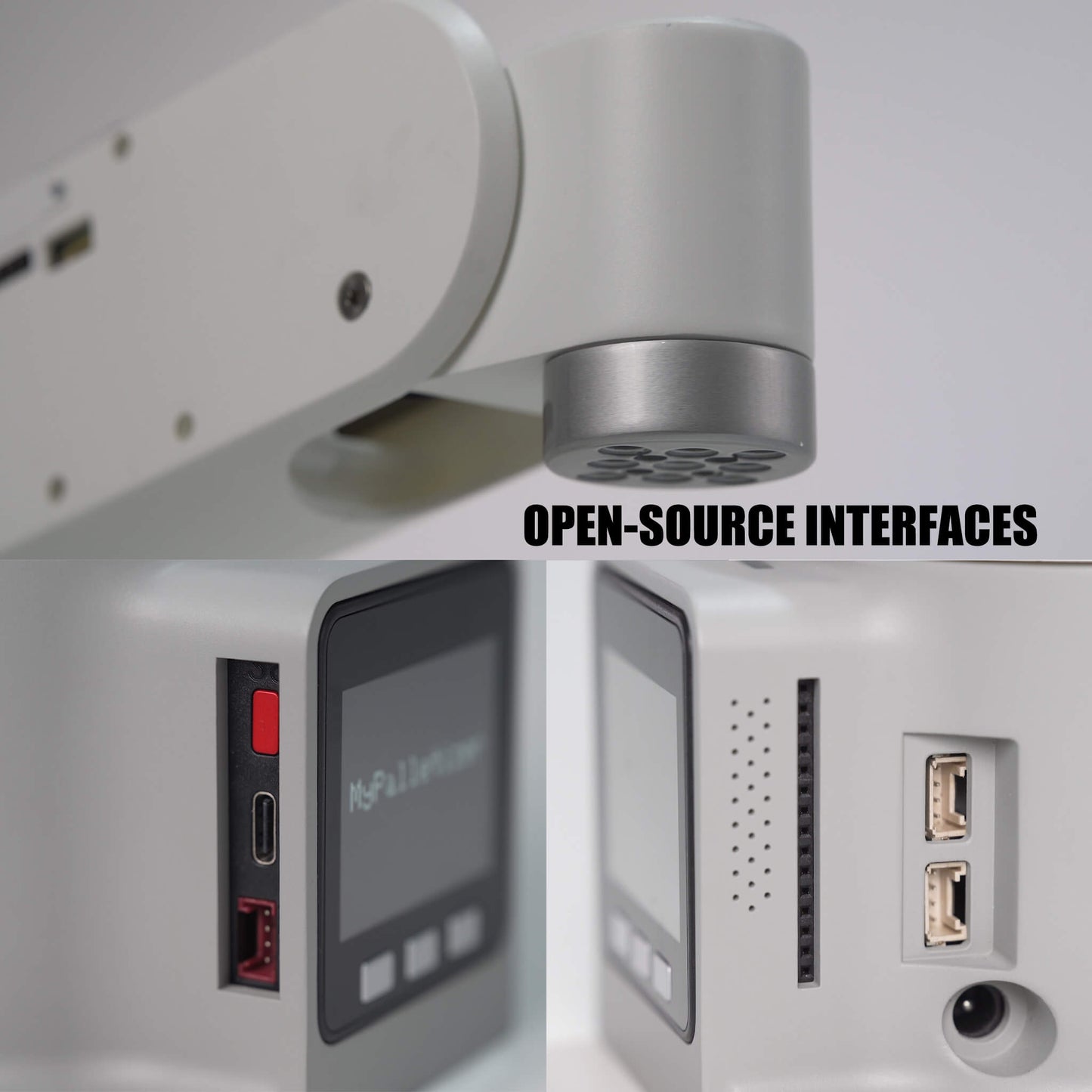

OPEN-SOURCE INTERFACES
Based on different kinds of applications, open-source to its interfaces and enables to achieve objects recognition, facial recognition, image recognition etc.
ROS SUPPORTING
Developing in ROS - the world's mainstream robot communication framework, you can control myPalletizer and conduct algorithm verificationin under a virtual environment, which reduces the requirements for the experimental environment and improves the experimental efficiency.

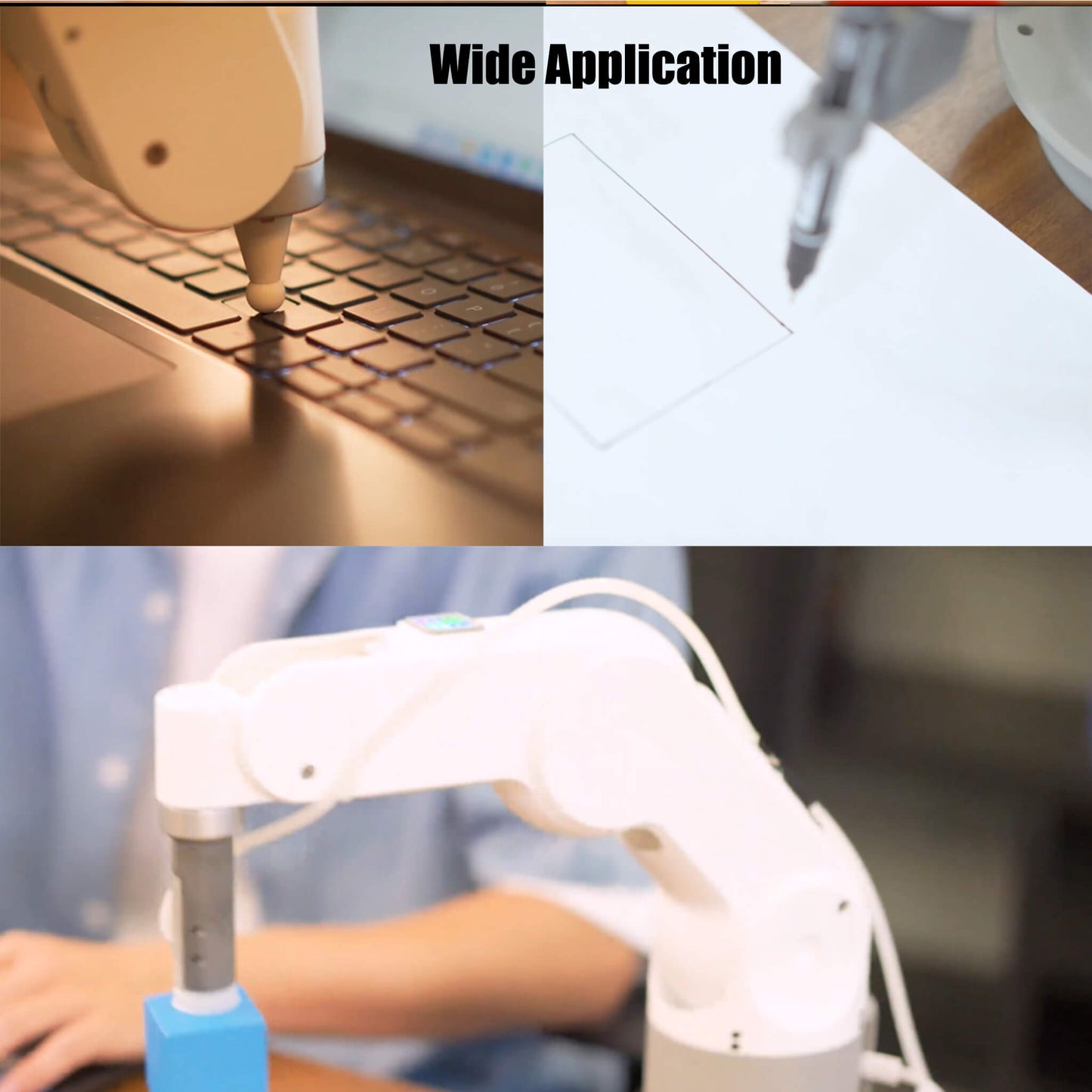

Application
Intelligent palletizing
Simulate industrial robot arms, realize multiple palletizing applications, build your own mini smart warehouse, and realize more innovative thinking.
Recognition and grabbing
The perfect combination of robotic arm and art creates unlimited possibilities.
Writing, drawing, and touching
Continuously print out photos, the perfect combination of artistic creation and robot.
Compound robot
Compound robots with AGVs, allow working space to be fully expanded, enabling the completion of more tasks.
Specifications
| Product | myPalletizer |
|---|---|
| Model | myPalletizer 260 |
| Degree of Freedom | 4 |
| Repeatability | ± 0.5mm |
| Payload | 250g |
| Weight | 960g |
| Working radius | 260mm |
| Power Input | 8.4 ~ 12V 5A |
| Motor type | High precision magnetic encoder servo motor |
| Max speed | 120°/ S |
| Control | M5Stack Basic |
| Communication | USB / type-C |
| Material | Photosensitive resin SLA |
myPalletizer 260 M5 Unboxing
Warranty
- Return service is limited to goods not opened within 7 days after the receipt date of logistics of the products. The freight or other risks incurred in return shall be borne by the customer.
- Customers should provide the purchasing invoice and warranty card as the warranty certification when a warranty is being asked.
- Elephant Robotics will be responsible for the hardware faults of products caused by normal use during the warranty period.
- The warranty period starts from the date of purchase or the receipt date of the logistics.
- The faulty parts from the products will be owned by Elephant Robotics, and the appropriate cost will be charged if necessary.
If you need to apply for warranty service, please contact our customer service first to confirm the detailed information.
During the warranty period of the delivered product, the company only repairs the malfunctions that occur during the normal use of the robot for free. However, in the following cases, the customer will be charged for repairs (even during the warranty period):
- Damage or malfunction caused by incorrect use and improper use different from the contents of the manual.
- Failure caused by unauthorized disassembly by the customer.
- Damage caused by improper adjustment or unauthorized repairs.
- Damage is caused by natural disasters such as earthquakes and floods.
Warranty Terms of Detailed Components
- Servo motor
| Warranty Period | Warranty Services |
| ≤1 month | Elephant Robotics offers a free new servo motor and bear the freight. |
| 1-3 months | Elephant Robotics offers a free new servo motor, customs shall bear the freight. |
| ≥3 month | Customers need to buy it themselves. |
- Electrical Parts（M5Hardware）
| Warranty Period | Warranty Services |
| ≤3 months | Customers need to send it back after disassembly, Elephant Robotics shall send a new one for free and bear the freight out and home. |
| 3-6 months | Customers need to send it back after disassembly and bear the freight out and home, Elephant Robotics shall send a new one for free. |
| ≥6 months | Customers need to buy it themselves. |
- Structure Parts，including shell parts
| Warranty Period | Warranty Services |
| ≤12 months | Elephant Robotics offers free new components, customs shall bear the freight. |
| ≥12 months | Customers need to buy it themselves. |
