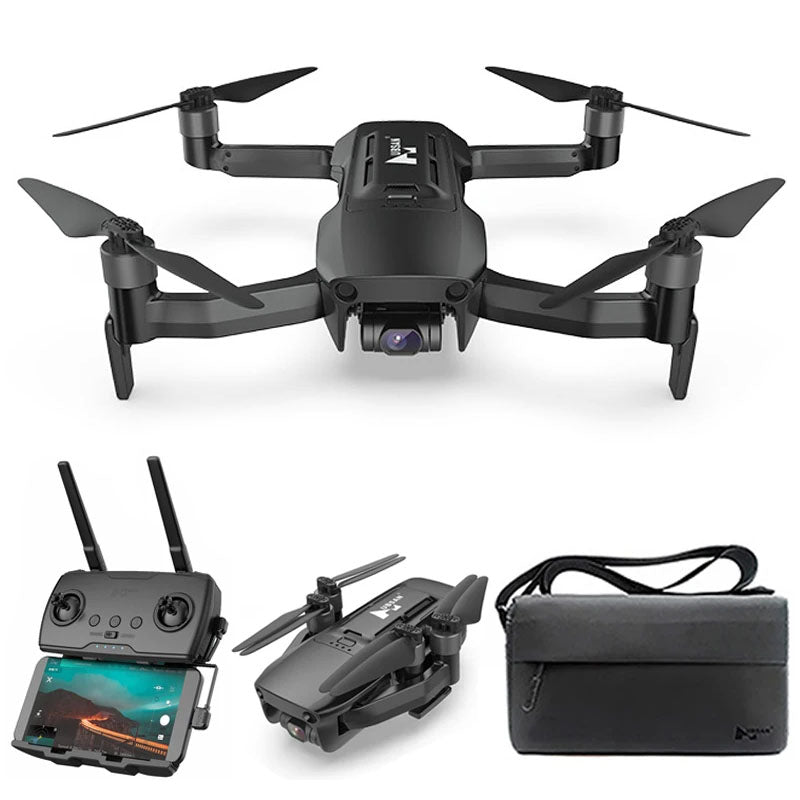

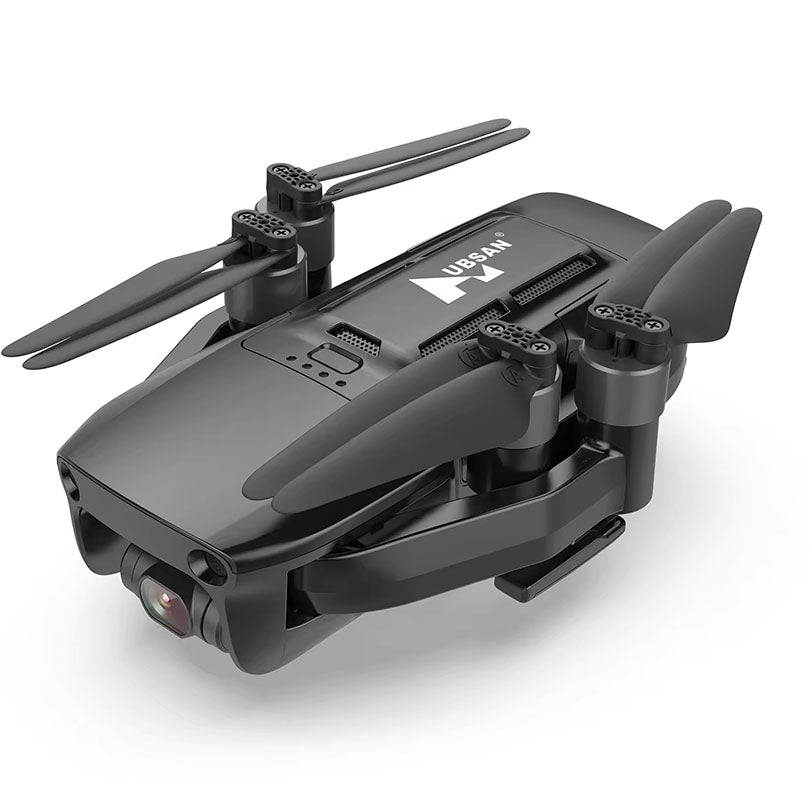

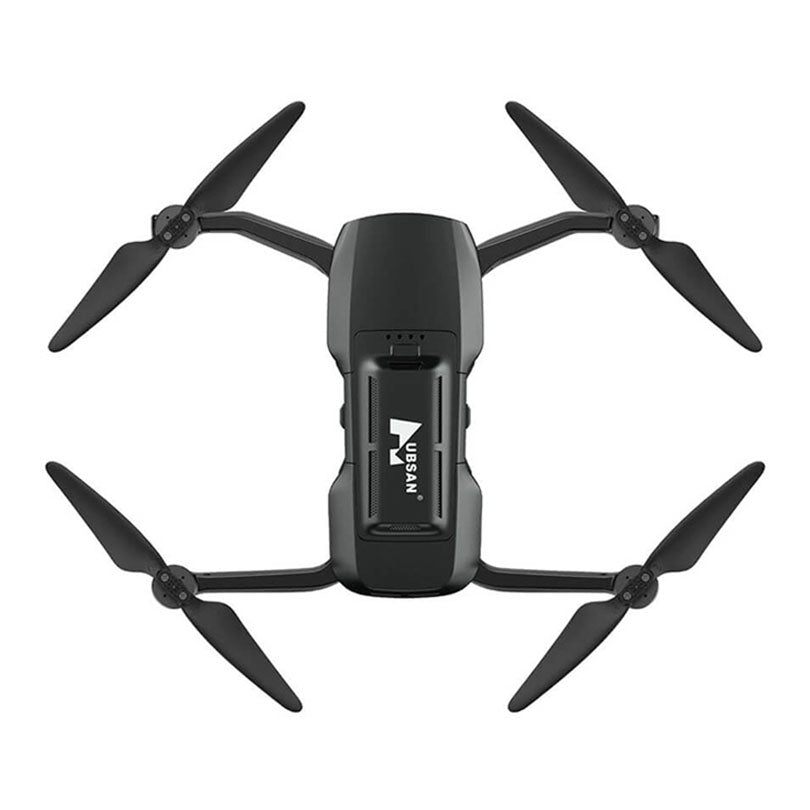

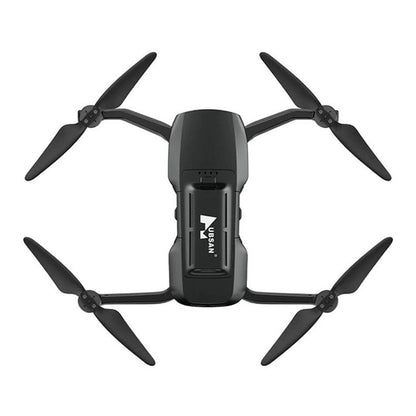

Hubsan Blackhawk 2 4K Drone 3-Axis Gimbal 4G Module Built-in Version 10KM image transmission Professional aerial photography Quadcopter

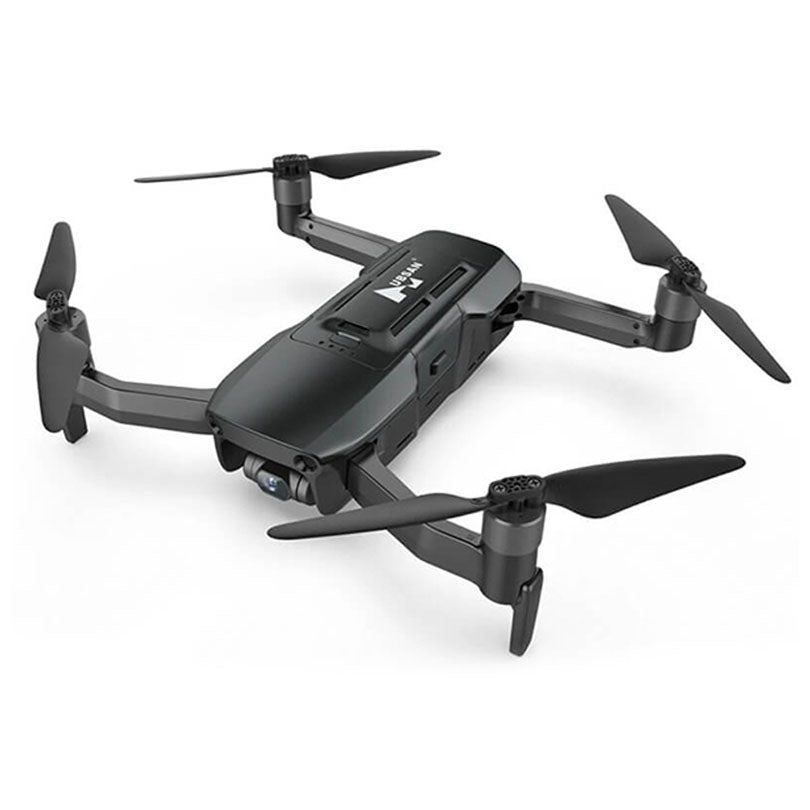

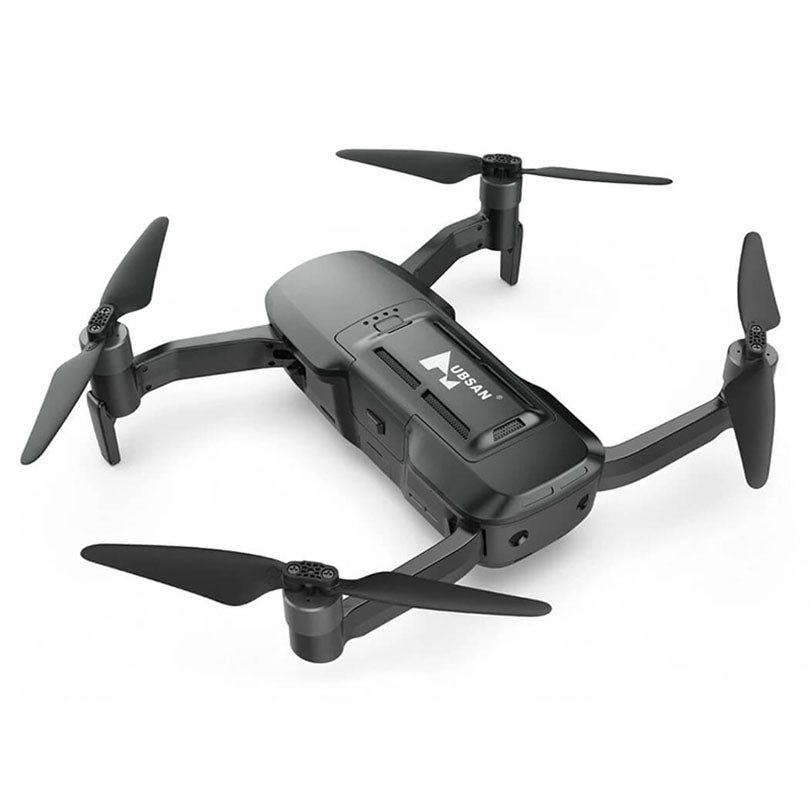

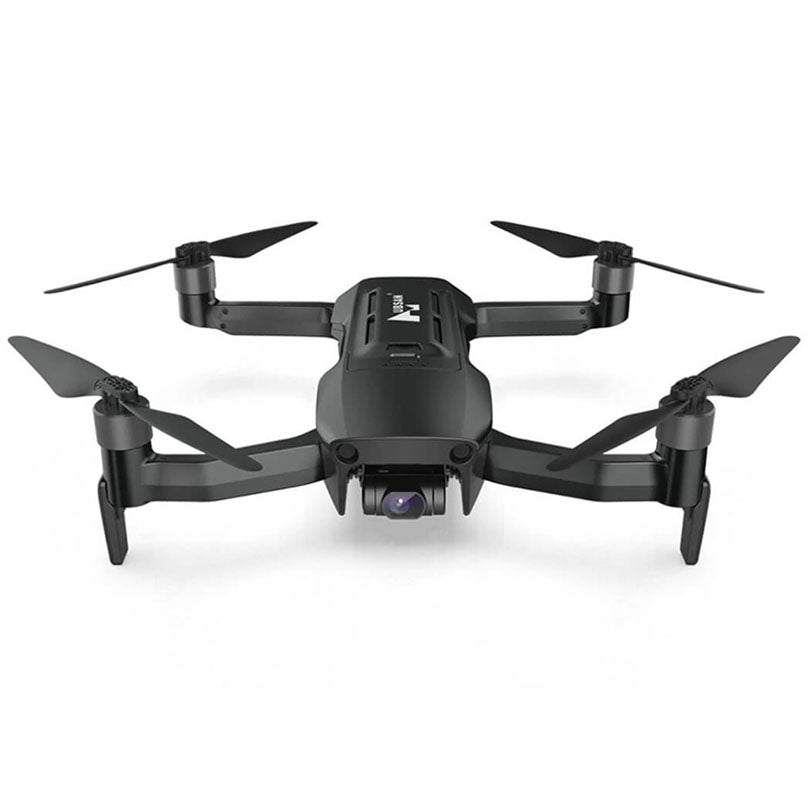

AIRCRAFT:
Color: BLACK
Hubsan Blackhawk 2 Size: Expand: 229.55*178*73.6mm; Folding:118.7*172.5*67.6mm
Diagonal wheelbase: 266mm
Maximum current: 25A
Take off weight: 600g
Hover accuracy: Indoor: vertical ±0.1m, horizontal ±0.1m; Outdoor: height<7m, vertical<Height*0.02m; Horizontal<Height*0.02m; Height>7m,Vertical ±0.1m; Horizontal +0.5m
Maximum ascending velocity: 3m/s(N); 4m/s(S); 1m/s(F)
Maximum descending velocity: 1.5m/s(N); 3m/s(S); 1m/s(F)
Maximum horizontal flight speed: Normal mode:10m/s(N, No wind at sea level); Sports mode:16m/s(S, No wind at sea level); Movie mode:3m/s(S, No wind at sea level)
Maximum take-off altitude: 5000 meters
Maximum anti-wind capability: 12m/s
Maximum tilt angle: 30°(s); 20°(N); 20°(F)
Satellite navigation system: GPS/GLONASS/Beidou
Hubsan Blackhawk 2 Duration of flight: ( Long life battery): Hovering for 45 minutes,Slow flight time 53 minutes,(Measured at normal temperature, low altitude, no wind, video recording off, low-altitude flight)

POWER SYSTEM:
Propeller: Model: Folding propeller diameter 158.6mm; Colour: Black
Motor: Type: external brushless motor 1816KV value: KV2060
ESC: Self-developed digital ESC: brushless 20Ax4, 4-in-1

BATTERY:
Category: 4th generation smart lithium battery Li-Po 4S
Hubsan Blackhawk 2 Capacity: 5000mAh 72wh (Long Duration)
Nominal voltage: 3.6Vx4=14.4V
Charging voltage limitation: 4.2Vx4=16.8V
Discharge limitation: 8C
Charging time: 120 minutes
Battery weight: 300g( Long duration)
Working temperature: -5°-40°
Charging environment temperature: 0C~40C
Smart battery balance: Power balancing, intelligent power estimation, intelligent on-off control, overcurrent protection, high temperature protection, overcharge protection, over-discharge protection
Battery Smart buckle: Support
Low power protection: Yes. When the battery is turned on after the power level is less than 1%, the battery will no longer provide power output to prevent over-discharge.
Struggle mode: Support
Electrical resistance monitoring: Support
HBLog: Support
Smart diagnosis: Support
Low temperature using: The lowest temperature support -35 °
Remote Lock: Support
Online Upgrade: Support
Bulging replacement: Support

CAMERA:
Image sensor: 1/2.6 CMOS, effective pixels 12 million
Lens specifications: FOV 80°, Aperture f/2.2, EFL: 3.5mm, Focus point 0.5m to infinity, Distortion <1.5%
Electronic shutter speed: 1/30s-1/8000s
Photo format: JPEG
Maximum photo size: 5472x3648
Hubsan Blackhawk 2 Video resolution: 4K: 3840x2160@30fps, 2.7K: 2720x1530; FHD: 1920x1080@/30fps
Electronic shutter speed: 1/30s-1/8000s
Video format: MP4(H.264/MPEG-4AVC)
Video bitrate: 45Mbps-100Mbps
Portrait Mode: Support
Control method: remote control + mobile phone App
Hubsan Blackhawk 2 Film storage method: MicroSD card, U3 or Class10 or above 16G/32G/64G/128G
Firmware upgrade: App online upgrade

WIRELESS TRANSMISSION SYSTEM:
lmage transmission solution: SyncLeas 4+
lmage transmission wideband: 20Mbps
lmage transmission delay: Within 200ms
Control delay: Within 40ms
Antenna: Built-in dual antenna
Default controller: HT18MF
EIRP: FCC :<=26dBm; CE: <=20dBm; SRRC: <=26dBm
Wireless transmission range: FCC: 16km;  CE:<=11km;  SRRC:<=14km
4G: Support built-in 4G

GIMBAL:
Flight controller version: Self-developed fourth generation flight control
Hubsan Blackhawk 2 Degree of freedom: The fourth generation of mechanical three-axis stabilization gimbal technology
Maximum pitch Speed: 120°/s
Rotation range: Pitch: -111.1°~+45°; Roll:±35°; Yaw: ±35°
Angle jitter: ±0.001°

FLIGHT CONTROLLER:
Hubsan Blackhawk 2 Flight controller version: Self-developed third-generation flight control
Basic flight mode: Sports mode/Normal mode/Movie mode
Altitude hold: Tof, barometer
Fixed-point function: Vision optical flow, GPS
Unlock/lock: Outer- eight unlock/lock
Fill light: Support, automatically turns on in low light environment of 0.5m-5m
Out of control protection: Support
Fail-safe: Supported
Waypoint flight: Supported
Circle flight: Supported
Smart battery: power balancing, smart power estimation, smart on/off control, overcurrent protection, high temperature protection, overcharge protection, over-discharge protection, automatic discharge, struggle mode
Low battery protection: Automatically return home and land when low battery is low
Motor stall protection: Supported
One-key return home: Supported

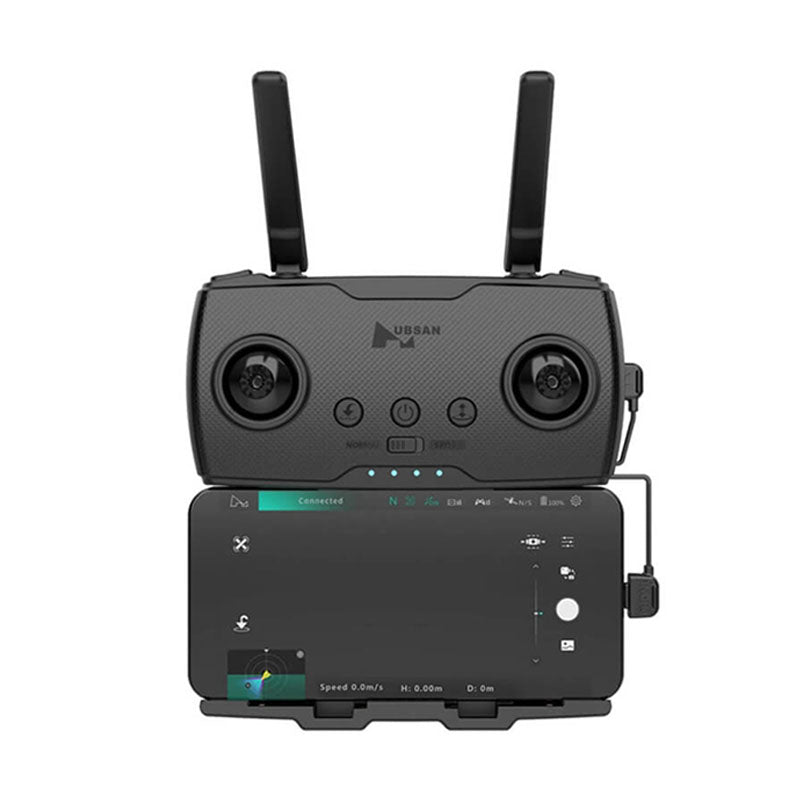

REMOTE CONTROLLER:
Image transmission solution: Syncleas 4 +
LED Display: Support
Working environment temperature: -5°-50°
Effective range: FCC: 16km; CE:<=11km; SRRC:<=14km
EIRP: FCC:<=26dbm; CE:<=20dBm; SRRC:<=26dbm
Built in battery: 5000mAh
Buzzer: Support
Working time: 2.5h(Normal flight time)
Rocker return to center accuracy: 4%
Supportable Interface Types: Lighting, MicroUSB, USB-C

APP:
APP: X-Hubsan2
Mobile device requirements: l0S 10.0 or higher; Android 6.0 or higher
