Elephant Robotics myArm M750: Universal Intelligent 6 DOF Robotic Arm

Elephant Robotics myArm M750: Universal Intelligent 6 DOF Robotic Arm

Prezzo di listino $2,999.00
Prezzo di listino $0.00 Prezzo scontato $2,999.00
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Buy On Elephant Robotics

myArm M & C: Robot Arm & Teach Pendant

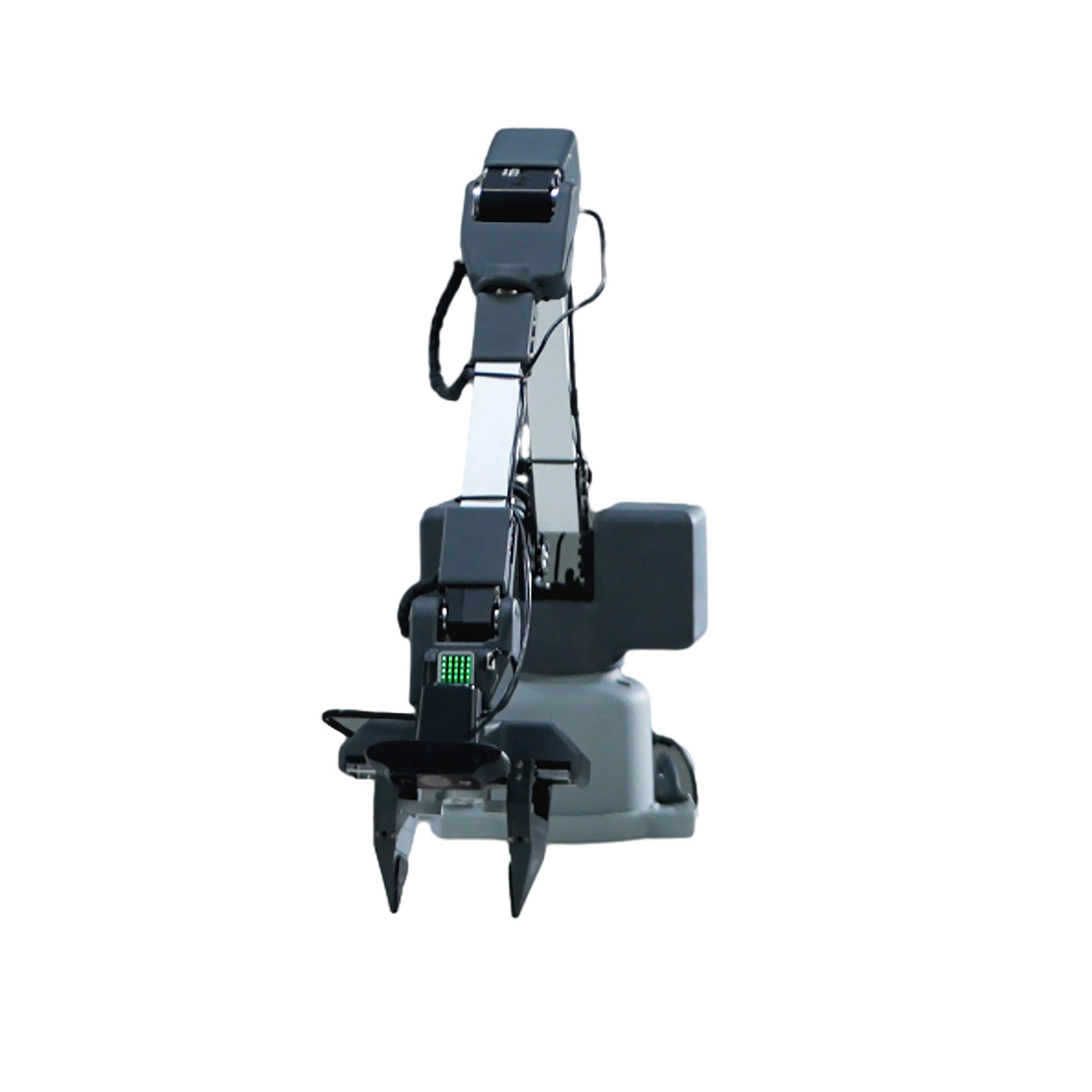

The myArm M750 is a versatile intelligent 6 DOF robotic arm with a reach of 750mm, a rated payload of 500g (up to 1kg maximum), and comes with a 1 DOF parallel end effector (gripper). The "M" stands for Master. It is suitable for applications requiring complex motion control, precise positioning, and high programmability.

e.g. Standardized Robotic Arm for Kinematics Verification, Robotics Composite Scene Application Verification, Remote Control Scenario Exploration and Development.


Multi-Sensor & Enhanced Control

Equipped with sensors that track real-time motion data (position, speed, etc.), the robot arm also identifies anomalies to ensure safe operation. Additionally, its 6+1-axis design mimics human arm flexibility for versatile multi-angle and multi-directional control.

Multi-Sensor & Enhanced Control
Handles Diverse Tasks

Handles Diverse Tasks

The 750mm arm length is ideal for reaching objects, while the 500g rated load and 1000g maximum load allow it to handle common household items. myArm M750 can fold clothes, sort books, brew coffee, and more.

Universal Control Hub

The myArm C650 seamlessly controls various machines, including the myArm M750, myCobot 630 (with its full harmonic motor) & Mercury X1 (with dual-arm cooperation). Its capabilities are vast, opening doors to endless possibilities.

Universal Control Hub

Programming & Development

The myArm series robots are highly valuable in the fields of education and research, particularly within the widely used development environments of Python and ROS (Robot Operating System). These environments provide robust support, enabling the myArm series robots to be extensively utilized in machine learning, artificial intelligence research, complex motion control, and visual processing tasks.

Essential Functions

What's Difference

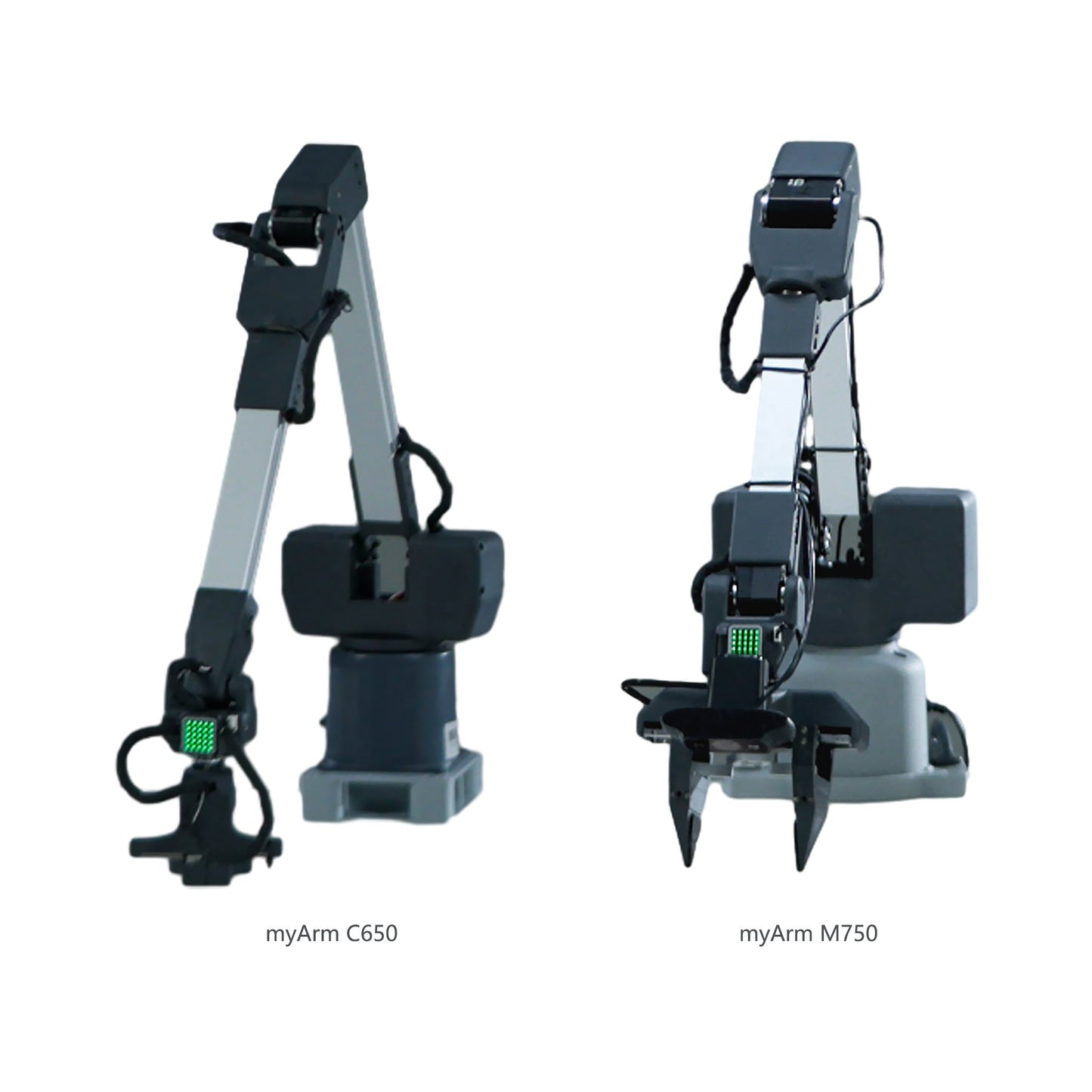

Specification myArm M750 myArm C650
Degree of Freedom 6+1 6+1
Payload 500g
Working Load 500g Load Capacity, 1000g Maximum Load -
Working Radius 750mm 650mm
Total Span 1500mm 1300mm
Positioning Accuracy ±1mm ±1mm
Accuracy 5 – 8mm 5 – 8mm
Weight 4.5kg 1.95kg
Number of Steering Gears 8 8
Steering Gear Type Industrial grade high-precision digital servo motor High precision digital servo motor
Power Specifications 24V9.2A 12V5A
Joint Maximum Rotation +/- 180° +/- 180°
End Effector Parallel gripper compatible with optional camera Dual-finger touch control + dual-button operation
USB Connection Type-C Type-C
Atom Tip 5x5 LED matrix 5x5 LED matrix
Communication Frame Rate >50Hz >50Hz
Programming Python + ROS Python + ROS

What's Included

myArm M750 myArm M750 X1
USB Data Cable X1
24V 5A Power Adapter X1
J6 Joint Lego Interface Adapter X1
myArm C650 myArm C650 X1
USB Data Cable X1
12V 5A Power Adapter X1

Essential Accessories

C650 Buy MyArm-Controller-C650

It captures precise motion data from a universal 6-axis robotic arm.

Camera-Flange Buy Camera-Flange

It can be used in more applications such as machine vision and image recognition.

Flexible-Gripper Buy Flexible-Gripper

It is used to clamp irregularly shaped objects and can be deformed.

Adaptive-Gripper Buy Adaptive-Gripper

It can achieve grabbing applications with robotic arms.

Dual-Vacuum-Gripper Buy Dual-Vacuum-Gripper

It performs the function of absorbing larger objects with robotic arms.

Vertical-Suction-Pump Buy Vertical-Suction-Pump

It performs the function of absorbing objects with robotic arms.

Parallel-Gripper Buy Parallel-Gripper

It can complete the fine application of robotic arm grabbing.

Mobile-Phone-Holder Buy Mobile-Phone-Holder

It caters to a wide range of phone sizes.

Unbeatable Value

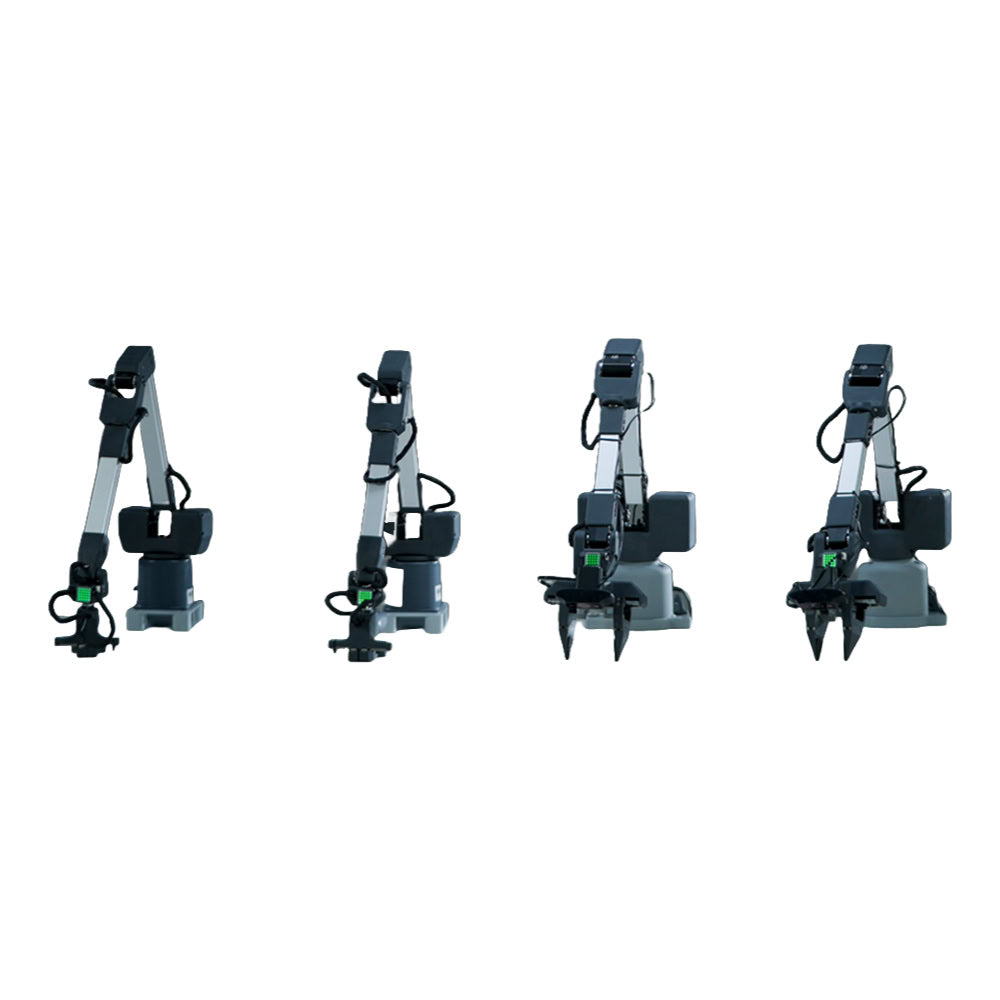

myArm M&C Teleoperation Robotic Arm Kit

Robot arm teleoperation real-time control kit.

Learn More
Teleoperation_Robotic-Arm-Kit
Embodied_Humanoid_Robot_Compound_Kit

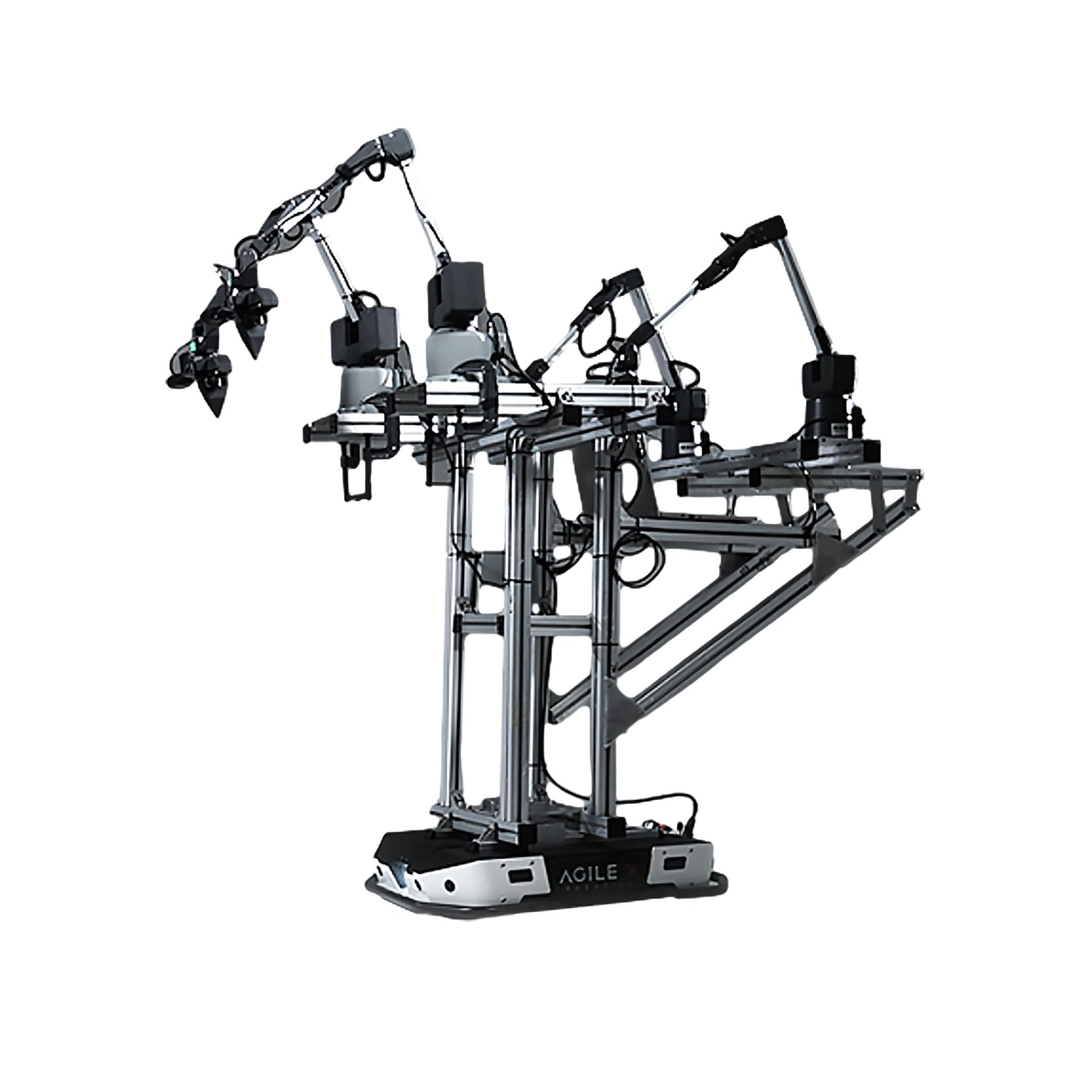

myArm M&C Embodied Humanoid Robot Compound Kit

Embodied humanoid dual-arm remote-controlled robot control kit.

Learn More

myStudio

Centralized Robot Management: myStudio offers firmware updates, video tutorials, and maintenance/repair information, all accessible from a one-stop platform.

Robot Management
