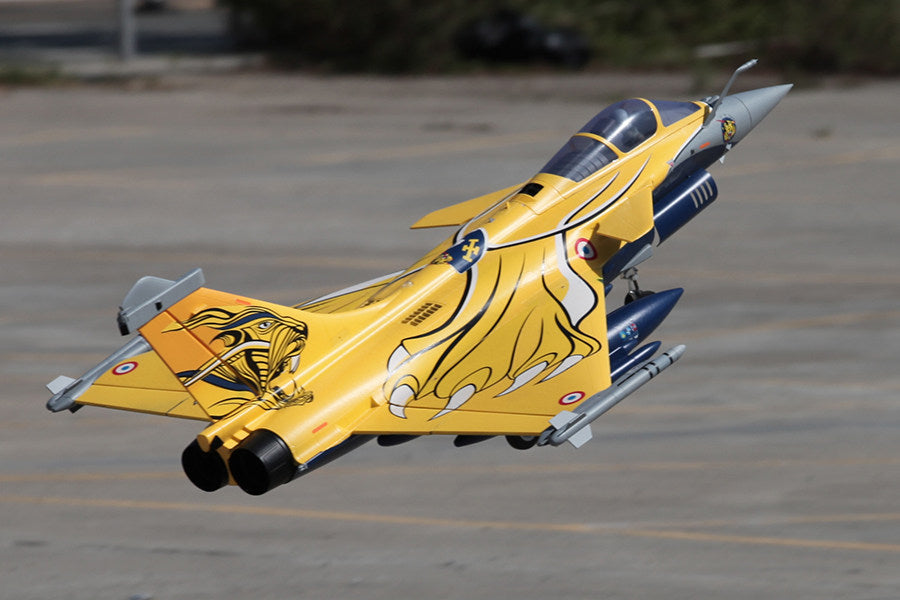

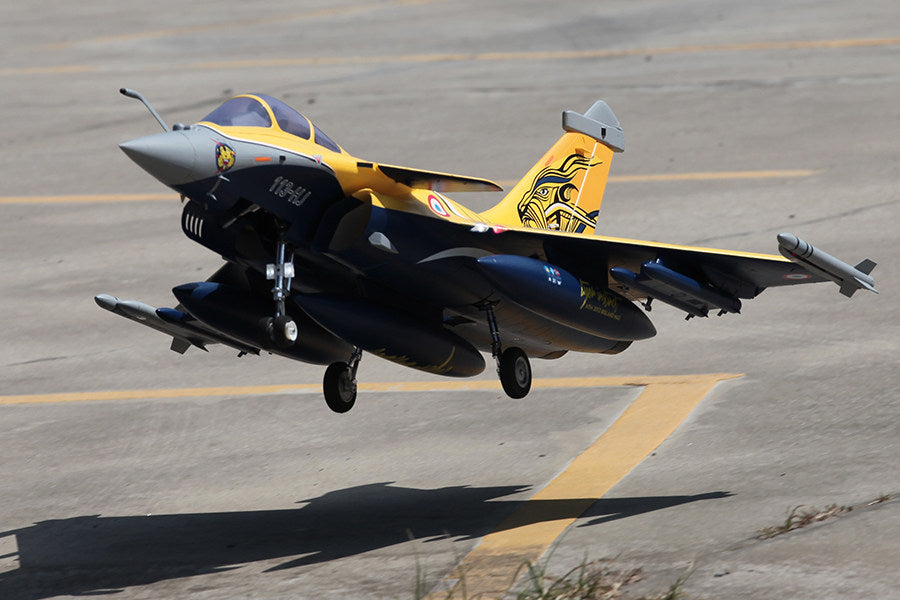

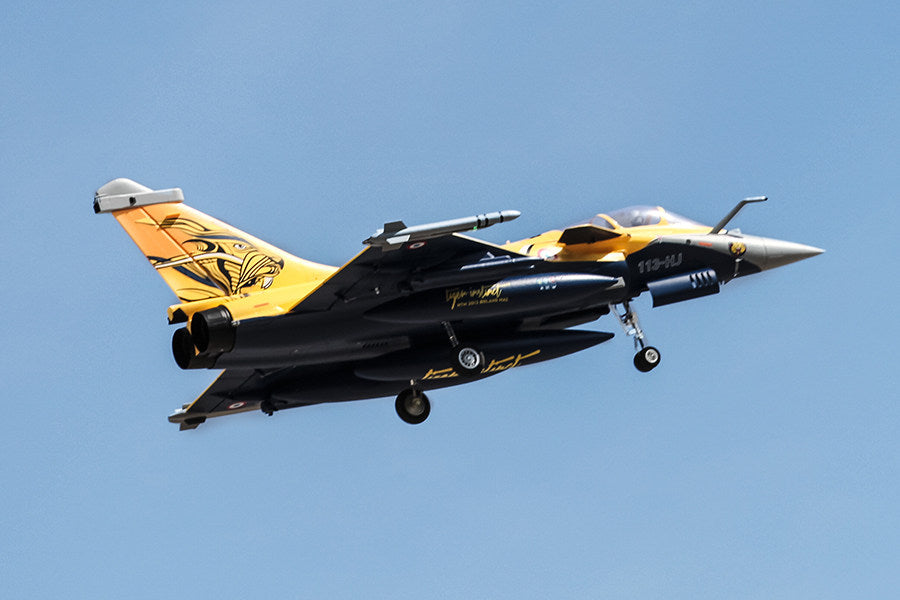

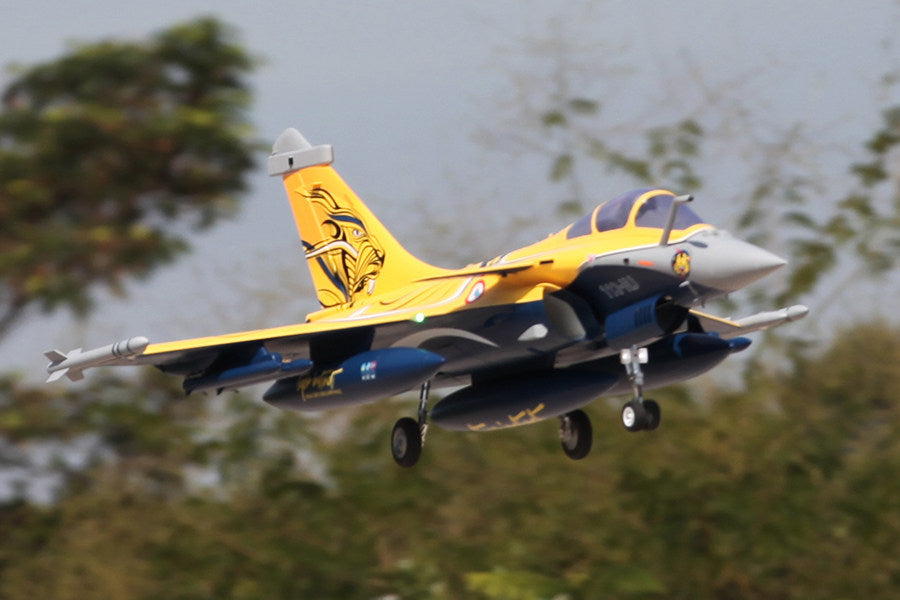

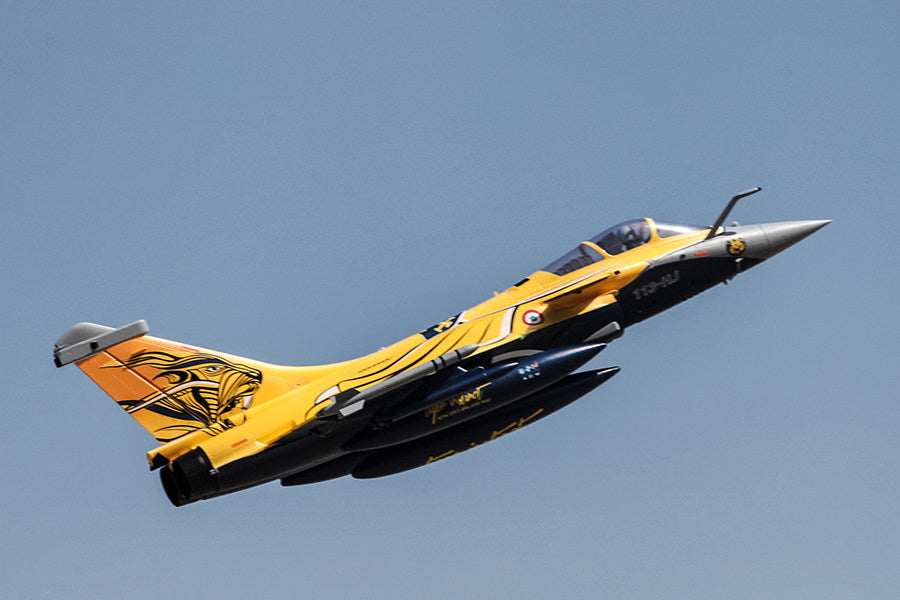

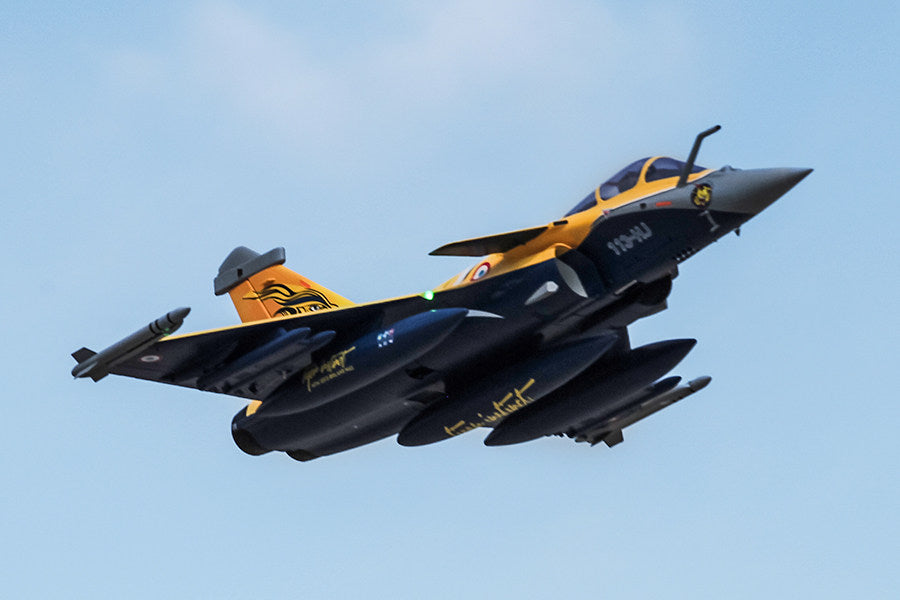

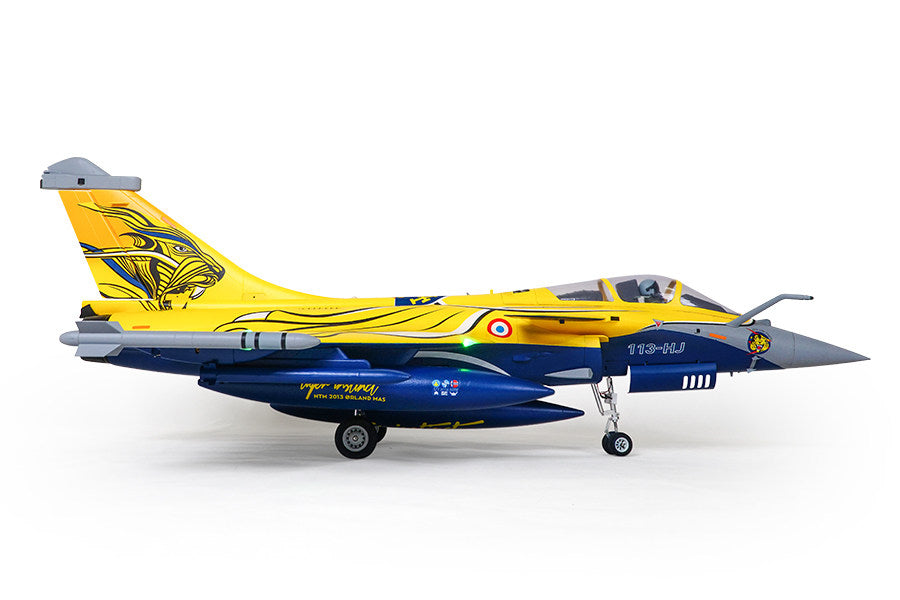

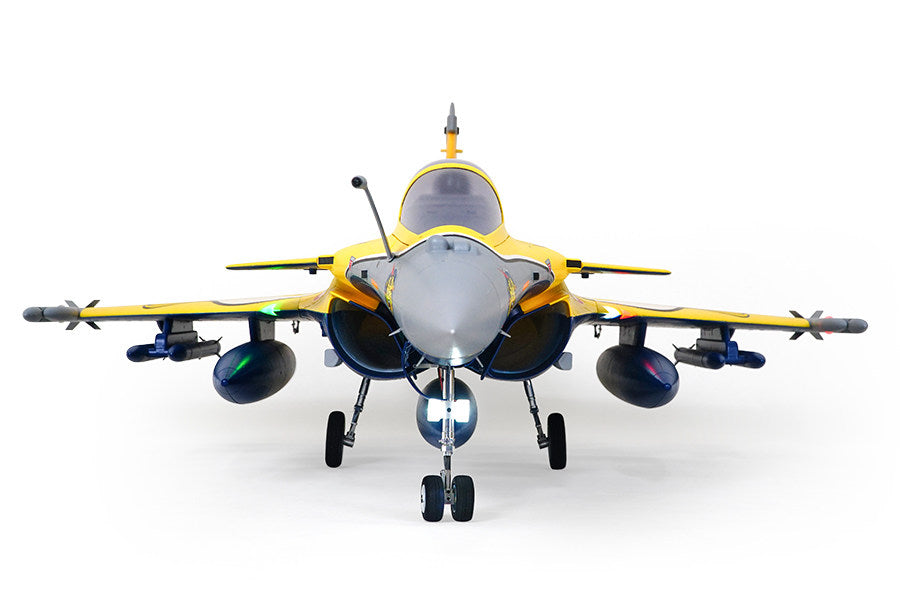

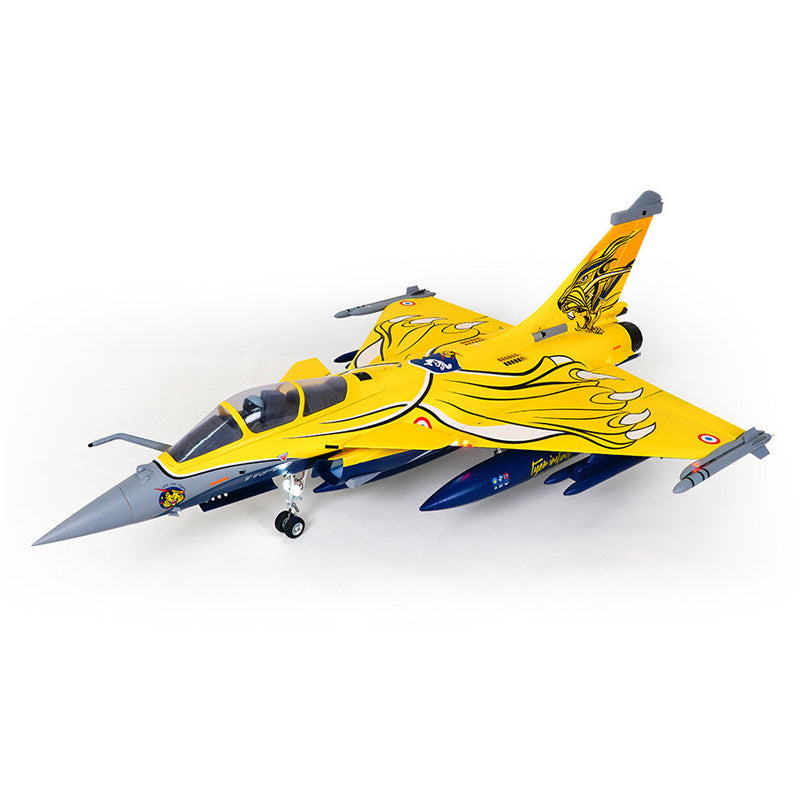

FMS EDF Jet 80mm Rafale PNP

FMS EDF Jet 80mm Rafale PNP

Regular price $439.99
Regular price $469.99 Sale price $439.99
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buy On fmshobby

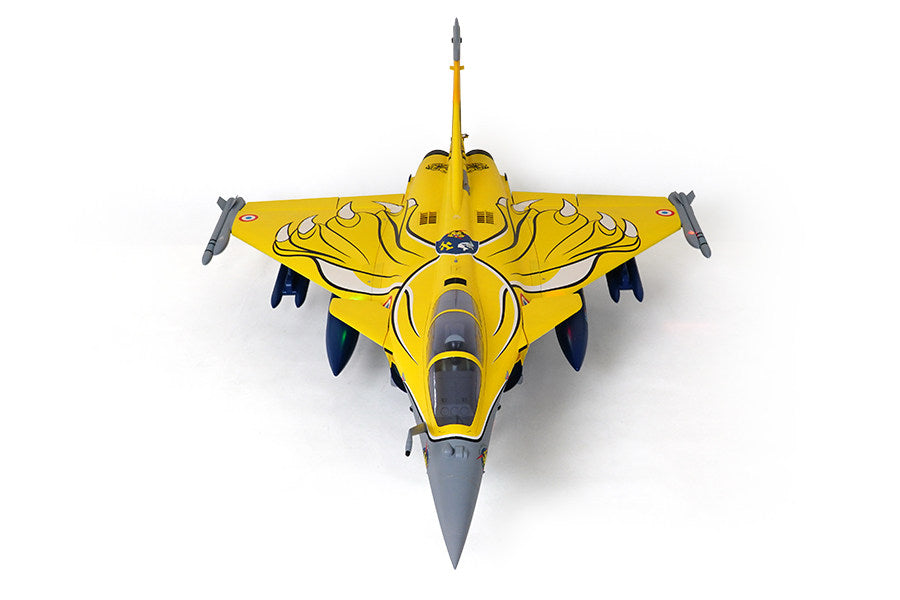

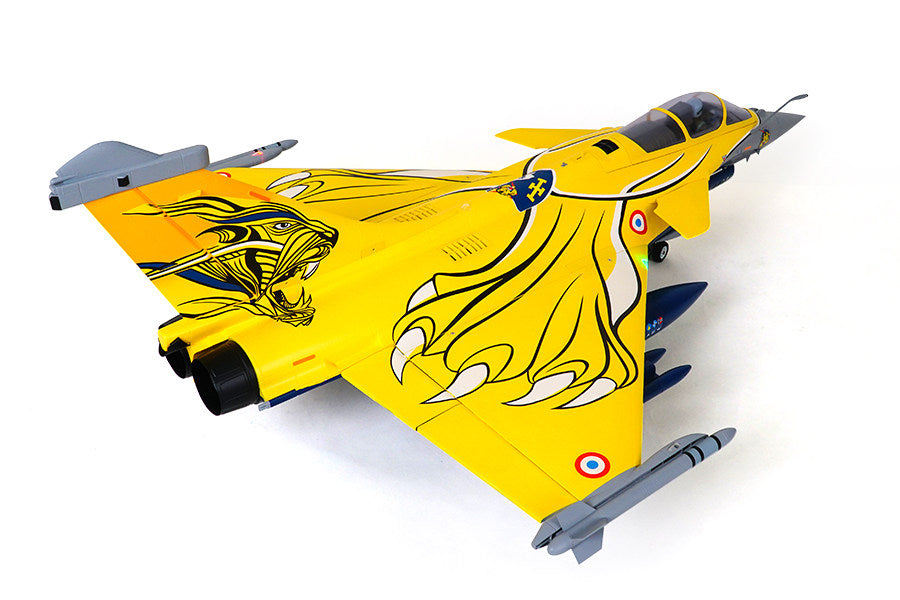

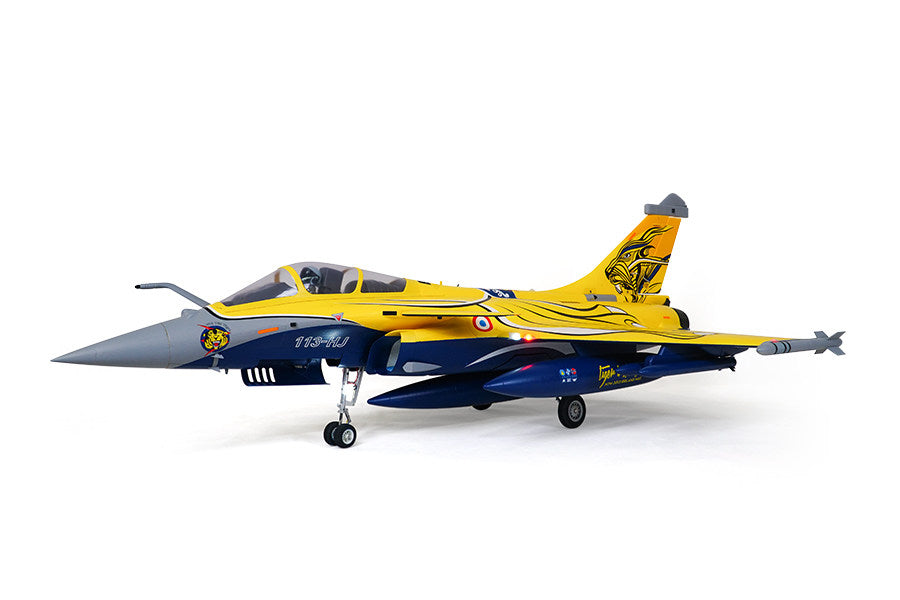

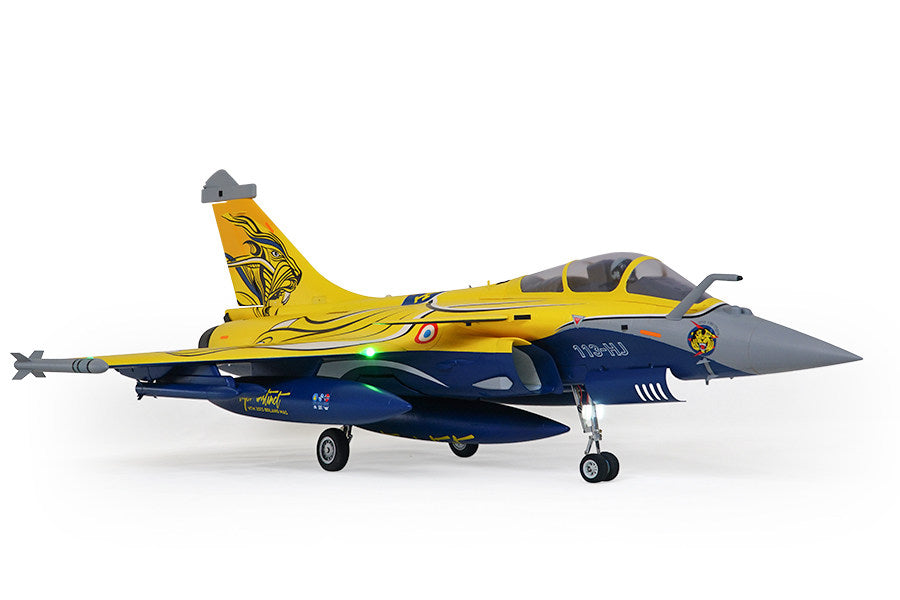

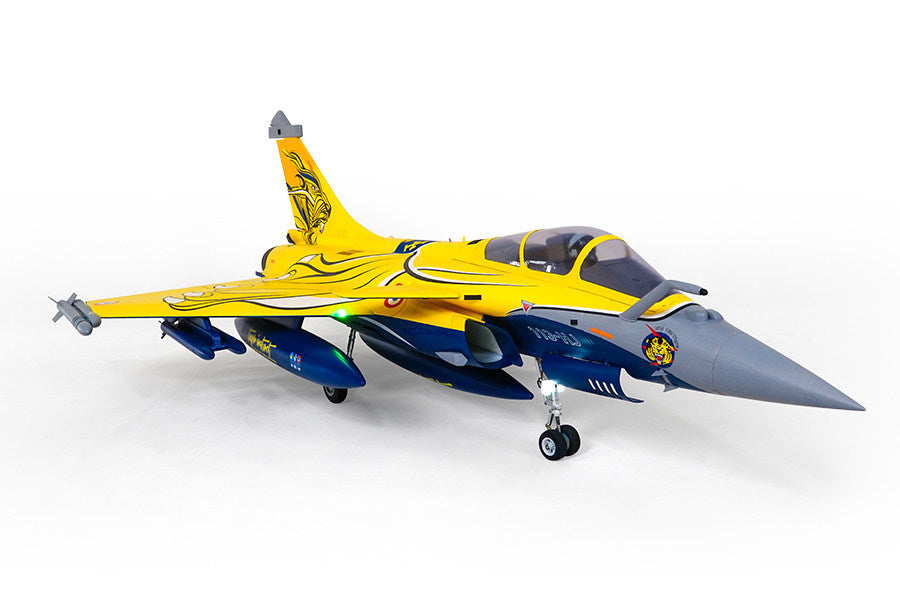

Innovative Design, 80MM Rafale RC EDF Jet

FMS 80mm Rafale features an attractive trim scheme, excellent scale details and fully functional canards- allowing the aircraft to be truly unique when compared to other 80mm EDF aircraft. Details such as the pilot, cockpit interior, panels, removable armaments, auxiliary fuel tanks, refueling probe, targeting sensor etc; dynamic features such as functional LED navigation and landing lights, CNC shock-absorbing electric retracts, functional canards and flaps etc.
Utilising screws, latches and quick connectors, experienced builders can complete the build process in as little as 5 minutes.
Functions such as delta-mixing, sequential landing gear bay doors, alternating flash navigation lights, nose gear landing lights, slowed flaps etc are all controlled by a central control board. An 80mm 12 bladed EDF with a platinum edition 3280 inrunner motor and 100A high performance ESC easily accomplishes fighter jets maneuvers with realistic sound and speed.



What's in Box

  • 80mm EDF with 12 bladed fan
  • 3280-2100KV Brushless Motor (installed)
  • Hobbywing 100A ESC (installed)
  • 13g Digital All-metal Servos (installed)
  • CNC All-metal Landing Gear (installed)
  • Flashing Navigation Lights On Wings And Taxi Tights On the Bottom Of the Fuselage (installed)
  • Attractive Red-gray Decal
  • Product Manual



Need to Complete

Transmitter
6+ channel Receiver
22.2V4000mAh-5000mAh 45c (recmmanded)
Compatible Charger

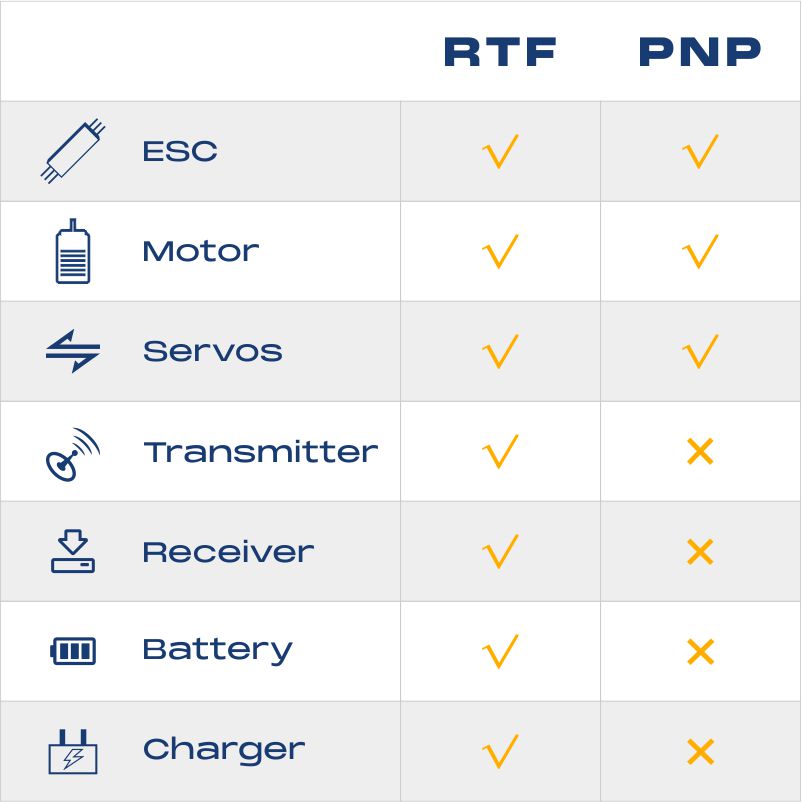

Notes to buyers:

RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
PNP
(Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.



Specification

Wingspan 974mm /38.3 in
Overall Length 1409mm /55.5 in
Flying Weight Around  3280g
Motor Size 3280 KV2100
ESC 100A
Servo 13gX7pcs
Radio 6CH Channel
CG (center of gravity) 110-130mm
Prop Size 80mm Ducted Fan 12-blade
Recommended Battery 22.2V4000mAh-5000mAh 45c
Battery Connector     EC5
Aileron Yes
Rudder Yes
Flaps Yes
Retracts Yes
Approx. Flying Duration 3minutes
Minimum Age Recommendation 14+
Experience Level Intermediate
Assembly Time 5 minutes
Wing Load 85.2  g/dm²   (  0.17oz/in²)
Wing Area 38.5 dm²    ( 596.6 sq.in)
