• Product Name: RGT EX86110 V2
• Material: Metal + Plastic
• Item No: EX86100 V2
• Scale: 1/10
• Color: Blue, Grey, Red
• RGT EX86100 V2 Speed control: HW1040-40A waterproof
• RGT EX86100 V2 Motor: RC540 Carbon Brush Motor
• RGT EX86100 V2 Servo: 15KG Metal Gear Servo with Metal Servo Arm
• RGT EX86100 V2 Transmitter: 2.4GHz 3CH
• RGT EX86100 V2 Remote Control Distance: 150 meters or more
• RGT EX86100 V2 Battery: 7.2V 2000mAh Ni-mh battery(included)
• RGT EX86100 V2 Controller Battery: 4 x 1.5V AA Battery (Not Included)
• Wheelbase: 313-320mm
• Ground clearance: 80mm
• Gear radio: 41.4:1
• RGT EX86100 V2 Weight: about 3956g, with box
• RGT EX86100 V2 size: 510*230*245mm(L*W*H)

• Packing size: 60*30*30 CM

• Packing weight: 5 KG

Features:
1. RGT EX86100 V2 shipping standard, RC540 carbon brush motor, "Hobbywing" 40A waterproof ESC, 15KG metal gear servo with metal servo arm.
2. RGT EX86100 V2 with 6mm steel solid material multi-link suspension, thrust rod design, adjustable C-shaped steel beam frame.
3. The central drive shaft adopts a telescopic universal transmission design and is equipped with a steel universal joint head.
4. RGT EX86100 V2 with Velcro strap-type fixed battery design increases the use range of batteries of different specifications.
5. RGT EX86100 V2 central gear set is designed with a sealed gear box cover, which eliminates the hidden danger of small stones stuck on the gear.
6. The front and rear axle gear sets of the RGT EX86100 V2 use steel-containing high-proportion powder metallurgy bevel gears, and a smaller volume one-piece straight axle housing, which increases the ground clearance and facilitates later maintenance and disassembly.
7. RGT EX86100 V2 with Professional spring steel nylon shock absorbers with adjustable travel.
8. RC Climbing Car: 1/10 climbing car, the new competitive anti-collision board is equipped with winch decoration and towing hook.
9. RGT EX86100 V2 High Playability: Comes with car shell stickers and grille headlights. The magic tape strap-style fixed battery design increases the use range of batteries of different specifications.
10. RGT EX86100 V2 High configuration: The front and rear axle gear sets of the car use steel-containing high-proportion powder metallurgy bevel gears. Professional spring steel nylon shock absorber with adjustable stroke. The front steering is changed to a CVD structure, which increases the steering angle and positive Ackerman angle. The new titanium-gold-shaped wheels are more simulation.
11. RGT EX86100 V2 transmission system is changed to a reverse transmission design to reduce the phenomenon of car axle effects , and better solve the problems of overall body balance, tilted feet, head up, and rollover during climbing and driving.



EX86100V2 Appearance Modification:
1. The front and rear anti-collision plates have been replaced. The new competitive version of the anti-collision plate is equipped with winch decoration and tow hooks, and the appearance looks more domineering and simulated.

2. The shape of the tire frame has been replaced, and the new MT tire design has increased the width and tread depth of the new tire, and the climbing performance has been improved in an all-round way; the new-shaped titanium-gold wheels are more realistic.

3. The V2 still adopts the old car shell shape, but the newly designed car shell stickers and air intake grille headlights have added angel eye LED lights, which still adds a bit to the appearance.

4. Brand new 2.4G remote control receiving system.

EX86100V2 is Modified in Structure:
1. The front steering is changed to CVD structure, the steering angle is increased, and the Ackerman angle is positive.

2. The transmission system adopts a reverse transmission design, that is, a set of reverse gear sets is added to the central transfer case, so that the transmission shaft connected to the front and rear axle gearboxes rotates in the opposite direction. The reverse transmission drive can relatively reduce the phenomenon of the axle effect of the car, and better solve the problems of the overall balance of the body, tilted feet, head up, and rollover during climbing.

3. Compared with the old model, the gears on the V2 car are all configured with metal steel teeth.

4. Tie rod design, V2 increases the bending angle of the tie rod, which is more conducive to avoiding obstacles under the car when climbing

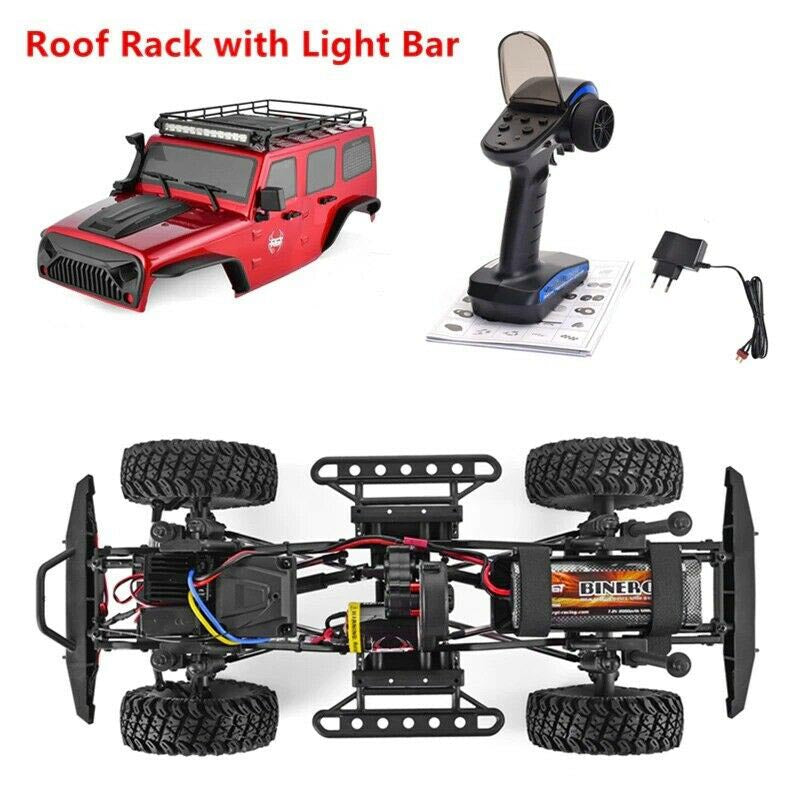

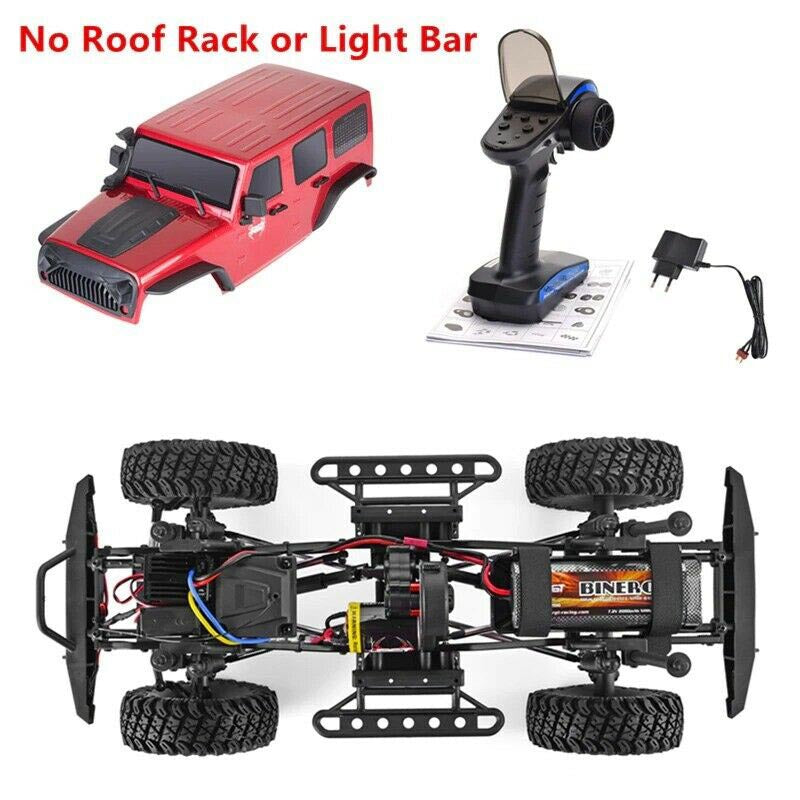

Products Include:
1x 1/10 Crawler
1x 2.4ghz Remote
1x Parts Manual
1x Charger
