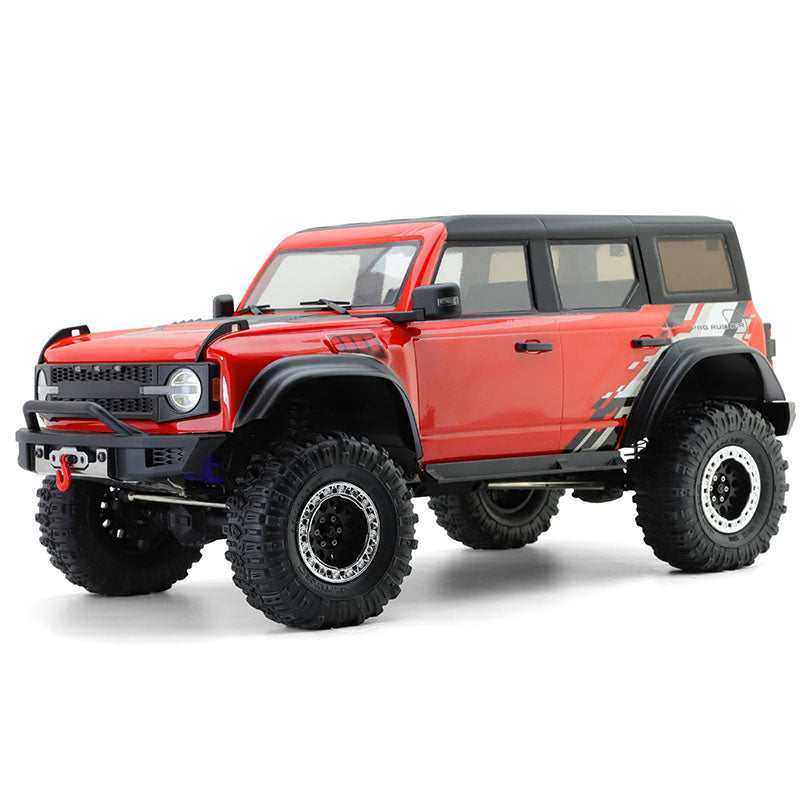

• Model: RGT EX86130 PRO Runner Bronco
• Drive mode: 2WD+4WD+DIG
• Vehicle length: 512mm
• RGT EX86130 PRO width: 240mm
• RGT EX86130 PRO height: 241 mm
• Wheelbase: 313mm
• Wheel: 1.9 "/110 * 40mm
• Height above ground: 35mm (bridge box) 73mm (chassis)
• Heavy Star: 2.98kg (excluding battery)
• Remote control: 2.4G/6CH
• Electric adjustment: "Haoying" WP-1060 160A
• RGT EX86130 PRO Battery (Optional): 7.4v 6200mah 30C large capacity lithium battery
• RGT EX86130 PRO Charger (Optional): 80W imax B6AC high-power balance charger multi-function aircraft model car model lithium battery Ni-MH charger
• Steering gear: 25KG/metal teeth
• Winch steering gear: 360 ° turning metal teeth/25KG
• Other servo motors: 4.8-7.4V/9G (DIG/output)
• Motor: 6235-RC550/35T
• Gear ratio/low degree: 53:1 (F), 57:1 (R)
• Gear ratio high speed: 28:1 (F), 30:1 (R)
• Longitudinal angle: 29 °
• Approach angle: 55 °
• Departure angle: 58 °
• Body material: PC spray soft blue
• Packaging size: 575 * 275 * 282mm

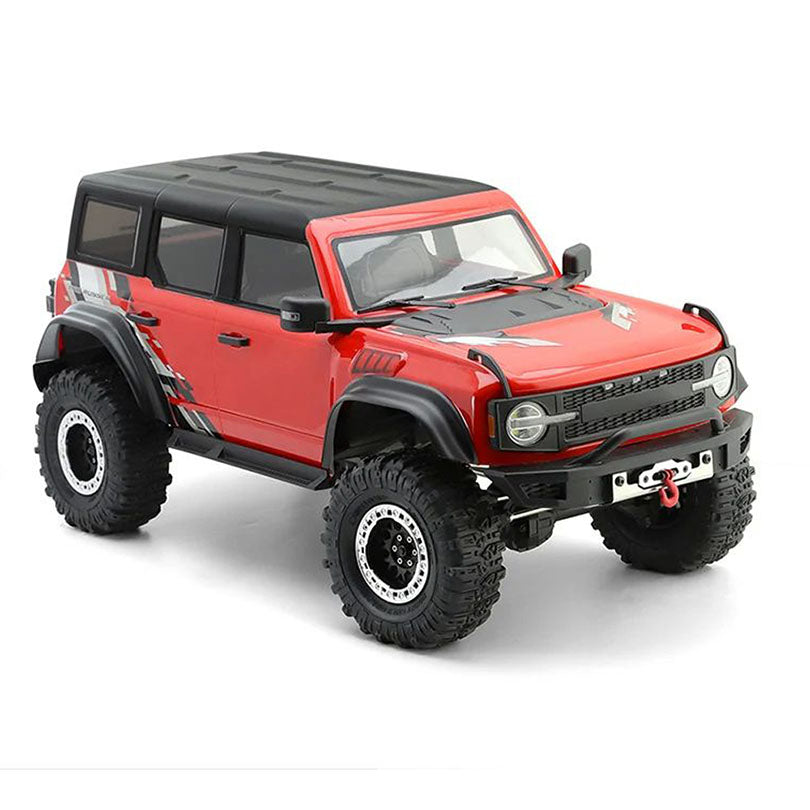

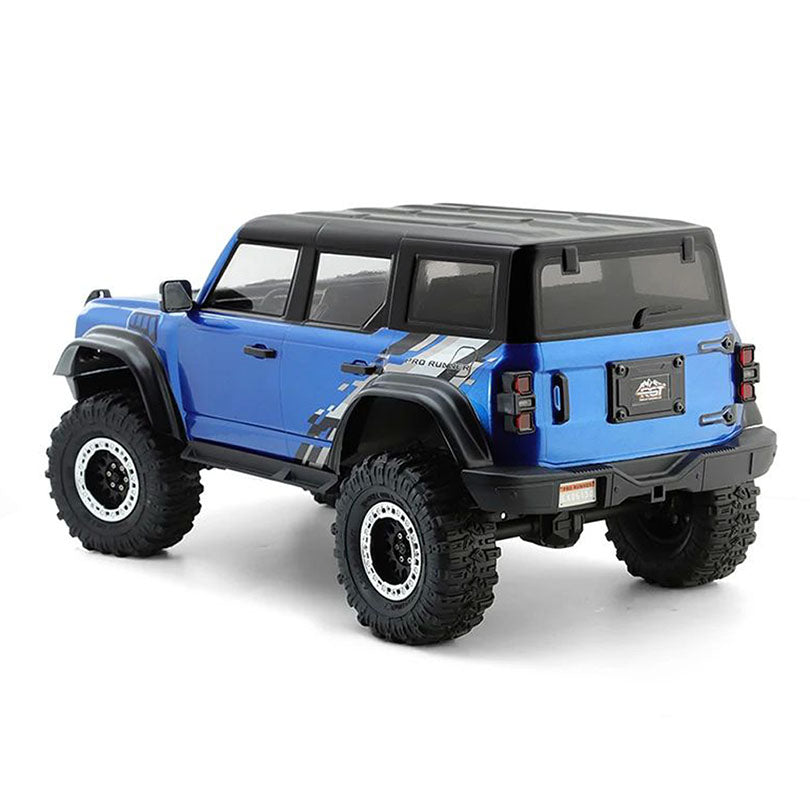

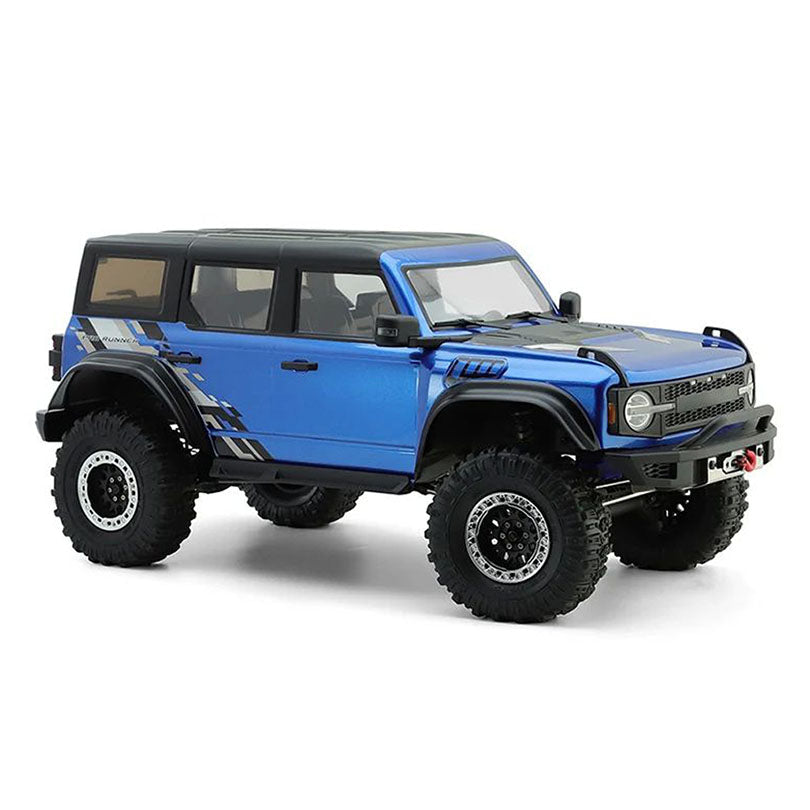

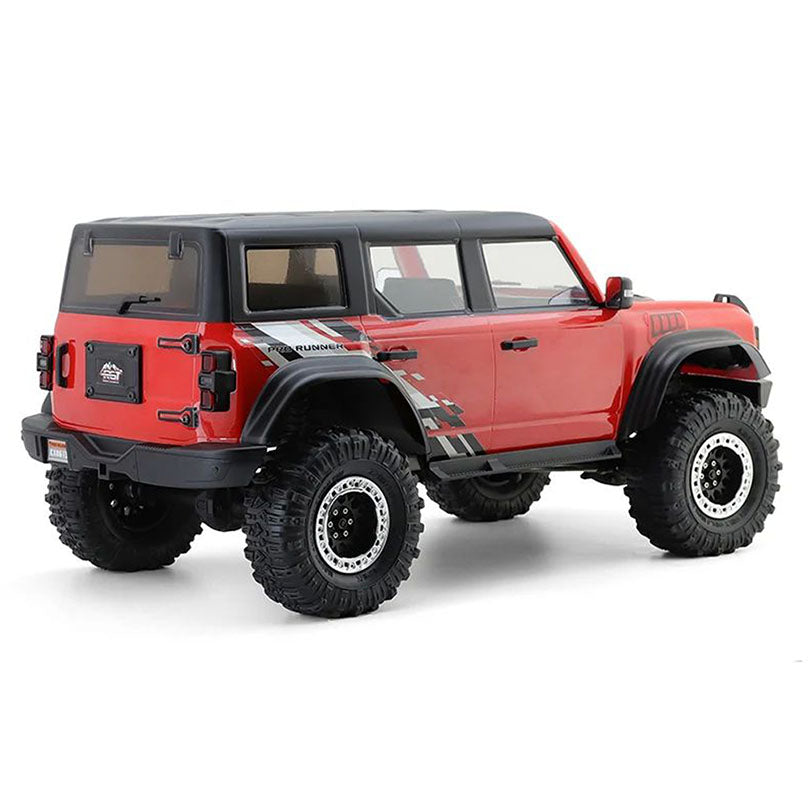

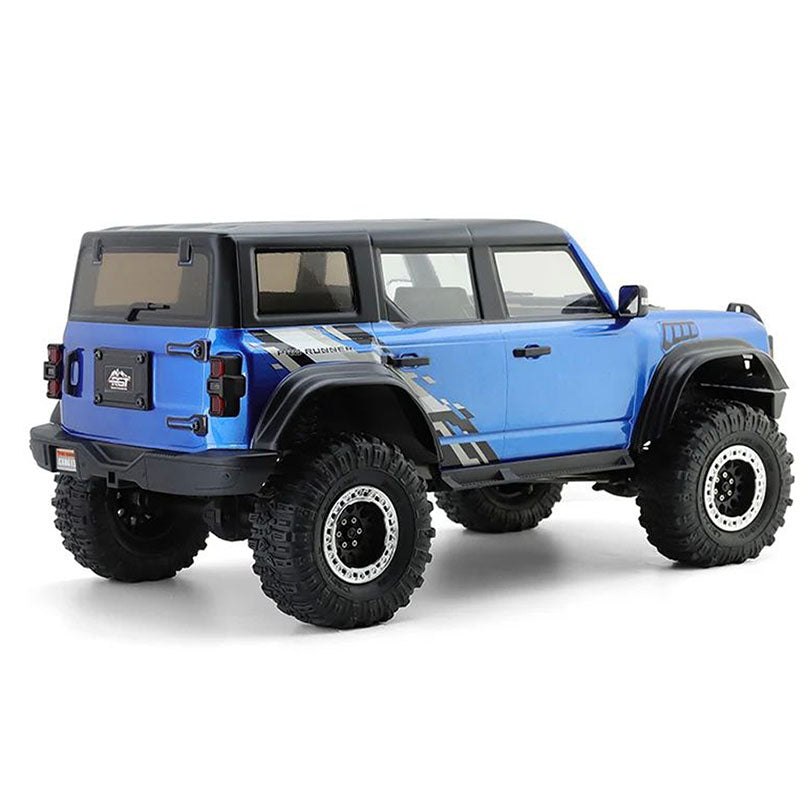

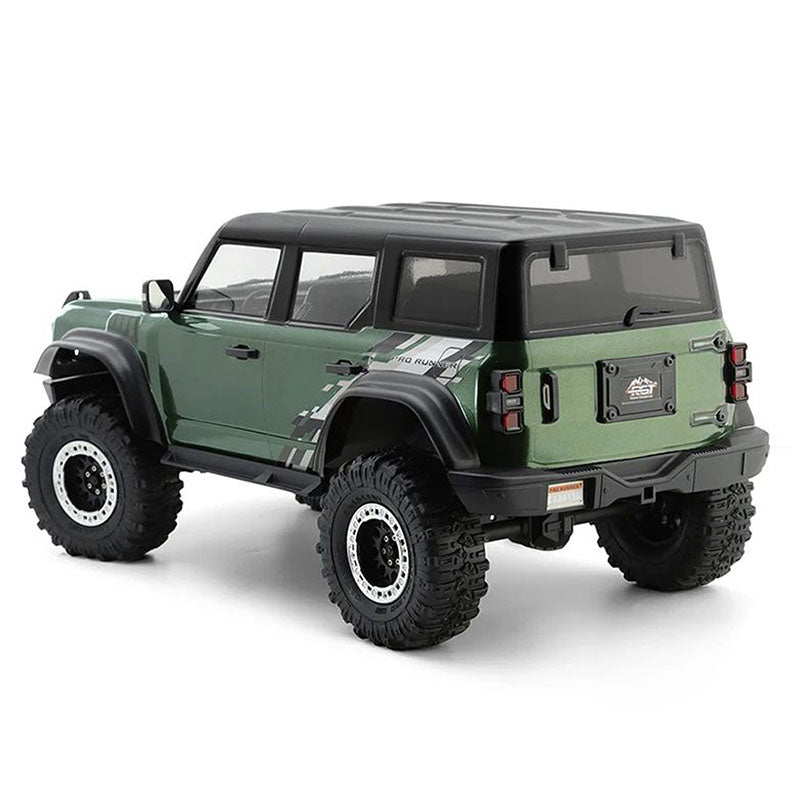

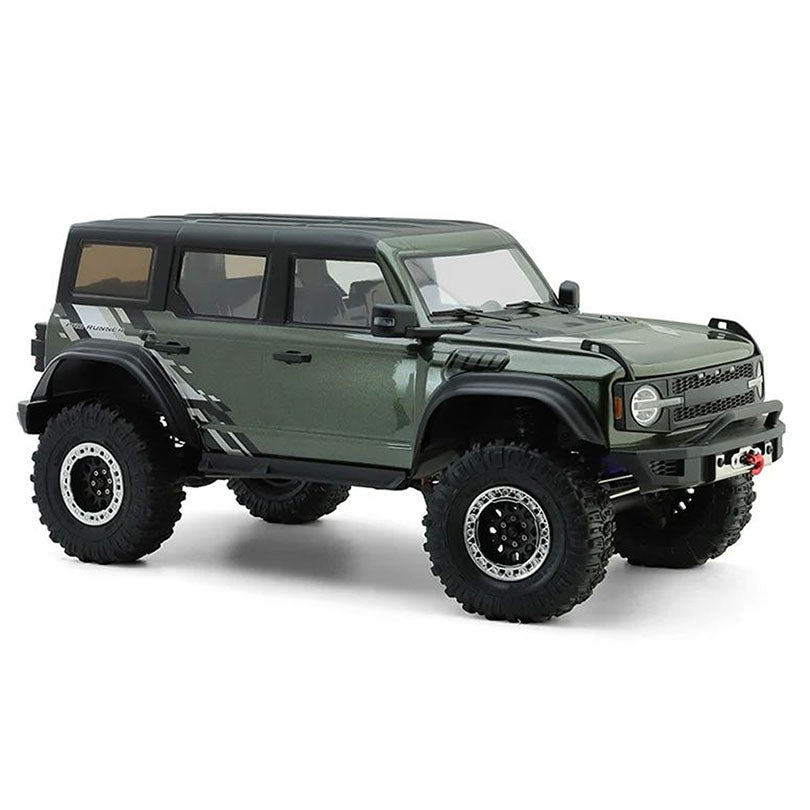

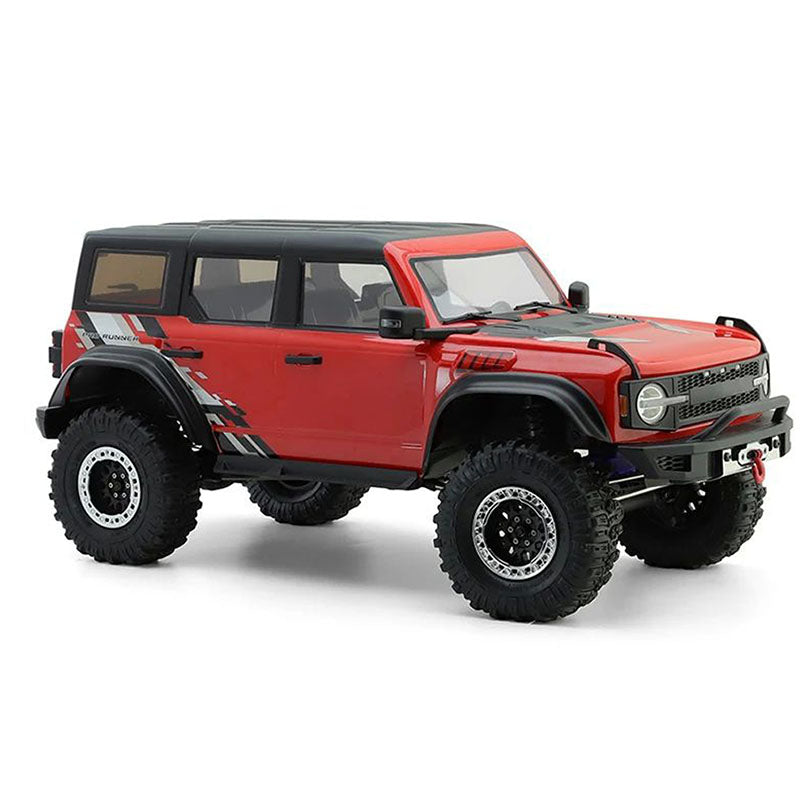

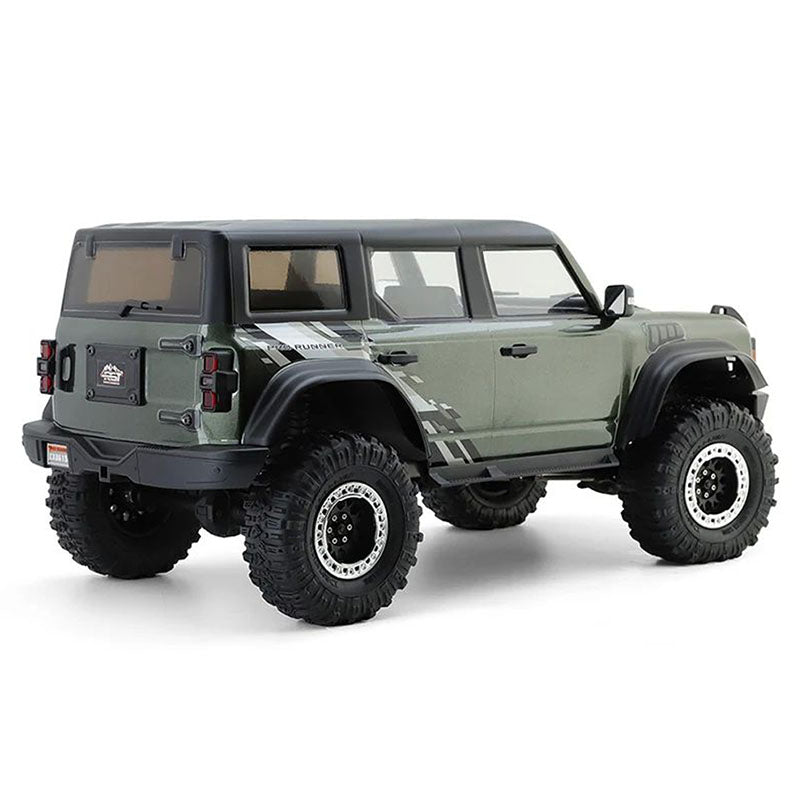

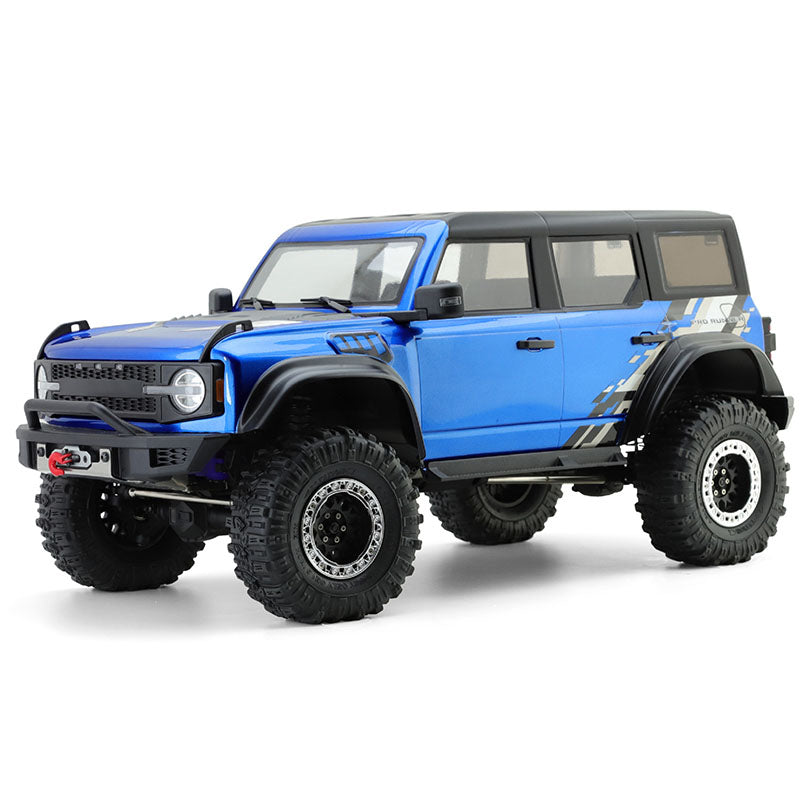

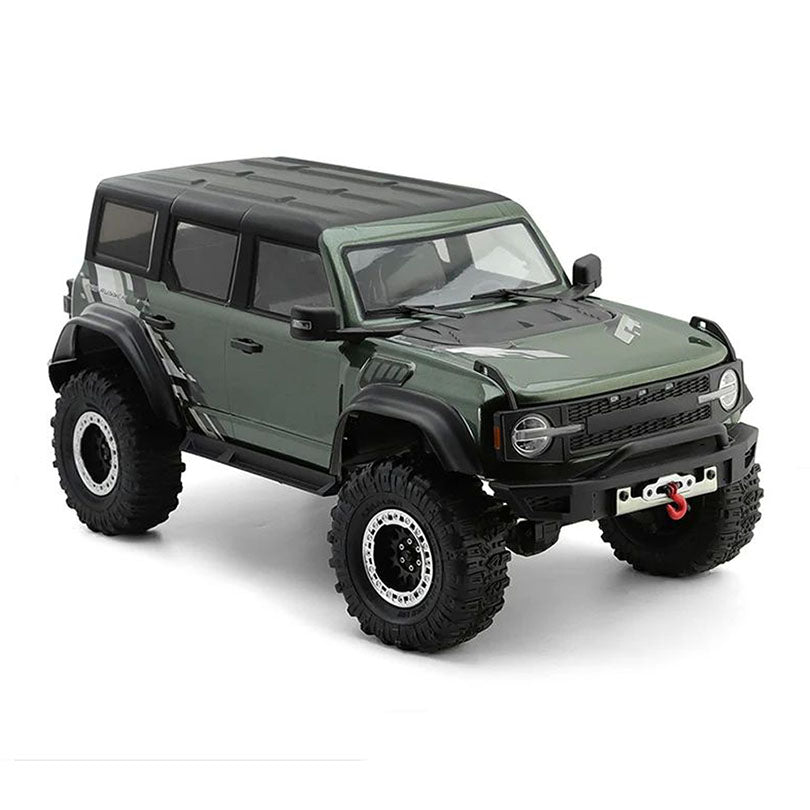

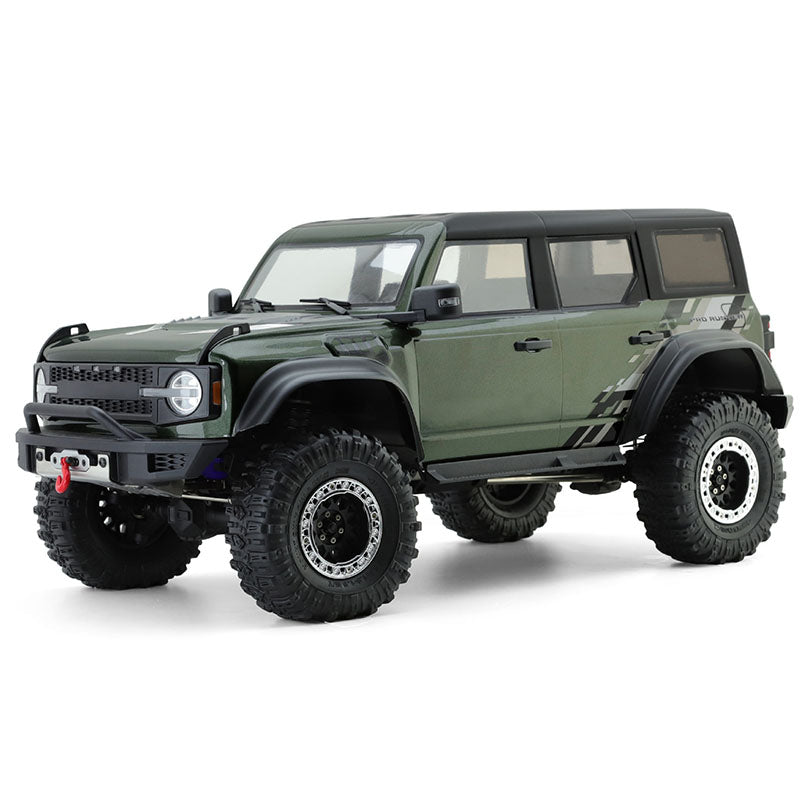

In October, 2023, RGT will launch a new 1/10RTR crawler to market, named"Pro Runner",  item number: RGT EX86130. This is a high-performance simulation crawler newly developed by RGT, especially its excellent mechanical properties and perfect appearance. Pro Runner is equipped with following designs:   front Structure：and rear straight axles, two-speed gearbox and DIG system, rear axle lock function, freely switch from the front drive mode to four-wheel drive mode, 6% front-rear speed ratio, CNC steel spiral main gear, and reverse transmission system. It also has low axial effect, excellent crossing performance and high durability. "Pro Runner"  to the exterior design and interior decoration of Ford Raptor Edition.  The other highlights assembled in factory are winch hook function, multi-mode interconnect LED light control, 6-channel 2.4G remote control and "Hobbywing" 60A special electronic speed controller for cralwer.


1. RGT EX86130 PRO Runner main body adopts hardened stainless steel chassis beam;
2. Integral straight axle comes with caster angle ;
3. 46-degree steering angle and positive Ackerman angle;
4. servo mounted on axel , 25T metal servo arm;

Gear :
1. RGT EX86130 PRO Runner front and rear axles use CNC steel spiral gear, which can raise up the front and rear driveshaft and make the chassis of the car have better pass ability;

Transmission System:
1. RGT EX86130 PRO Runner front and rear drive shafts are made of #1144 steel CVD structure, and the high-quality bearing with sealing cover is designed for reverse transmission；
2.The front-drive steering driveshaft use steel #1144 CVA material;

Linkage Rod:
1.6mm diameter solid metal 8 connecting rod structure;
2.The ball joint of the linkage rod use reinforced nylon material with a new formula, which is more resistant to friction and deformation.

Deceleration system:
1. Low center of gravity with limited-slip reducer, all metal gears with #45 steel reduction shaft;
2. High-low speed 2 gears switching;
3. RGT EX86130 PRO Runner Equipped with DIG rear axle locking function, which brings a smaller turning radius for the car and have front-wheels drive function.

RGT EX86130 PRO Runner lamp control box with magnet automatic adsorption function is more convenient to assemble and disassemble, which effectively prevents the positive and negative poles from being inserted backwards.


Center of gravity for car:
1. "RGT EX86130 Pro Runner" uses low-center-of-gravity structure in factory, and adopts a weight ratio of 60% for the front wheel and 40% for the rear wheel. Then, the crawler have a larger climbing angle.
2. The weight ratio of the left and right sides is basically balanced, with a larger lean angle.

Other highlights:
1. CNC winch mount, 25KG, 360 degree metal winch servo, winch steel cable can be stretched up to 90CM, supporting the stretching weight up to 15KG.
2. RGT EX86130 PRO Runner front bumper adds stainless steel protective plate, which can be realistic and effectively protect the winch servo.

Suspension and wheels:
1. RGT EX86130 PRO Runner suspension system adopts CNC aluminum alloy twisted hydraulic shock absorber, which brings more convenient damping adjustment.
2. RGT EX86130 PRO Runner wheels are made of butyl rubber, which are 110mm diameter MT tires, coming with two-piece multi-layer 1.9-inch wheel hub for better climbing grip and more realistic.

Electronic Parts:

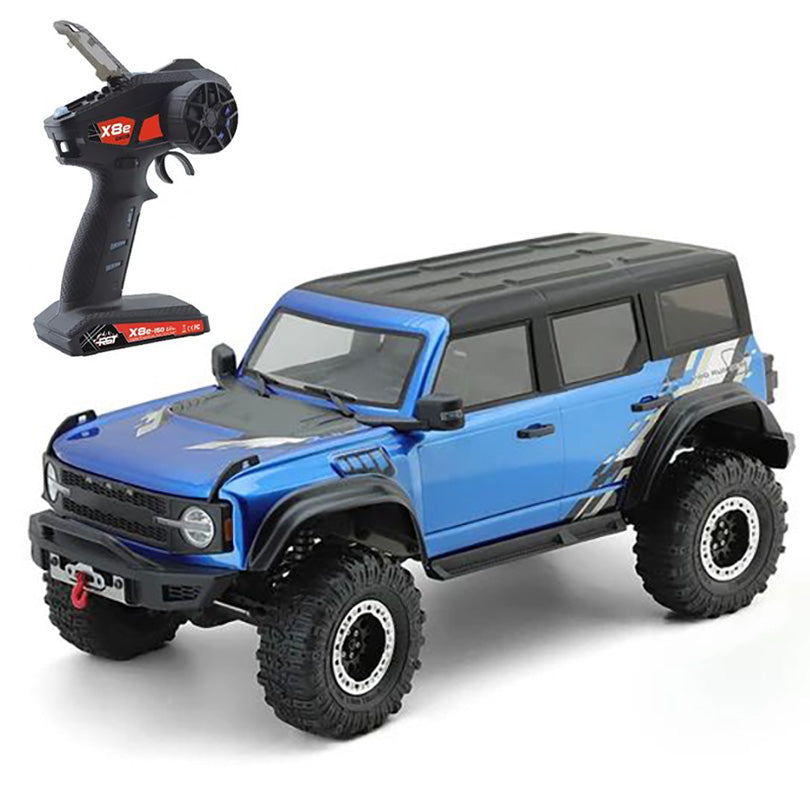

RGT EX86130 PRO Runner will be oriented to players in the form of RTR version, equipped with 35T RC550 super-strong torque motor, "Hobbywing" WP-1060 special waterproof electronic speed controller with metal gear for crawler, 25KG all-metal gear waterproof steering servo, ESC can support 2-3S lithium battery mode, and a 6-channel 2.4G remote controller specially designed for this car.

Light control:
1. RGT EX86130 PRO Runner lamp control box with magnet automatic adsorption function is more convenient to assemble and disassemble, which effectively prevents the positive and negative poles from being inserted backwards.
2. Standard multi-mode lighting effects, including high beam, low beam, turn signal, parking light, reversing light, flashing light, etc.
3. RGT EX86130 PRO Runner colors of car lamps include white light, yellow light and red light.

7.4v 6200mah 30C large capacity lithium battery, special battery for remote control car model（Batteries and chargers are optional）
Size: 13.7*4.6*2.5

80W imax B6AC high-power balance charger multi-functional aircraft model car model lithium battery Ni-MH charger  （Batteries and chargers are optional）
Product name: B6AC charger
Product brand: IMAX
Appearance material: aluminum alloy
Input voltage: 110-220V AC
Rechargeable battery: NICD/NIMH: 1-15CELLS
Rechargeable lithium battery: 1-6 in series
Product size: 135*144*36mm
Product weight: 740g
Maximum power: 80W
Charging current: 0.1-6A
Discharge current: 0.1-2A
Do you need an adapter: No, the product has a built-in adapter
