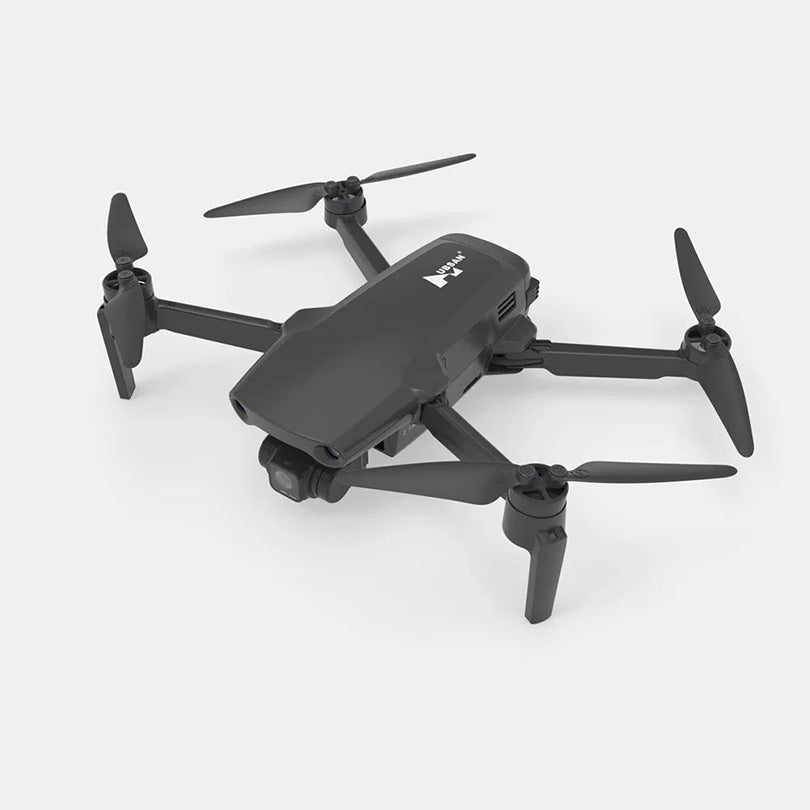

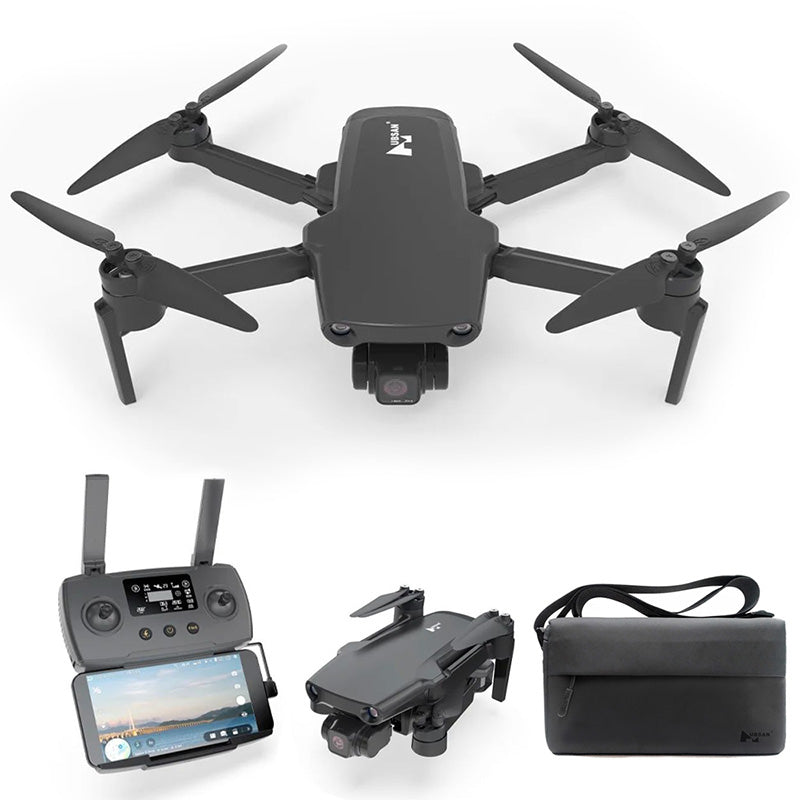

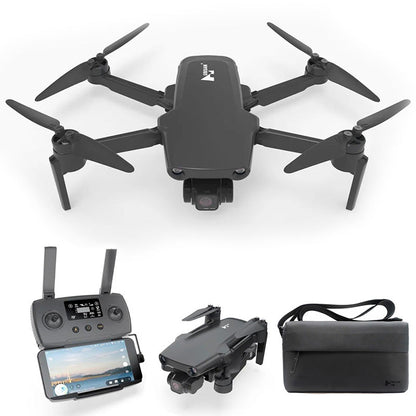

Hubsan MINI 1 4K Drone 16KM image transmission 3-Axis Gimbal Visual Obstacle Avoidance Professional aerial photography Quadcopter

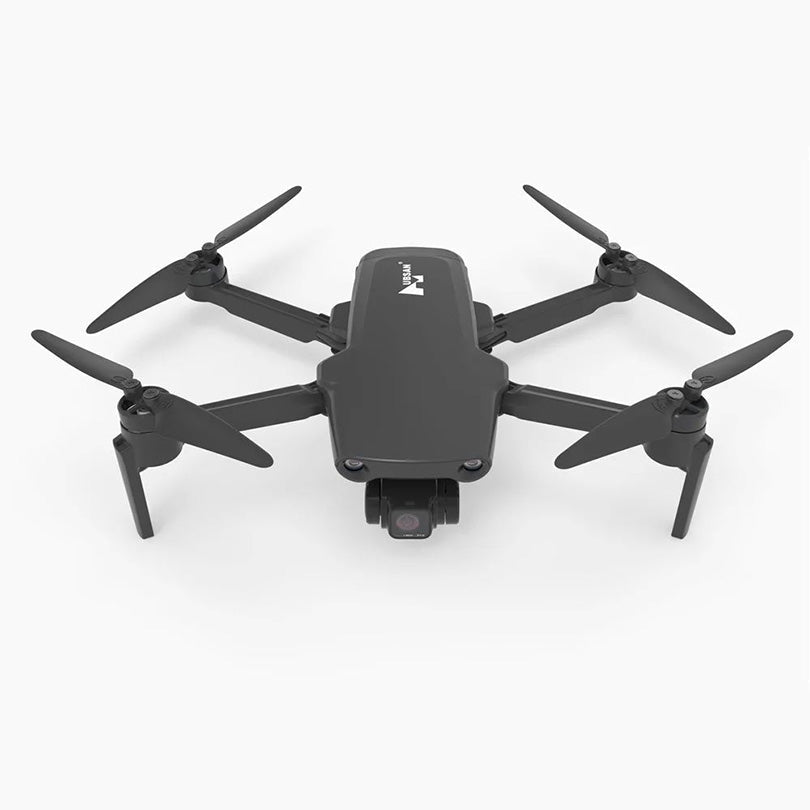

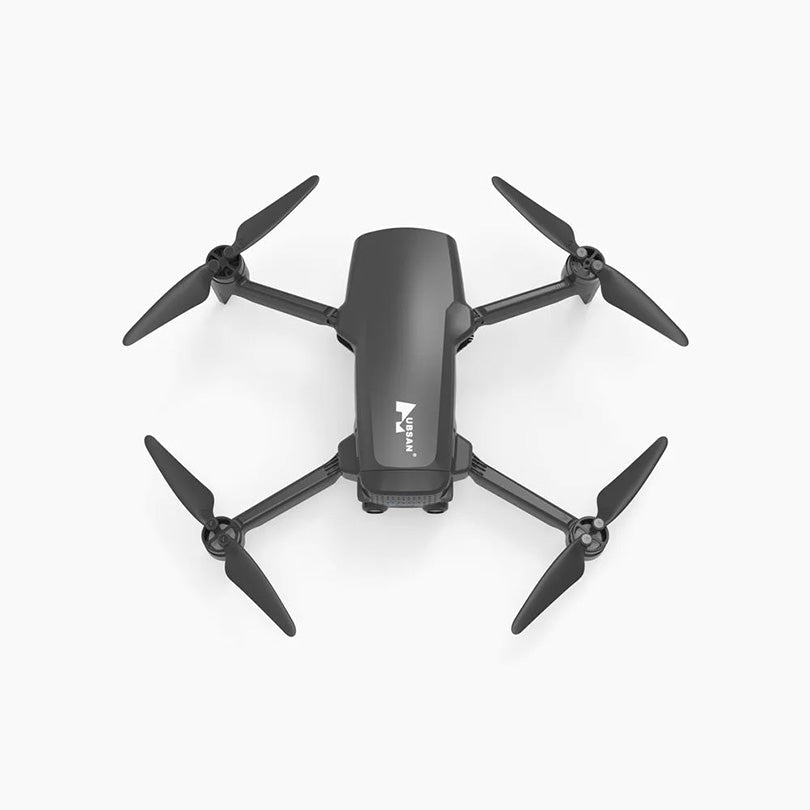

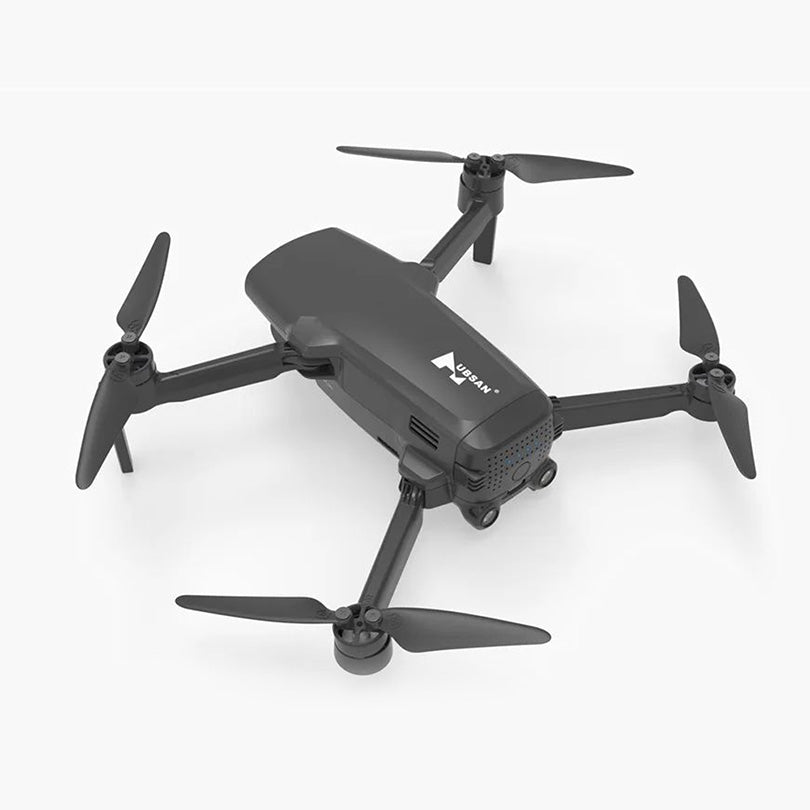

AIRCRAFT:
Color: BLACK
Hubsan MINI 1 Size: Expand: 202.54*161.2*61.6mm; Folding: 137*88*61.6mm; Folding (including blades):137*94*61.6mm
Diagonal wheelbase: 220mm
Maximum current: 16A
Take off weight: 260g
Hover accuracy: Vertical: ±0.1 m (When the visual positioning is working normally), ±0.5 m (When GPS is working normally);
Horizonta: ±0.3 m (When the visual positioning is working normally), ±1.5 m (When GPS is working normally)
Maximum ascending velocity: 3m/s(N); 4m/s(S); 2m/s(F)
Maximum descending velocity: 3m/s(N); 3.5m/s(S); 1.5m/s(F)
Maximum horizontal flight speed: 10m/s(N, No wind at sea level); 16m/s(S, No wind at sea level)
Maximum take-off altitude: 4000 meters
Maximum anti-wind capability: 12m/s
Maximum tilt angle: 40°(s); 25°(N); 15°(F)
Satellite navigation system: GPS/GLONASS/Beidou
Hubsan MINI 1 Duration of flight: Maximum flight time:40 minutes( slow cruise); Hovering Time: 36 minutes(Measured under normal temperature and no windResistance, with video off and hovering at a heightof 2 to 4 meters)

POWER SYSTEM:
Propeller: Model: Folding propeller diameter 125.6mm; Colour: Black
ESC: Digital ESC: Brushless 20A x4

BATTERY:
Category: The third generation ofintelligent lithium battery
Capacity: 3000mAh
Nominal voltage: 3.6x2=7.2V
Charging voltage limitation: 8.4V
Discharge limitation: 8C
Charging time: 90 minutes
Battery weight: 100g
Working temperature: -10°-60°
Charging environment temperature: 0C~40C
Hubsan MINI 1 Smart battery balance: Cell balancing, Intelligent power estimation, Intelligent on-off control, Overcurrent protection, High temperature protection, Overcharge protection, Overdischarge protection, Automatic discharge, Struggling mode
Low battery protection: Support, Turn on the battery after thepoweris less than 1% In order to preventover-discharge, the battery no longer pro-vides external power output
Struggle mode: Support
Electrical resistance monitoring: Support
HBLog: Support
Smart diagnosis: Support
Remote Lock: Support
Online Upgrade: Support
Bulging replacement: Support

CAMERA:
CMOS lmage sensor: 1 inch, 20 million effective pixels
Lens specifications: FOV 85°, Aperture f/1.9, EFL: 6.8mm, Focus point 5m to infinity, Distortion <1.5%
Photo format: JPEG
Maximum photo size: 5472x3648
Hubsan MINI 1 Video resolution: 4K: 3840x2160@30fps, 2.7K: 2720x1530@30/60fps; FHD: 1920x1080@/30/60fps
Video format: MP4(H.265/HEVC)
Video bitrate: 100Mbps
HDR(Dual Native IOS): Support
Hlog: Support
Portrait Mode: Support
Night mode: Support
CPU power management: Support
Hubsan MINI 1 Short video mode: Match the Tiktok’s best resolution, bit rate and compression rate, the length of each video should not exceed 5 minutes
Film storage method: Built-in eMMC 64G
Firmware upgrade: App online upgrade

WIRELESS TRANSMISSION SYSTEM:
lmage transmission solution: SyncLeas 4+
lmage transmission wideband: 20Mbps
lmage transmission delay: Within 200ms
Control delay: Within 40ms
Antenna: Built-in dual antenna
Default controller: HT18MF
EIRP: FCC :<=26dBm;    CE: <=20dBm;    SRRC: <=26dBm
Wireless transmission range: FCC: 16km;  CE:<=11km;  SRRC:<=14km

GIMBAL:
Gimbal model: HY817DR
Hubsan MINI 1 Degree of freedom: Three axis Gimbal
Maximum pitch Speed: 120°/s
Rotation range: Pitch: -111.1°~+45°; Roll:±35°; Yaw: ±35°
Angle jitter of gimbal: ±0.0019

FLIGHT CONTROLLER:
Hubsan MINI 1 Flight controller version: Tourth-generation flight controller
Basic flight mode: Sports mode/Normal mode/Movie mode
Altitude hold: Tof, barometer
Fixed-point function: Vision optical flow, GPS
Unlock/lock: Outer- eight unlock/lock
One-click take-off/landing: APP support, remote control does not support
Out of control protection: Support
Low battery return: Support
Home recognition(Search the drone apron): Support
Vision tracking: Support
Waypoint flight: Support
Flying around: Support
Ray flight: Support
Time-lapse photography: Support
Blockbuster mode: Support
Motor stall protection: Support
Firmware upgrade: App online upgrade

PERCEPTION:
Hubsan MINI 1 Visual perception: The second generation of visual obstacle avoidance algorithm
Home Vl (visual identity)(Search the Apron): Support
Forward: Forward Vision Precision Measurement Range 0.5-12m, Deviation value <0.5m, Detectable Range>15m
Backward: Backward Vision Precision Measurement Range 0.5m-9m, Deviation Value<0.5m, Detectable Range>12m
Downward: Downward Vision, Tof Precision Measurement range: 0.3-5m, Deviation value<0.lm
Vision Tracking: Third-Generation Tracking Technology

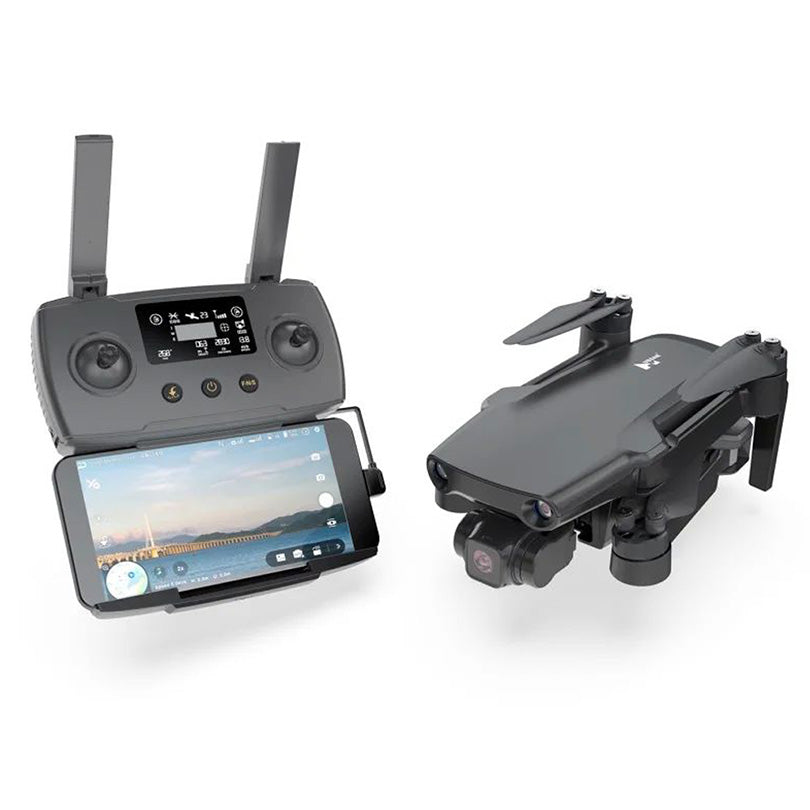

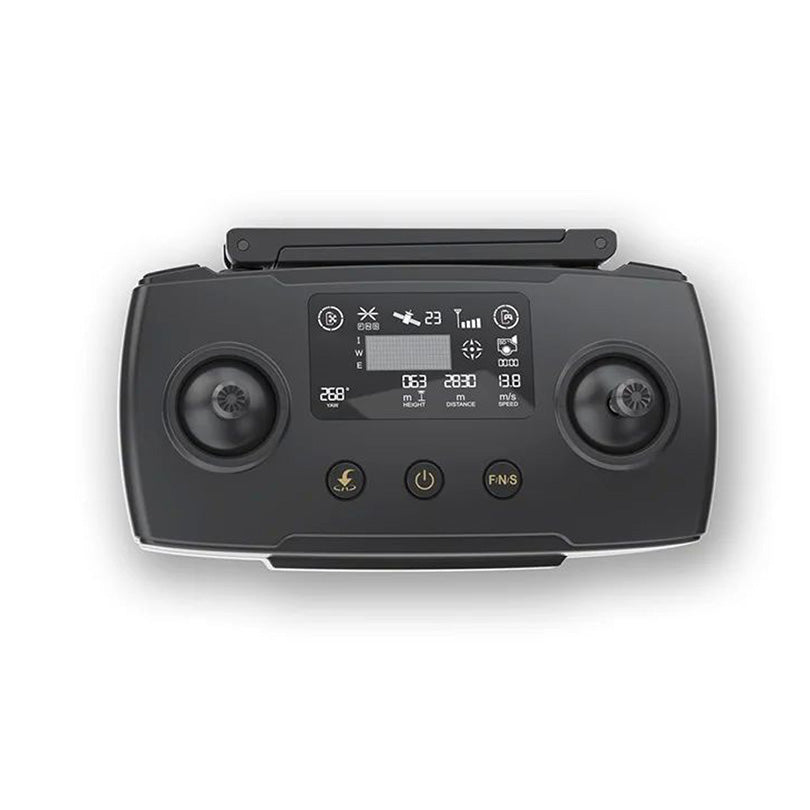

REMOTE CONTROLLER:
Image transmission solution: Syncleas 4 +
LED Display: Support
Working environment temperature: -5°-50°
Effective range: FCC: 16km; CE:<=11km; SRRC:<=14km
EIRP: FCC:<=26dbm; CE:<=20dBm; SRRC:<=26dbm
Built in battery: 5000mAh
Buzzer: Support
Working time: 2.5h(Normal flight time)
Rocker return to center accuracy: 4%
Supportable Interface Types: Lighting, MicroUSB, USB-C
4G: Support built-in 4G

APP:
APP: Hubsan 3.0
Mobile device: l0S 10.0 or higher; Android 6.0 or higher
